Architectural Quality Magnetic Tubular Mortice Latch - Polished Stainless Steel

Catalogue Number:
40904
  • Magnetic tubular latches are the ultimate latch for those looking for a minimum, clean look for internal doors and frames.
  • This unique range of mortice latches have a black plastic latch bolt which conceals a small powerful magnet.
  • Fitted within the door frame behind the metal strike plate is a black plastic dust box which contains another magnet with the opposite pole.
  • When the door is in the open position the latch bolt is hidden within the door creating a sleek minimalist look.
  • Upon closing the door within the frame the two magnets become attracted to one another, withdrawing the bolt from the latch case and pulling it into the frame mounted strike plate, thus keeping the door held closed and shut.
  • To open the door again any door handle can be used, when the lever is pulled downwards the latch is pulled away from the strike plate. Another magnet located in the back of the latch holds the latch bolt within the case.
  • No more noisy metal latches scraping against metal strike plates.
  • When fitted to brand new doors and frames this magnetic latch produces a very minimal look and is great for those with young children as nothing sticks out from the door or door frame making it a great safety device as well.
  • Supplied with polished stainless steel (shiny finish) plates
Full Description Related Products
Product Name Price Qty
40904.2 - Magnetic Tubular Mortice Latch - 76mm Case Depth (57mm Backset) - Polished Stainless Steel
£8.83 £7.36

Per Each
Out of stock
  • Heavy duty magnetic tubular latches.
  • Architectural finish - shiny polished stainless steel forend and strike plates ideal for use with polished chrome, polished nickel and shiny stainless steel door handles.
  • Supplied with magnetic black back box for fitting behind the strike plate in the door frame.
  • Fire tested to BS EN 1634-1 when used with the 0.8mm 40897.2 intumescent liner (see related products).
  • Heavy duty latch ideal for use with door handles fitted in residential, commercial and public buildings.
  • Case depth 76mm, backsets 57mm.
  • Bolt through fixing holes at 38mm apart, allows the magnetic latch to work in conjunction with bolt through round rose door handles.




Operation

  • Black plastic latch bolt is automatically engaged when the door is closed.
  • Latch bolt is withdrawn via a door handle from either side of the door (handles sold separately).


Features

  • Stainless steel latch pinion rollers for long life, friction free operation.
  • Heavy sprung follower tested to more than 1 million operating cycles.
  • Heavy weight springing suitable for use with sprung or un-sprung door handles.
  • Black plastic magnetic latch bolt.
  • Bolt through facility for bolt together fixing lever handles and accessories at 38mm centres.
  • 8mm x 8mm spindle follower (to suit standard UK size spindles).
  • Reversible frame mounted strike plate.
  • Supplied with magnetic black back box for fitting behind the strike plate in the door frame.
  • Suitable for use on internal doors in residential properties.
  • Can be retro fitted into existing 3 inch (76mm) TLS mortice latch cut out.


Strike Plates

  • Supplied with square shape non-lipped strikes plates for fitting into new doors and frames. No tongues on the strike plate allow for a sleek contemporary look, with nothing projection from the frame.


Finish

  • Polished stainless steel - (shiny finish).



Alternative Finishes Available

  • Satin stainless steel
  • PVD brass
  • Florentine bronze


Dimensions

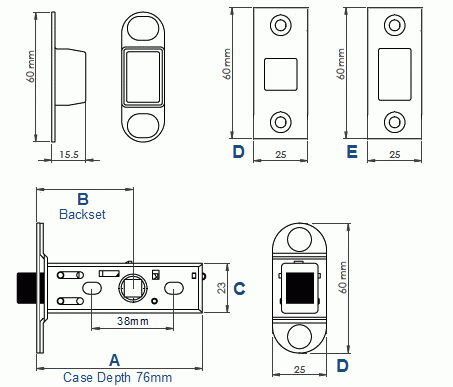

Diagram and dimensions of the Eurospec TLM5030 magnetic tubular mortice latch






  • 40904.2 - 76mm case depth with 57mm backset (distance to the centre of the spindle hole).

  40904.2
Dimension On Diagram
Overall Case Depth
76mm
A
Backset (Distance To Centre Of Spindle Hole)
57mm
B
Case Height
23mm
C
Forend - Height (H) x Width (W)
60mm x 25mm
D
Strike Plate - Height (H) x Width (W)
65mm x 25mm
E

Options Available To Order

  • Intumescent sheets and lock case liners are available. Please see related products and our intumescent fire rated products category for details.


Rebate Kit For Double Rebated Doors

  • 23018.1 - 13mm polished stainless steel wrap round design rebate kit for use with the heavy duty tubular latches.


Unit Of Sale

  • Each - (1 x magnetic latch supplied with forend and strike plate and magnetic black back box liner).
More Information
Item 40904
Item Code 40904
Finish Polished Stainless Steel
Dimensions 76mm Case Depth - (45mm or 57mm Backset)
Sold Per Each
Availability Stock item - please allow 1-3 days for delivery
Stock item - please allow 1-3 days for delivery
Download PDF Data Sheet
