160 Degree Overlay Hinge for 32mm Thick Doors

160 Degree Overlay Cupboard Hinge Features

• High-quality concealed Blum-style full-overlay kitchen cabinet hinge with a 160-degree opening angle.
• Built-in soft-close mechanism and 3-way adjustable clip on mounting plate.
• This blum hinge adjustment is for use with cupboard doors that overlay the carcass only. (Overlay doors sit on top of the cupboard door frame.)
• High-quality "clip-on" design with built-in soft-closing device. No more slamming cupboard doors, just a gentle push, and the cabinet door will self-close to a controlled, soft stop.
• 3-way adjustability: the cupboard door can be adjusted vertically (moving the door up and down), horizontally (moving the door side to side), and in and out (pushing the door from or towards the carcass)
• Sprung hinge - keeps the door held closed, no need for any kind of cupboard catch.
• Standard 35mm diameter cup with a 155 degree opening angle
• Comes supplied with an adjustable clip-on mounting plate.

Suitable For Use On Overlay Style Doors Only

• Overlay hinge suitable for doors that sit on top of the cabinet carcass.

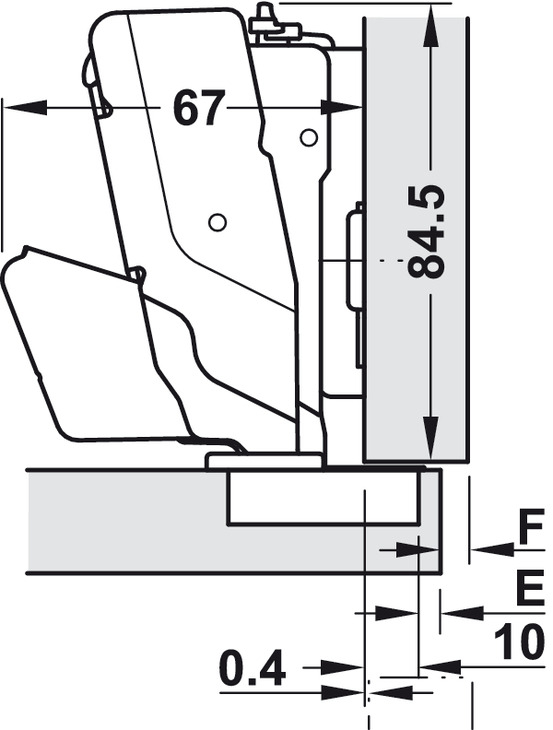

• Below diagram shows how an overlay hinge is fitted. - (Notice how the door sits in front of the cupboard frame.)



• Suitable only for doors that overlay the cabinet carcass - (see below diagram)

Clip On Design

• This hinge comes supplied with an adjustable clip on mounting plate, which allows the door to be fully adjusted and then quickly removed by simply pushing a small button at the very tip of the hinge.

• Below diagram shows how the concealed blum style hinge clips on and off from the mounting plate.

Base Material

• Made from steel.

Finish Details

• Bright zinc plated.

3 Way Adjustable Hinge

• This overlay hinge can be adjusted in 3 directions. - (see diagram below.)
• Lateral adjustment - turning the screw nearest to the cup allows the door to move side to side, with a total movement of 5mm possible.
• Front-to-back adjustment: turning the screw at the hinge tip adjusts the door toward or away from the carcass, with a total movement of 3.5mm possible.
• Vertical adjustment - turning the cam-operated screw on the mounting plate raises or lowers the door's height, with a total movement of 4mm.

Size Details

• Standard 35mm diameter cup. (Hole diameter required to be drilled into the door.)

• 155 Degree opening angle.

Unit Of Sale

• The 155° overlay concealed blum style cabinet hinge is sold individually. - (Each)

• Supplied with adjustable clip on mounting plate and  screws to suit 18mm thick door and carcass.
