Sash Stops - Sliding Sash Windows Locks - Satin Brass - Pack Of 2

Catalogue Number:
49126
Full Description Related Products
Product Name Price Qty
49126.1 - 16mm Sash Stops - Sliding Sash Windows Locks - Satin Brass (Lacquered) - Pack Of 2
£15.96 £13.30

Per Pair
Enquire Now

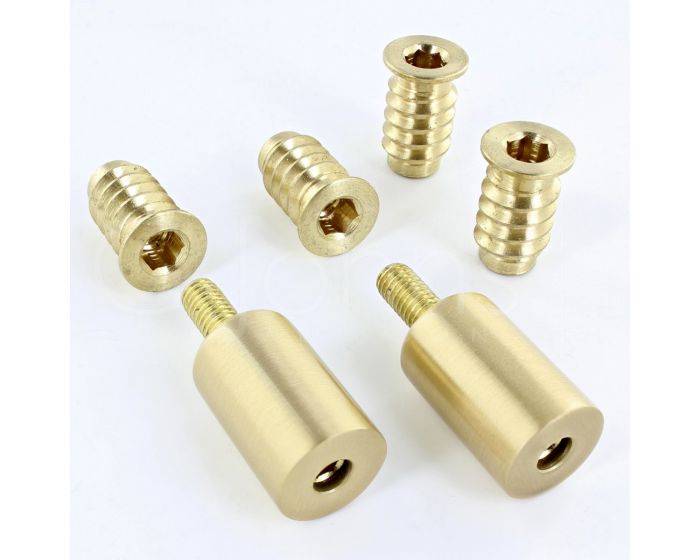

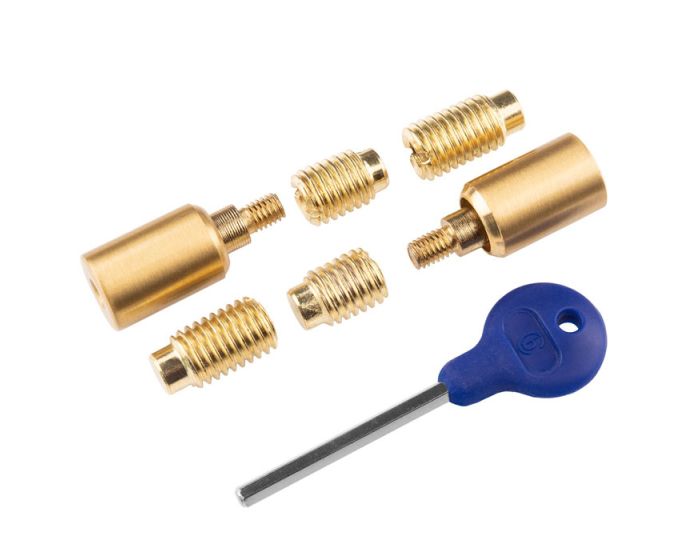

  • Sliding sash window stop locks
  • Pack of two stops supplied with four inserts
  • Key sold separately - 40809
  • Ideal for meeting insurance requirements for locking sliding sash windows
  • Two inserts provided per stop allows the sash window to be locked in the closed or in the open position
  • The threaded stops are screwed into inserts located in the top sash by use of key, this prevents ("stops") the sashes passing each other, hence the window is locked and can not be opened
  • The sash stops can only be locked and unlocked via the use of the 40809 - sold separately

Size Details

  • Ferrule - 10mm x 22 mm
  • Security Stud - 26mm length
  • Countersink - 15mm x 4 mm

Base Material

  • Made from solid brass

Finish Details

  • Satin Brass

Fixings

  • Each stop comes supplied with two inserts to screw into.
  • Sash window can be locked in the closed position by screwing the sash stop into insert 1 (see below diagram)
 Diagram showing a sliding sash window in closed position locked via a sash stop



  • The sliding sash window can be locked in the open position for ventilation, by screwing the sash stop into insert 2 (see below diagram)
 Diagram showing a sliding sash window in the open position for ventilation, locked via a sash stop

Usage

  • Suitable for use with wooden sliding sash windows.
  • The inserts are fitted into the side rail of the top sash

Unit Of Sale

  • Sold per pair - (A pair includes 2 x sash stops 4 x inserts)
  • Keys sold separately - 40809
More Information
Item 49126
Item Code 49126
Finish Satin Brass
Dimensions 26mm Length Stop
Sold Per Pair
Availability Stock Item - 3-7 Days

Non stock product - please allow 3-7 days for delivery

Download PDF Data Sheet
