For use on doors that require door handles and need to be locked via a standard "chubb" style key.
Must be used in conjunction with some form of door handle.

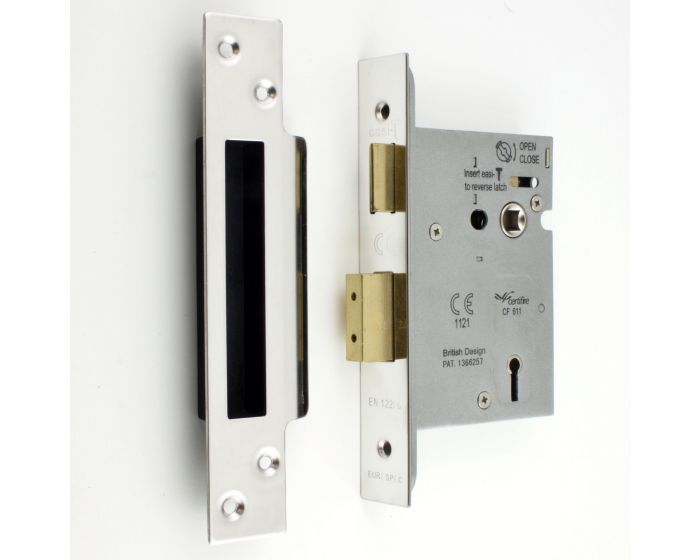

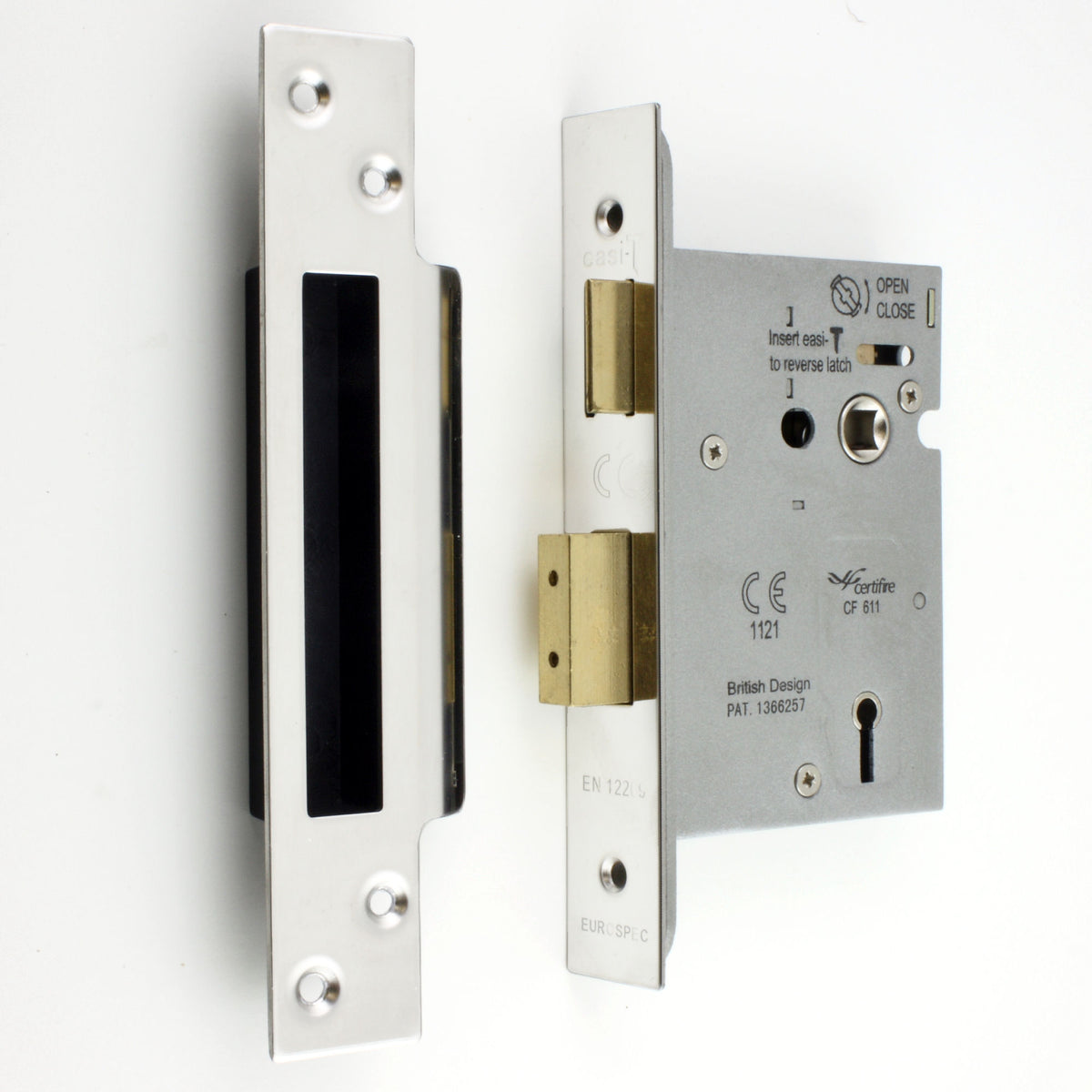

Comes supplied with a polished stainless steel (shiny finish) forend and frame mounted strike plate including black plastic back box.
Operation
Latch is withdrawn via a lever handle from either side of the door (handles sold separately).
Deadbolt is locked and un-locked via the supplied cut keys.
Key differed - if ordering more than one lock each lock will come with different keys. (Please contact us if you would like multiple locks under the same key).
Features
Solid brass guided latch.
Solid brass deadbolt with anti-saw rollers.
Medium to heavy weight springing.
Adjustable spring strength, ideal for use with sprung or un-sprung lever furniture. (Spring strength can be adjusted by simply removing a screw on the edge of the lock case).
Bolt through facility for bolt together fixing lever handles and accessories at 38mm centres.
8mm x 8mm spindle follower (to suit standard UK size spindles).
Patented Easi-T latch reversal mechanism - the latch can be reversed on site without taking the lock case apart.
Reversible and adjustable strike plate.
Security Level
Medium security architectural range.
Suitable for use on internal doors in residential, commercial or public buildings.
3 lever cut keys made from solid brass.
Finish
Polished stainless steel - (shiny finish ideal for matching with polished stainless steel, polished nickel or polished chrome products).
Alternative Finishes Available
Satin stainless steel.
PVD Brass
Florentine bronze.
Dimensions
Available in two sizes
64mm case depth (44mm backset).
76mm case depth (57mm backset).
Item Code
Lock Case Depth (A)
Backset To Keyhole (B)
LSS5325/FSF5004BSS
64mm
44mm
LSS5330/FSF5004BSS
76mm
57mm
Standards This Product Conforms To
Lock case tested and passed to BS EN 12209. The British / European standard requirements and test methods covering locks and latches. Classification number - 2H810F2KD2A.
Tested and passed to BS EN 1634 the British / European standard for determining the fire resistance of door and shutter assemblies including hardware. Assessed for use on 30 minute and 1 hour timber fire doors FD30 / FD60.- Intumescent lock case liners required (sold separately).
Certifire approved.
CE Marked / UKCA Marked.
Declaration of performance (DoP) - please see the additional information tab to download the certificate.
Options Available To Order
Keyed alike - (please contact us if you would like a number of looks to operate under one key).
This lock is also available to order with radius (rounded shape) forend and strike plates. Please contact us for lead times and prices.
Intumescent sheets and lock case liners are available. Please see our intumescent fire rated products category for details.
Rebate Kit For Double Rebated Doors
23015.1 - 13mm satin stainless steel rebate kit for use with Eurospec architectural sash locks.
Please note the above rebate kit is a satin (brushed) finish.
Unit Of Sale

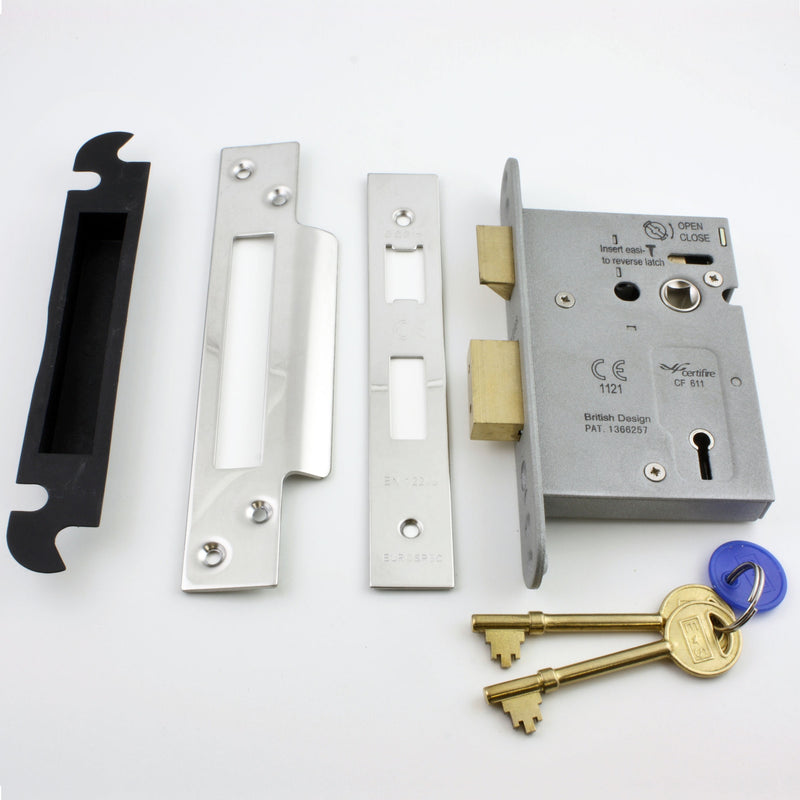

Each - (1 x lock case supplied with forend, strike plate, plastic back box and 2 keys).
