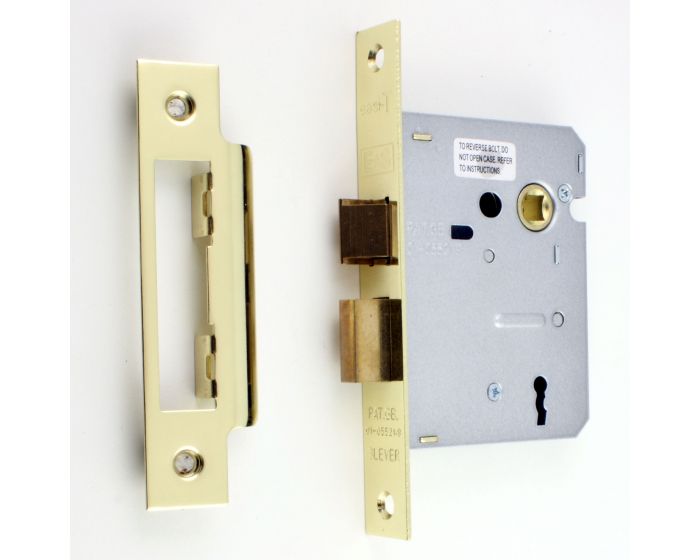

3 Lever Economy Mortice Sash Lock - CE / UKCA Marked - Fire Rated - Certifire Approved - Polished Brass Plated

Catalogue Number:
15295
Full Description Related Products
Product Name Price Qty
15295.1 - 3 Lever Economy Mortice Sash Lock - CE / UKCA Marked - Fire Rated - Certifire Approved - 64mm Case Depth (44mm Backset) - Polished Brass Plated
£9.59 £7.99

Per Each
15295.2 - 3 Lever Economy Mortice Sash Lock - CE / UKCA Marked - Fire Rated - Certifire Approved - 76mm Case Depth (57mm Backset) - Polished Brass Plated
£9.59 £7.99

Per Each
Enquire Now
  • Economy polished brass plated 3 lever sash lock
  • Basic style 3 lever cut keys - low level security.
  • For use on doors that require door handles and need to be locked via a standard "chubb" style key.
  • Must be used in conjunction with some form of door handle.
  • Comes supplied with a brass plated (shiny finish) forend and frame mounted strike plate.

Operation

  • Latch is withdrawn via a lever handle from either side of the door (handles sold separately).
  • Deadbolt is locked and un-locked via the supplied cut keys.

Features

  • Solid brass deadbolt and latch.
  • Medium weight spring strength ideal for use with sprung lever furniture.
  • Bolt through facility for bolt together fixing lever handles and accessories at 38mm centres.
  • 8mm x 8mm spindle follower (to suit standard UK size spindles).
  • Patented Easy turn latch reversal mechanism. - Latch can be reversed on site without taking the lock case apart.
  • Reversible and adjustable strike plate.



Security Level

  • Low security economy range.
  • Suitable for use on internal doors in residential properties.
  • Basic 3 lever cut key.

Finish

  • Brass plated - (shiny finish ideal for matching with polished brass and PVD brass products).



Alternative Finishes Available

  • Nickel plated.

Dimensions

  • Available in two sizes
  • 64mm case depth (44mm backset).
  • 76mm case depth (57mm backset).


dimensions of the Eurospec E*S 3 lever economy sash lock


Item CodeLock Case Depth (A)Backset To Keyhole (B)
15295.1 64mm 44mm
15295.2 76mm 57mm

Standards This Product Conforms To

  • Lock case tested and passed to BS EN 12209. The British / European standard requirements and test methods covering locks and latches. Classification number - 2H810F1KD2A.
  • Tested and passed to BS EN 1634 the British / European standard for determining the fire resistance of door and shutter assemblies including hardware. Assessed for use on 30 minute and 1 hour timber fire doors FD30 / FD60.- Intumescent lock case liners required (sold separately).
  • Certifire approved.
  • CE Marked / UKCA Marked.
  • Declaration of performance (DoP) - please see the additional information tab to download the certificate.

Options Available To Order

  • This lock is also available to order with radius (rounded shape) forend and strike plates. Please contact us for lead times and prices.
  • Intumescent sheets and lock case liners are available. Please see our intumescent fire rated products category for more details.



Rebate Kit For Double Rebated Doors

  • 23012.1 - 13mm brass plated rebate kit.


Unit Of Sale

  • Each - (1 x lock case supplied with forend, strike plate and 2 keys).
More Information
Item 15295
Item Code 15295
Finish Polished Brass Plated
Dimensions 64mm or 76mm Case Depth
Fire Rated FD30 / FD60 - Fire Rated
Sold Per Each
Availability Stock item - please allow 1-3 days for delivery
Stock item - please allow 1-3 days for delivery
Download PDF Data Sheet
