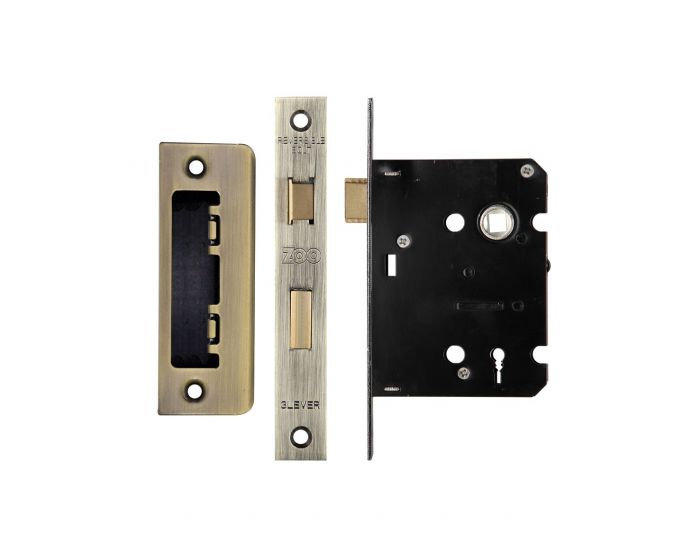

3 Lever Economy Mortice Sash Lock - CE / UKCA Marked - Fire Rated - Antique Brass

Catalogue Number:
30050
Full Description Related Products
Product Name Price Qty
30050.1 - 3 Lever Economy Mortice Sash Lock - Fire Rated - CE / UKCA Marked - 64mm Case Depth (44mm Backset) - Antique Brass
£9.73 £8.11

Per Each
30050.2 - 3 Lever Economy Mortice Sash Lock - Fire Rated - CE / UKCA Marked - 76mm Case Depth (57mm Backset) - Antique Brass
£9.73 £8.11

Per Each
Enquire Now
  • Easy turn mortice sash lock.
  • Basic style 3 lever cut keys - low level security.
  • For use on doors that require door handles and need to be locked via a standard "chubb" style key.
  • Must be used in conjunction with some form of door handle.
  • Comes supplied with a Florentine bronze (antique finish) forend and frame mounted strike plate.

Operation

  • Latch is withdrawn via a lever handle from either side of the door (handles sold separately).
  • Deadbolt is locked and un-locked via the supplied cut keys.

Features

  • Solid brass deadbolt and latch.
  • Medium weight spring strength ideal for use with sprung lever furniture.
  • Bolt through facility for bolt together fixing lever handles and accessories at 38mm centres.
  • 8mm x 8mm spindle follower (to suit standard UK size spindles).
  • Patented Easy turn latch reversal mechanism. - Latch can be reversed on site without taking the lock case apart.
  • Reversible and adjustable strike plate.



Security Level

  • Low security economy range.
  • Suitable for use on internal doors in residential properties.
  • Basic 2 lever cut key.

Finish

  • Florentine bronze - (antique finish ideal for matching with bronze, and antique brass finish products).



Alternative Finishes Available

  • Brass plated.
  • Nickel plated.

Dimensions

  • Available in one size only
  • 76mm case depth with 57mm backset.

dimensions of the Eurospec E*S 3 lever economy sash lock


Item CodeLock Case Depth (A)Backset To Keyhole (B)
30050.1 64mm 44mm
30050.2 76mm 57mm

Standards This Product Conforms To

  • Lock case tested and passed to BS EN 12209. The British / European standard requirements and test methods covering locks and latches. Classification number - 2H810F1KD2A.
  • Tested and passed to BS EN 1634 the British / European standard for determining the fire resistance of door and shutter assemblies including hardware. Assessed for use on 30 minute and 1 hour timber fire doors FD30 / FD60.- Intumescent lock case liners required (sold separately).
  • Certifire approved.
  • CE Marked / UKCA Marked.
  • Declaration of performance (DoP) - please see the additional information tab to download the certificate.

Options Available To Order

  • This lock is also available to order with radius (rounded shape) forend and strike plates. Please contact us for lead times and prices.
  • Intumescent sheets and lock case liners are available. Please see our intumescent fire rated products category.



Rebate Kit For Double Rebated Doors

  • Not available in a Florentine bronze finish.


Unit Of Sale

  • Each - (1 x lock case supplied with forend, strike plate and 2 keys).
More Information
Item 30050
Item Code 30050
Finish Antique Brass
Dimensions 76mm Case Depth
Sold Per Each
Availability Stock item - please allow 1-3 days for delivery
Stock item - please allow 1-3 days for delivery
Download PDF Data Sheet
