3 Lever Horizontal Mortice Sash Lock - 127mm or 152mm Deep Case - Antique Brass

Catalogue Number:

43421

Full Description

Product Name Price Qty

43421.1 - Horizontal Mortice Sash Lock - Antique Brass - 127mm Case Depth (101mm Backset) - Each

£48.05 £40.04

Per Each

43421.2 - Horizontal Mortice Sash Lock - Antique Brass - 152mm Case Depth (127mm Backset) - Each

£48.05 £40.04

Per Each

Enquire Now

Description

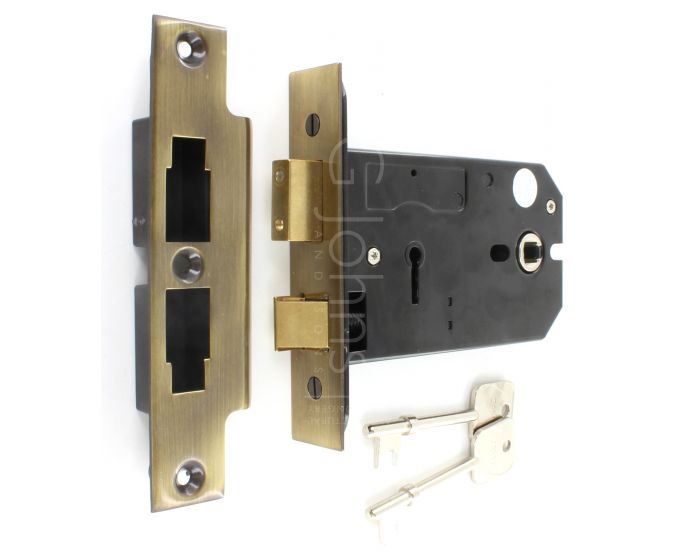

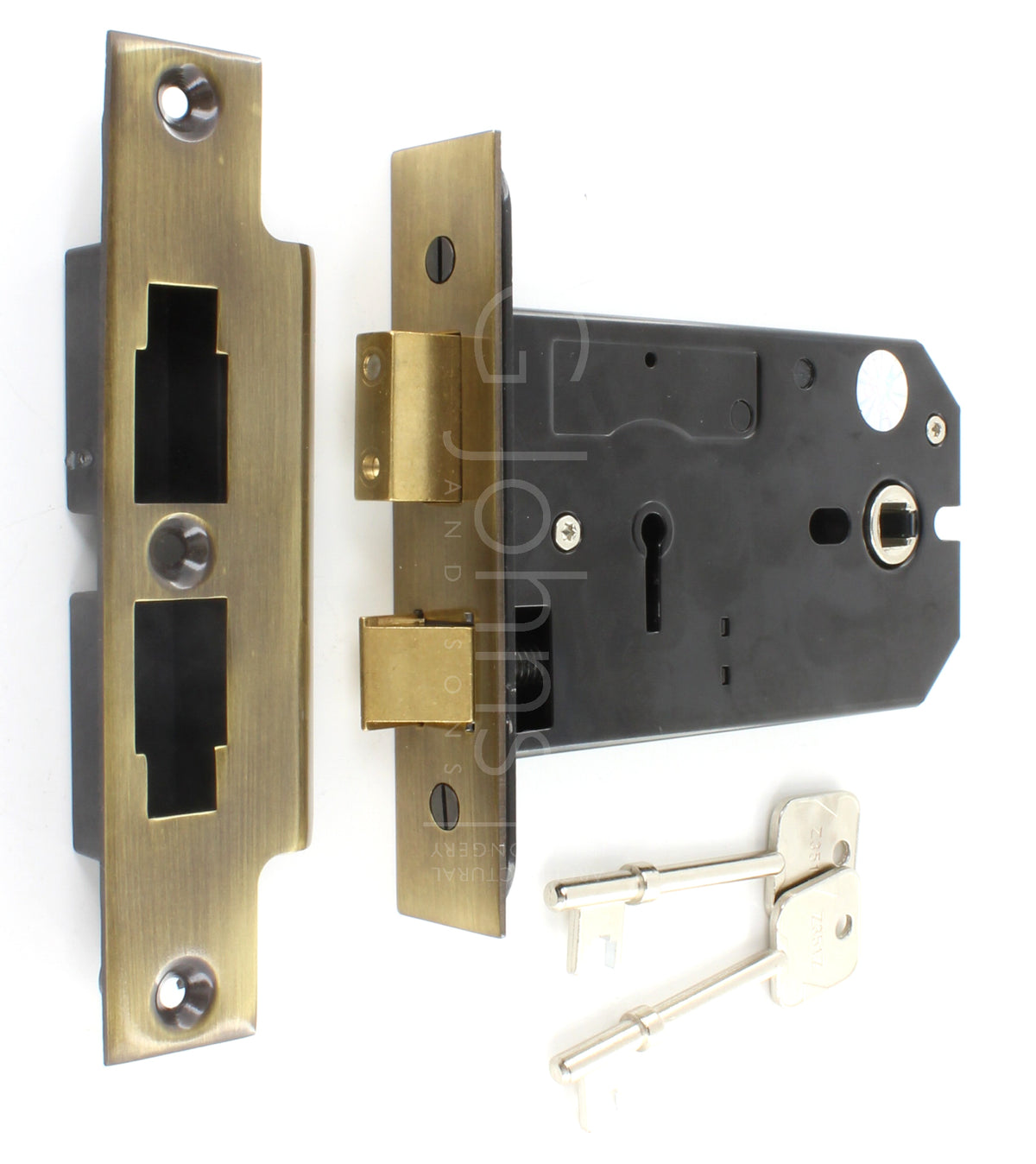

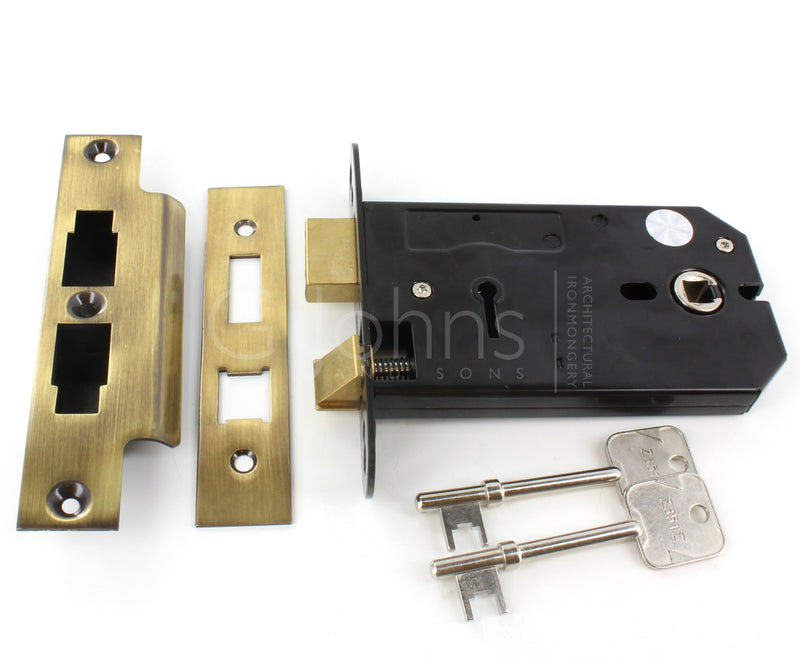

3 Lever horizontal mortice sash lock

Supplied with Florentine bronze (antique brass finish) forend and strike plates

Large style lock case available in two sizes - 127mm (5 inches) or 152mm (6 inches) deep.

Traditional horizontal style is ideal for mortice knobs as it places the knobs far away from the door frame.

Horizontal locks were a traditional lock often found in period properties.

Key hole is located to the side of door knobs rather than underneath.

Key operated dead bolt.

Bolt through lock (38mm bolt holes) to suit bolt together handles and mortice knobs.

Operation

Latch is withdrawn via a mortice door knob or lever handle from either side of the door (handles sold separately).

Two way action allows un-sprung door knobs to be turned either way to withdraw the latch mechanism and open the door.

Deadbolt is locked and un-locked via the supplied cut keys.

Key differed - if ordering more than one lock each lock will come with different keys. (Please contact us if you would like multiple locks under the same key).

Features

Light to medium weight springing makes this lock ideal for use with door knobs.

Two way action allows door knobs to be turned in both directions.

Solid brass guided latch.

Solid brass deadbolt with anti-saw rollers.

Bolt through facility for bolt together fixing lever handles and accessories at 38mm centres.

8mm x 8mm spindle follower (to suit standard UK size spindles).

Latch can be reversed on site without taking the lock case apart.

Supplied with 2 keys.

Reversible frame mounted strike plate.

Security Level

Medium security architectural range.

Suitable for use on internal doors in residential or light commercial buildings.

3 lever cut keys made from zinc alloy..

Finish

Florentine bronze - (antique brass finish).

Alternative Finishes Available

Satin stainless steel.

Polished stainless steel.

PVD brass.

Dimensions

Available in two sizes

43421.1 - 127mm (5 inch)
43421.2 - 152mm (6 inch)

	43421.1	43421.2	Dimension On Diagram
Overall Case Depth	127mm	152mm	A
Backset (Distance To Centre Of Spindle Hole)	101mm	127mm	B
Backset (Distance To Centre Of Key Hole)	38mm	50mm	C
Case Height	70mm	70mm	D
Forend - Height x Width	120mm x 25mm	120mm x 25mm	E
Strike Plate - Height x Width	140mm x 25mm	140mm x 25mm	F
