Satin Stainless Steel Disabled Toilet Handle & Lock Set

Accessible Toilet Handle & Lock Set Features

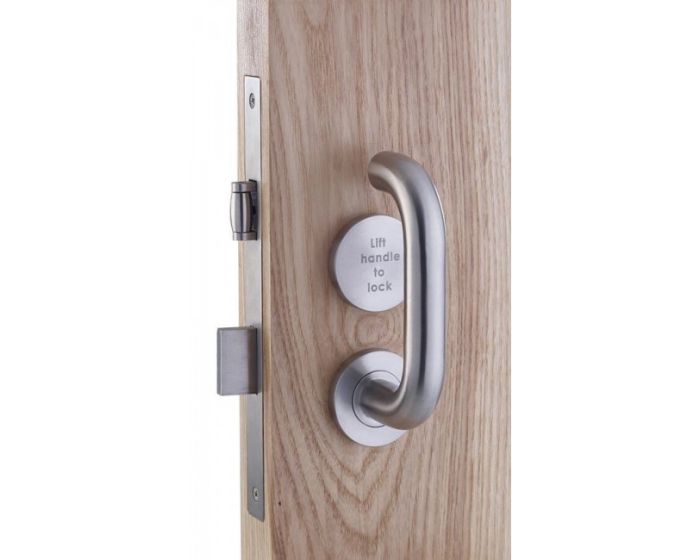

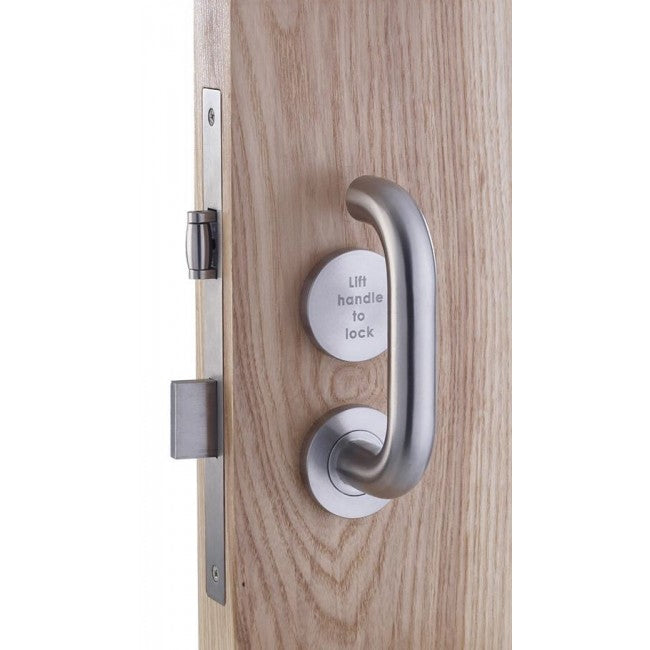

• This disabled toilet lock comes in a complete set (as shown in the photographs)
• Designed to comply with Approved Doc M, DDA & BS8300

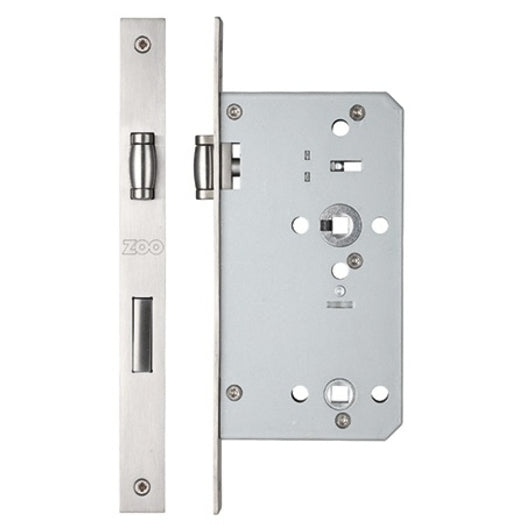

• Lock Case Satin stainless steel forend & strike plate with a Roller bolt latch (less likely to cause injuries or damage to clothing than a standard latch bolt)
• The handle in this accessible toilet handle set is made from grade 304 stainless steel with a satin finish (brushed finish)
• Each toilet door handle has a separate deadbolt with 78mm centres and 60mm backset
• Furniture 19mm diameter stainless steel levers
• Lettering black letters on a stainless steel background "lift handle to lock"

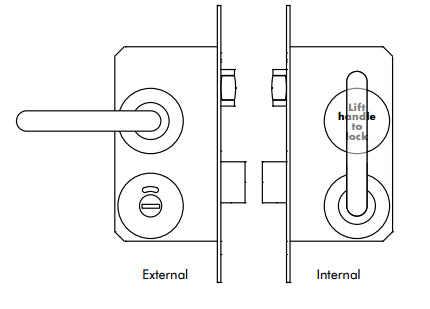

External Access:

• The roller latch bolt of the toilet door handle is operated externally with one-half of the unsprung lever set; this releases the roller latch bolt as usual.
• Underneath the lever is the release & indicator; this operates in the same manner as bathroom-type coin releases

Internal Access:

• The internal side of the lever set will be configured such that the latch bolt is blanked off with an engraved covered escutcheon
• The deadbolt features a second lever handle, and by throwing the handle up extends the deadbolt & locks the door
• By turning the handle down the deadbolt is withdrawn, further downward action of the lever withdraws the roller latch bolt, allowing exit

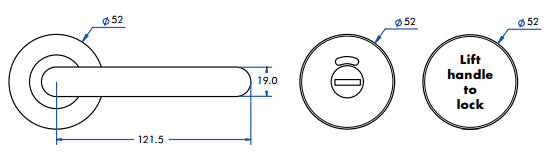

Lever Handle Dimensions

• 52mm diameter rose
• 121.5mm lever length
• 19mm diameter return to the door handle
• Disabled door handle includes bathroom indicator and lift-to-lock sign - 52mm diameter

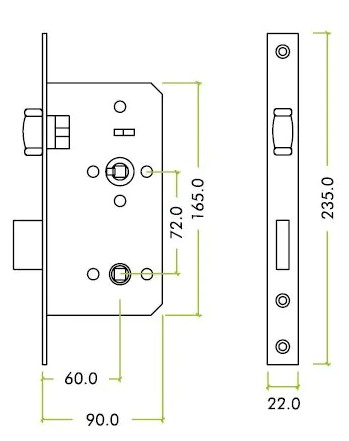

Roller Ball Lock Case Dimensions:

Includes:

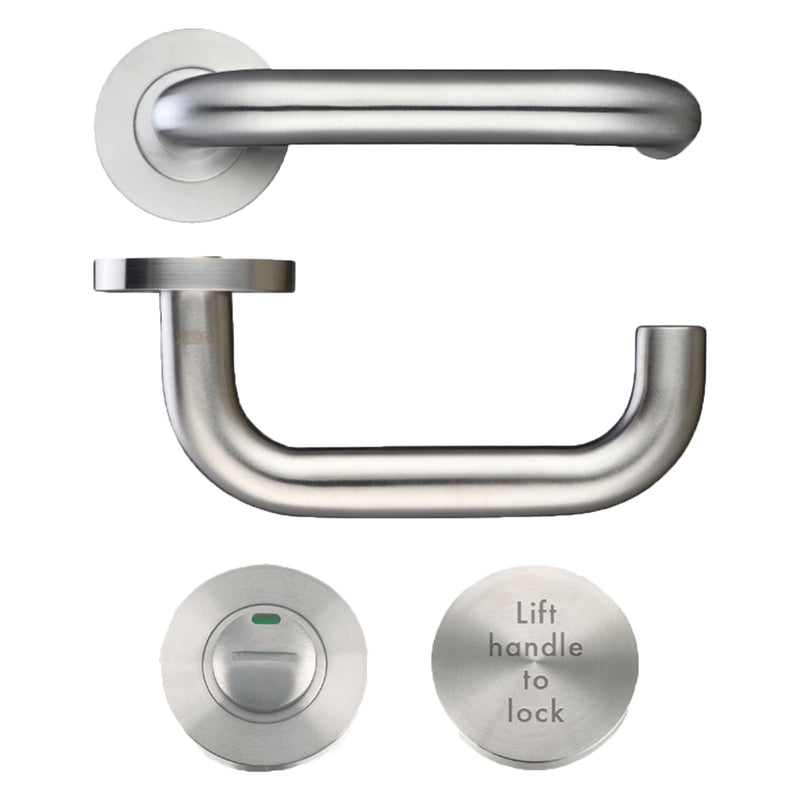

• 2 x Satin stainless steel lever handles (unsprung)
• 2 x 8mm spindles
• 1 x Satin stainless steel release indicator
• 1 x Satin stainless steel - "Lift Handle To Lock€ escutcheon and sign
