Fire tested to BS EN 1634-1 suitable for use on 30 minute and 60 minute FD30 and FD 60 fire doors.
Tested to BS EN 12209-2003 the standard for mechanical locks and latches.
Supplied with black back box for fitting behind the strike plate in the door frame.

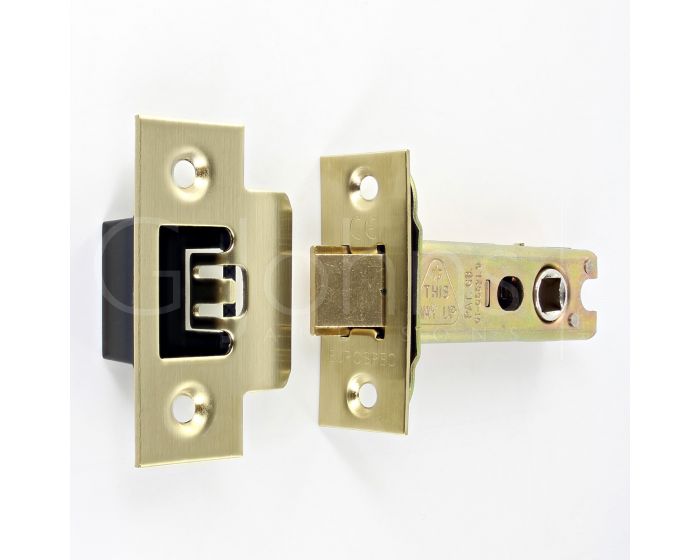

Heavy duty latch ideal for use with door handles fitted in residential, commercial and public buildings.
Bolt through fixing holes at 38mm apart on the 76mm latch only - allows this latch to work in conjunction with bolt through round rose door handles.
This latch has a heavy weight spring making it ideal for use with sprung or un-sprung door handles.
Operation
Latch is withdrawn via a door handle from either side of the door (handles sold separately).
Features
Double sprung - heavy weight springing with lightly sprung latch bolt (allows the door to latch into place with little friction).
Solid brass guided latch.
Bolt through facility for bolt together fixing lever handles and accessories at 38mm centres - (please not the 64mm latch does not have bolt through holes).
8mm x 8mm spindle follower (to suit standard UK size spindles).
Latch can be reversed on site by twisting the latch through 180 degrees.
Reversible frame mounted strike plate.
Supplied with black back box for fitting behind the strike plate in the door frame.
Suitable for use on internal doors in residential, commercial or public buildings.
Finish
Satin Brass
Dimensions
Available in four different sizes
Available in four sizes
64mm case depth (44mm backset) NOTE THIS LATCH DOES NOT HAVE BOLT HOLES
76mm case depth (57mm backset)
102mm case depth (83mm backset)
127mm case depth (108mm backset)
44824.1
44824.2
44824.3
44824.4
Dimension On Diagram
Overall Case Depth
64mm
76mm
102mm
127mm
A
Backset (Distance To centre Of Spindle Hole)
44mm
57mm
83mm
108mm
B
Case Height
23mm
23mm
23mm
23mm
C
Forend - Height (H) x Width (W)
60mm x 25mm
60mm x 25mm
60mm x 25mm
60mm x 25mm
D
Strike Plate - Height (H) x Width (W)
65mm x 25mm
65mm x 25mm
65mm x 25mm
65mm x 25mm
E
Standards This Product Conforms To
Lock case tested and passed to BS EN 12209. The British / European standard requirements and test methods covering locks and latches. Classification number - A710-B00
Tested and passed to BS EN 1634 the British / European standard for determining the fire resistance of door and shutter assemblies including hardware. Assessed for use on 30 minute and 1 hour timber fire doors FD30 / FD60. Intumescent latch case liners required (sold separately).
Certifire approved.
CE Marked / UKCA Marked
Declaration of performance (DoP) - please see the additional information tab to download the certificate.
Options Available To Order
Intumescent lock case liners to suit the DIN standard lock range are available. Please see our intumescent fire rated products category.
Unit Of Sale
Each - (1 x latch case supplied with forend and strike plate and black back box liner).
