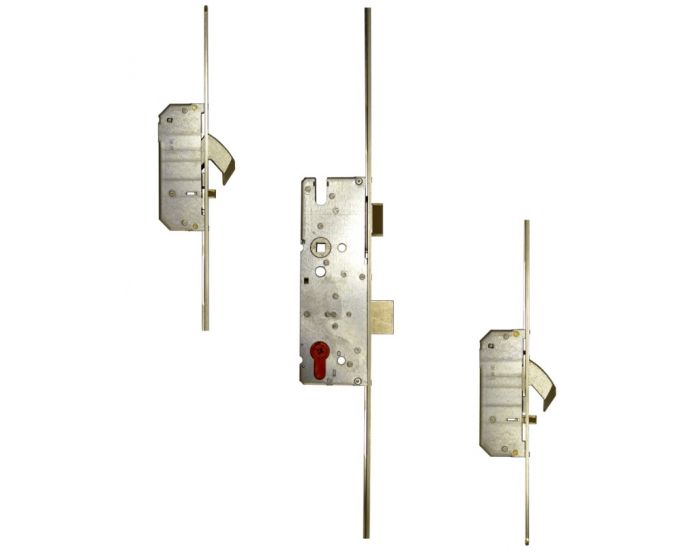

Auto Locking Multipoint Set For External Doors - Left Hand - 92mm Euro Centres - Door Height 2050mm - To Suit 44mm - 54mm Thick Doors

• Multipoint door lock for external timber / wooden doors.

• 3 point locking - 2 x hooks,1 x dead bolt, and 1 x latch,

• Unit automatically locks when the door is closed, unlocks with key, inside handle or electrical input if optional motor is fitted.

• Must be used in conjunction with 1 x pair of multi-point door handles and 1 x Euro profile cylinder - SOLD SEPARATELY.

• Options available to suit 44mm and 54mm thick doors.

Operation

• The hook bolts on the multipoint lock are engaged automatically when the door is closes and withdrawn via a lever handle or the euro cylinder from the inside of the door.

• The deadbolt on the master lock is locked and un-locked via a Euro profile cylinder (sold separately).

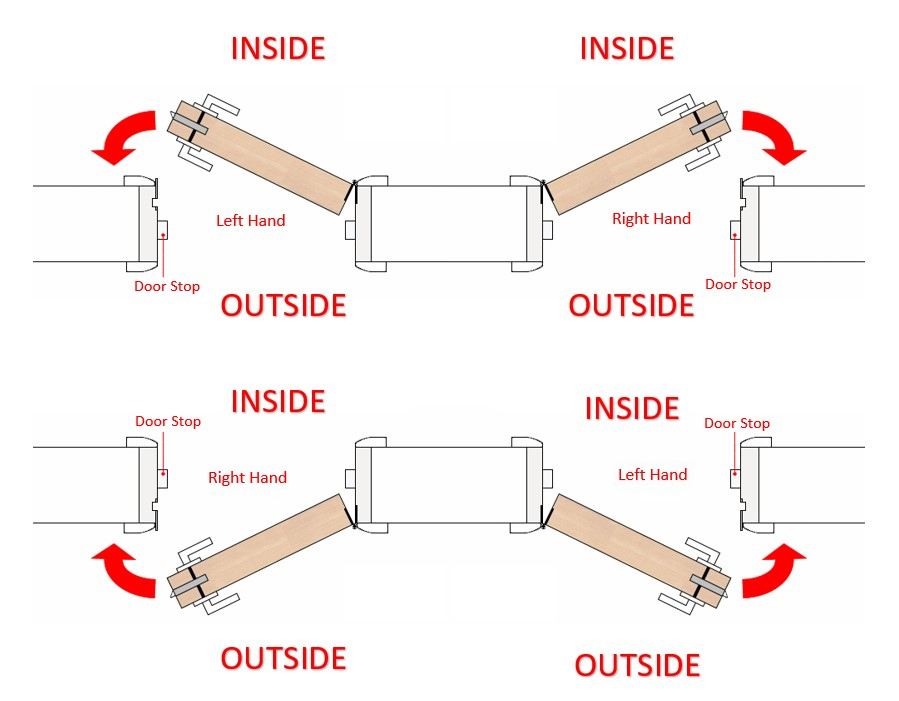

• These multipoint locks are handed please see diagram the below diagram for instructions on how to determine the handing required for your door.

Features

• Suitable for use on left or right handed doors.

• Suitable for inward or outward opening doors.

• Medium weight springing, designed for use with spring assisted (sprung) door handles.

• Bolt through facility for standard multipoint door handles.

• 8mm x 8mm spindle follower (to suit standard UK size spindles).

Finish

• Stainless steel forend.

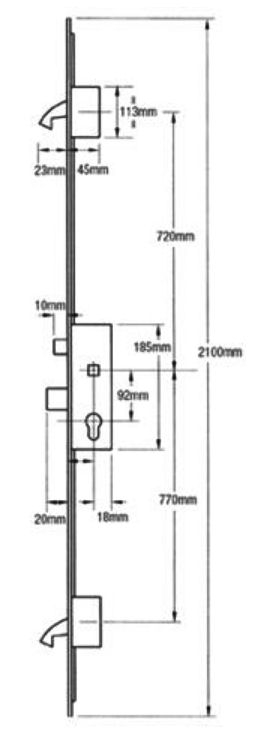

Dimensions

• Centres - 92mm

• Case Width - 63mm

• Case Height - 186mm

• Faceplate Width - 20mm Square

• Faceplate Height - 2100mm

• Backset - 55mm

• Locking Point Distance B - 350mm

• Locking Point Distance A - 830mm

• Locking Point Hooks - 2

Electronic Options

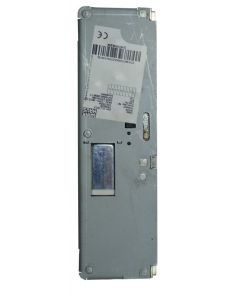

• This lock is designed to accept a €œscrew on€ 12v electronic motor which can then be controlled by means of industry standard multi option access control systems.

Unit Of Sale

• Multipoint door lock for external timber / wooden doors.

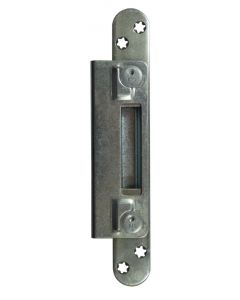

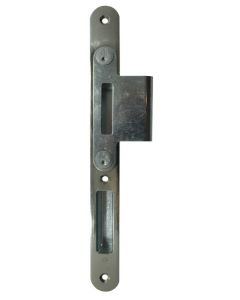

• Multipoint keeps sets sold separately
