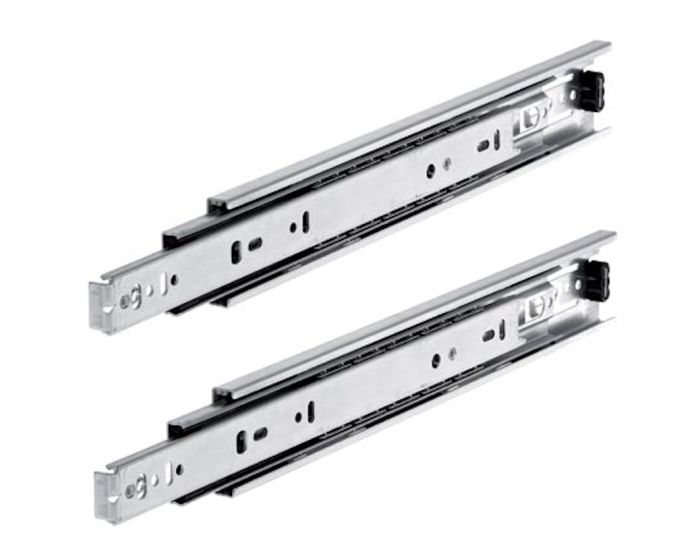

Ball Bearing Drawer Runners - Full Extension - Front Disconnect - 45kg Weight Limit - Zinc Plated

Catalogue Number:
31537
Full Description
Product Name Price Qty
31537.1 - Drawer Runners - Ball Bearing - Zinc Plated - 350mm - Pair
£5.78 £4.82

Per Pair
31537.2 - Drawer Runners - Ball Bearing - Zinc Plated - 400mm - Pair
£6.53 £5.44

Per Pair
31537.3 - Drawer Runners - Ball Bearing - Zinc Plated - 450mm - Pair
£7.37 £6.14

Per Pair
31537.4 - Drawer Runners - Ball Bearing - Zinc Plated - 500mm - Pair
£8.11 £6.76

Per Pair
31537.5 - Drawer Runners - Ball Bearing - Zinc Plated - 550mm - Pair
£8.88 £7.40

Per Pair
31537.6 - Drawer Runners - Ball Bearing - Zinc Plated - 600mm - Pair
£9.67 £8.06

Per Pair
Enquire Now
      Our best-selling drawer runners. These are perfect for replacing worn-out runners on all kinds of drawers with handles. A good, reliable product at a great price.
      • Ball bearing drawer runners.
      • Smooth and quiet operation.
      • Ideal for use with kitchen drawers, wardrobes and TV units.
      • Double (full) extension design allows the drawer to be pulled fully out from the cupboard / carcass.
      • 45kg weight limit.
      • Front disconnect feature allows the drawer to be removed from the cabinet by simply pressing the lever built into the runners.
      • Hold-in feature holds the closed drawer in place.
      • Side mounted - 13mm gap required between drawer side and carcass.
Diagram showing components of ball bearing drawer runners
Diagram showing ball bearing drawer runners fitted to a drawer unit

Dimensions

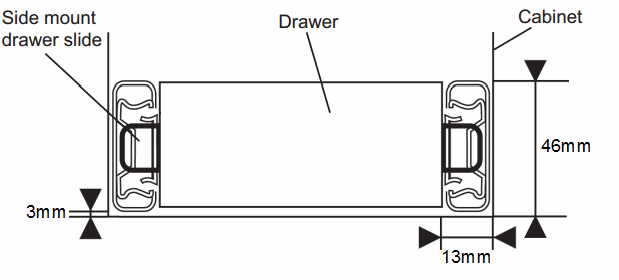

Diagram Showing Dimensions Of The Ball Bearing Full Extension Drawer Runners

      • Runner height - 46mm
      • Runner thickness (Installation Width Required) - 13mm
Drawer runner lengths available
Diagram showing extension lengths and installation lengths of the ball bearing drawer runners
Item CodeInstalled Length (A)Extension Length (B)Max Weight
31537.1 350mm 350mm 45kg
31537.2 400mm  400mm 45kg
31537.3 450mm  450mm  45kg
31537.4 500mm  500mm  45kg
31537.5  550mm 550mm  45kg
31537.6  600mm  600mm 45kg

Base Material

      • Made from steel.

Finish Details

      • Bright zinc plated.

Unit Of Sale

    • These ball bearing drawer runners are sold as pair (two runners).
More Information
Item 31537
Item Code 31537
Finish Zinc Plated
Sold Per Pair
Availability Stock item - please allow 1-3 days for delivery
Stock item - please allow 1-3 days for delivery
Download PDF Data Sheet
