Bathroom Hook Lock For Sliding Pocket Doors - With Turn And Release - Satin Stainless Steel

Catalogue Number:
20865
Full Description
Product Name Price Qty
20865.1 - Bathroom Hook Lock With Round Turn And Release For Sliding Pocket Doors - Satin Stainless Steel - Set
£84.86 £70.72

Per Set
Enquire Now

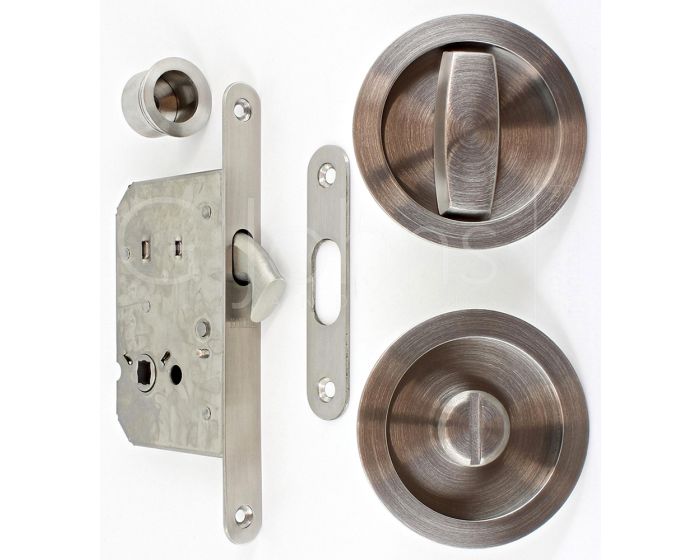

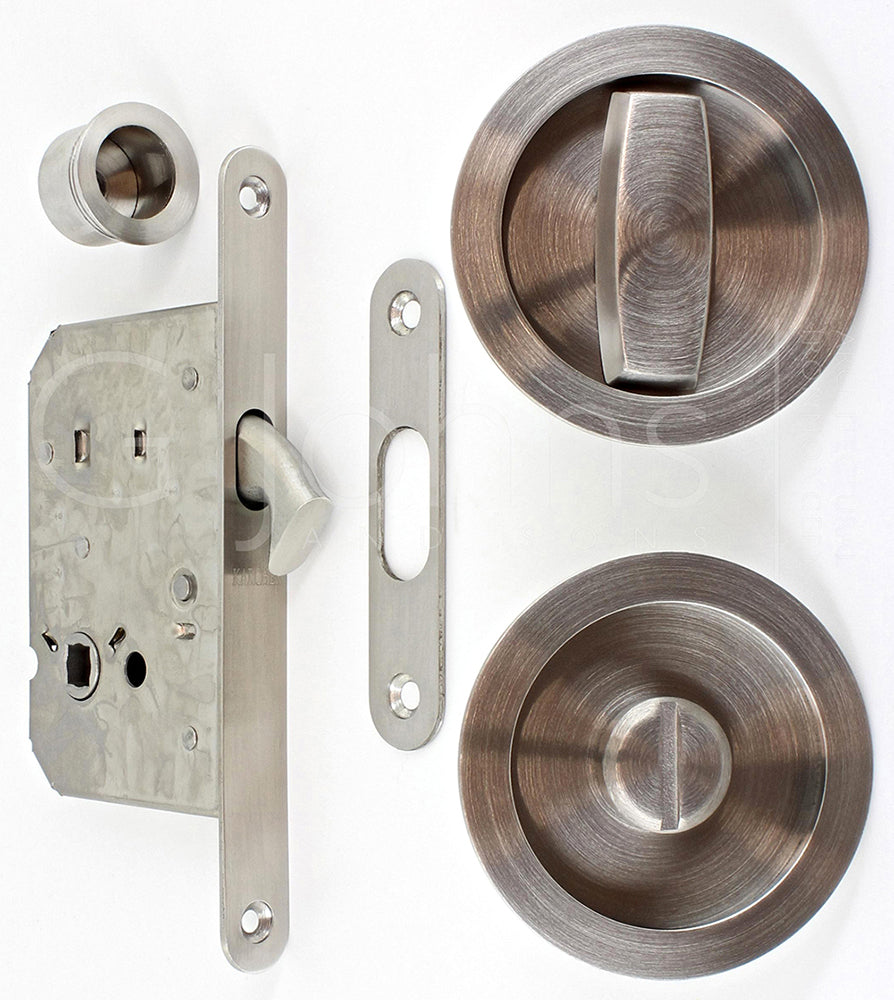

  • Flush fitting bathroom hook lock set for sliding pocket doors.
  • Ideal for use on sliding bathroom and toilet doors.
  • Complete kit includes.
    • 1x 70mm Deep sliding door bathroom hook lock
    • 1x Flush fitting snib turn and emergency release
    • 1x Edge pull handle to help pull the sliding door out of the wall cavity (pocket).

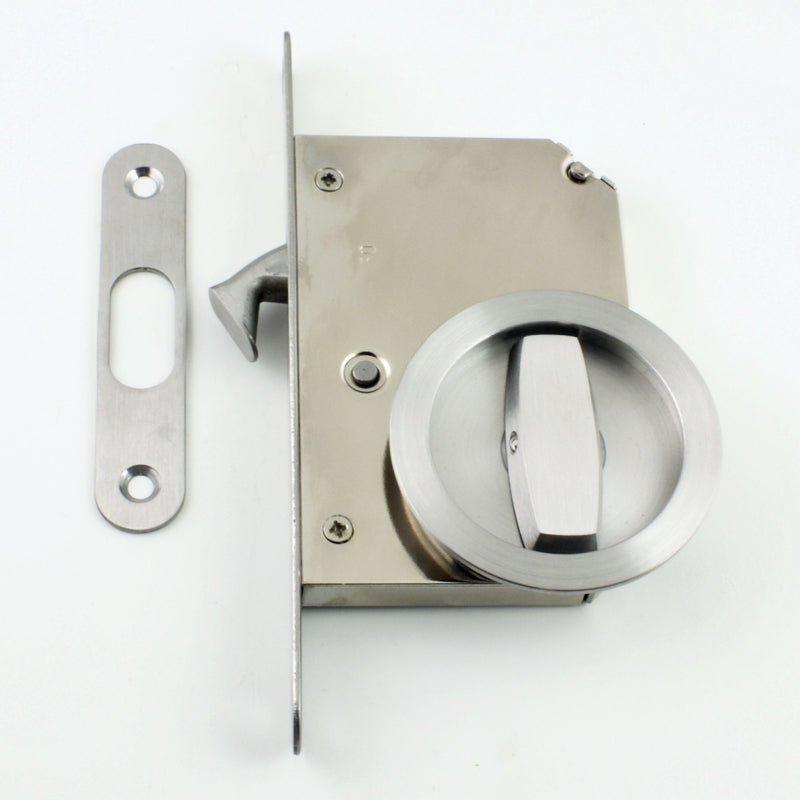

  • The thumb-turn is fitted to the inside of the sliding door which allows the door to be locked and unlocked.

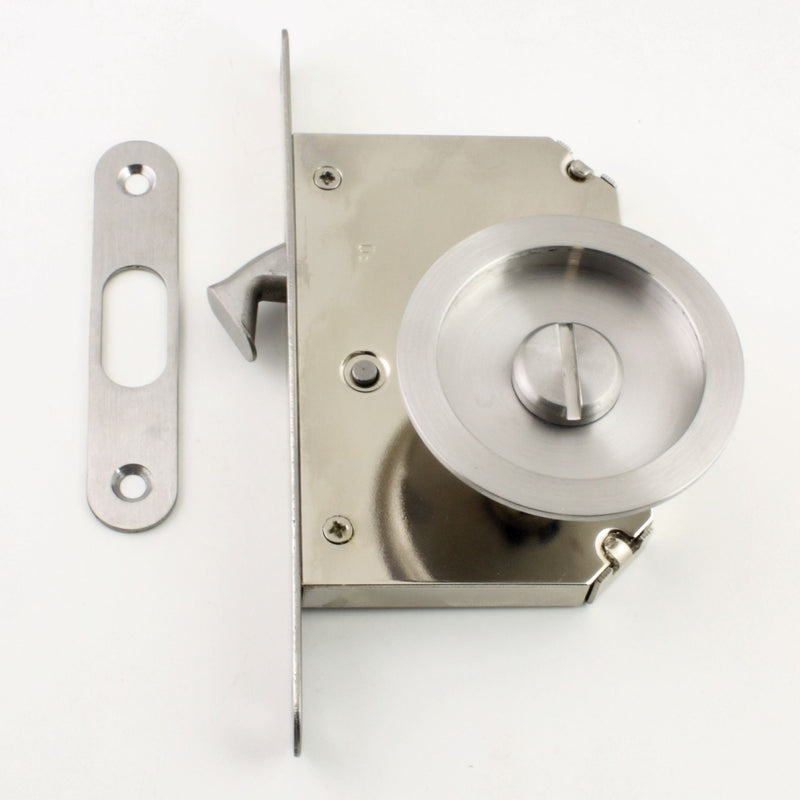

  • The release part of the lock is fitted on the outside of the sliding door and allows the door to be unlocked in an emergency by using a coin of screw driver.
  • Suitable for use on doors between 35mm to 45mm thick.

Finish

  • Satin (brushed) stainless steel


Dimensions

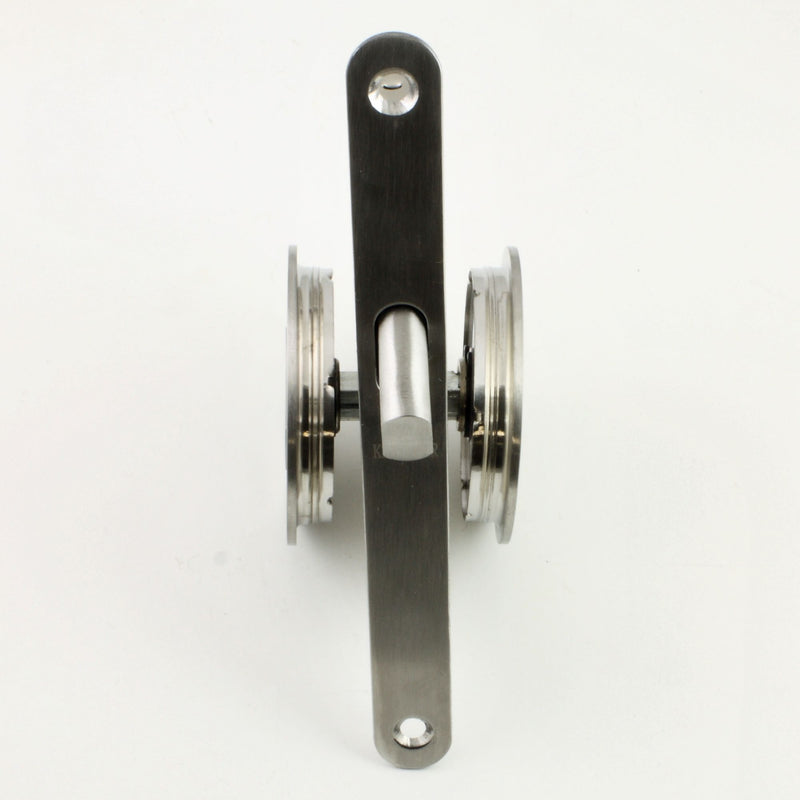

  • Lock Case - 70mm deep (50mm backset) mortice hook lock.
  • Turn & Release - 63mm Diameter x 11mm depth.
  • Edge Pull - 29mm diameter x 22mm depth.
  • To Suit Door Thickness - 35mm to 45mm thick.


Diagram and dimensions for the Karcher Design EPD1-OS 71 bathroom hook lock set for sliding pocket doors
More Information
Item 20865
Item Code 20865
Finish Satin Stainless Steel
Sold Per Each
Availability Stock item - please allow 1-3 days for delivery
Stock item - please allow 1-3 days for delivery
Download PDF Data Sheet
