Bottom Rolling Sliding Door Gear System For Cupboard Doors - For Doors Up To 70kg In Weight

Catalogue Number:
31270
Full Description Related Products
Product Name Price Qty
31270.1 - Bottom Rolling Sliding Door Gear For Cupboards - 1200mm Track Length To Suit 2 Doors
£60.07 £50.06

Per Kit
31270.2 - Bottom Rolling Sliding Door Gear For Cupboards - 1500mm Track Length To Suit 2 Doors
£65.28 £54.40

Per Kit
31270.3 - Bottom Rolling Sliding Door Gear For Cupboards - 1800mm Track Length To Suit 2 Doors
£70.87 £59.06

Per Kit
31270.4 - Bottom Rolling Sliding Door Gear For Cupboards - 2000mm Track Length To Suit 3 Doors
£87.31 £72.76

Per Kit
31270.5 - Bottom Rolling Sliding Door Gear For Cupboards - 2400mm Track Length To Suit 3 Doors
£98.11 £81.76

Per Kit
31270.6 - Bottom Rolling Sliding Door Gear For Cupboards - 3000mm Track Length To Suit 3 Doors
£114.50 £95.42

Per Kit
Enquire Now
  • This is a versatile twin track sliding door system for use with two or three doors and is ideal for sliding wardrobe doors.
  • The system features high quality bottom mounted rollers on ball bearings with top mounted guides, each running on high quality aluminium tracks.
  • Aluminium track provides a durable, long lasting finish.
  • Double style track and bottom track means that positioning can be adjusted to accommodate different depths of doors.
  • Bottom fixed rollers are mounted on ball bearings for extra smooth and quiet running.
  • Adjustable top mounted guides make installation and removal of doors easy.
  • Anti-jump system means wheels will always run smoothly.
  • Additional door kit (without track) available to add extra doors to system - see product 40909

Kits Available To Suit 2 Door Systems

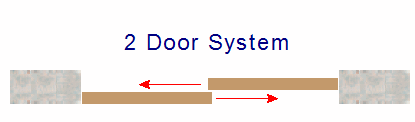

Diagram Showing A 2 Door Layout For Sliding Door Gear



Kits Available To Suit 3 Door Systems

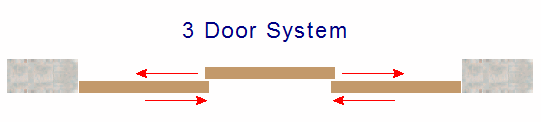

Diagram Showing A 3 Door Layout For Sliding Door Gear

  • Extra door kits (sold without tracks) are available to buy separately to create systems with more then 3 doors.

Track Lengths Available

Item Code Overall Track Length (L) To Suit No. Of Doors Maximum Door Weight (W) Minimum Door Thickness (T)
31270.1 1200mm 2 70kg 16mm
31270.2 1500mm 2 70kg 16mm
31270.3 1800mm 2 70kg 16mm
31270.4 2000mm 3 70kg 16mm
31270.5 2400mm 3 70kg 16mm
31270.6 3000mm 3 70kg 16mm
  • Longer kits can be created by simply joining to kits "end on" (next to each other).


Dimensions

Dimensions of the Ares 2 sliding door gear system for wardrobe and cupboard doors

Dimensions of the Ares 2 sliding door gear track

Fixing Options

  • Designed for ceiling / soffit mounting as standard.

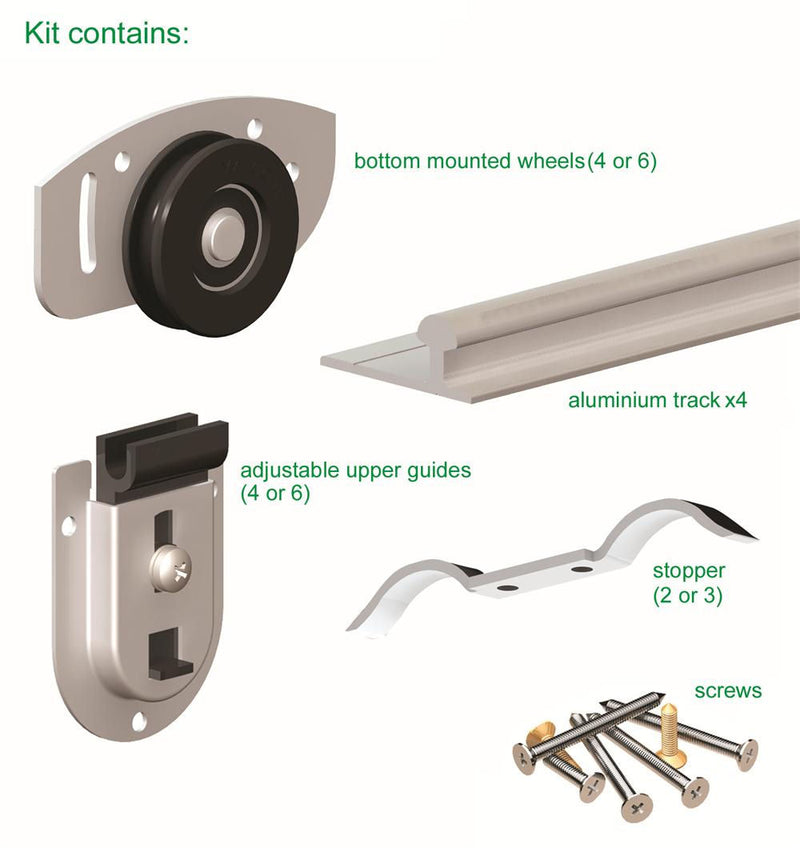

Items Included Within The Sliding Cupboard Door Kit

  • 4x Aluminium tracks
  • 4x Lower wheels for 2 door kits - (6x Lower wheels for 3 door kits)
  • 4x Upper guides for 2 door kits - (6x Upper guides for 3 door kits)
  • 2x Stopper plates for 2 door kits - (3 x Stopper plated for 3 door kits)

More Information
Item 31270
Item Code 31270
Finish Aluminium Track
Sold Per Kit
Availability Non stock product - sent direct from factory - please allow 2-3 working days for delivery
Non stock product - sent direct from factory - please allow 2-3 working days for delivery
Download PDF Data Sheet
