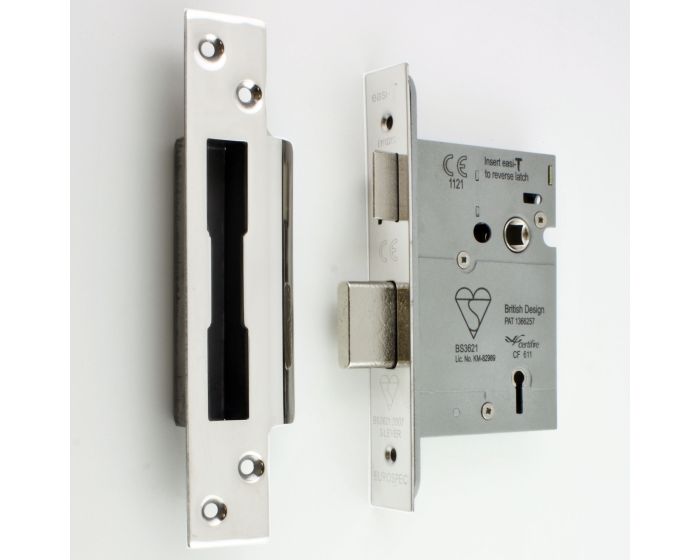

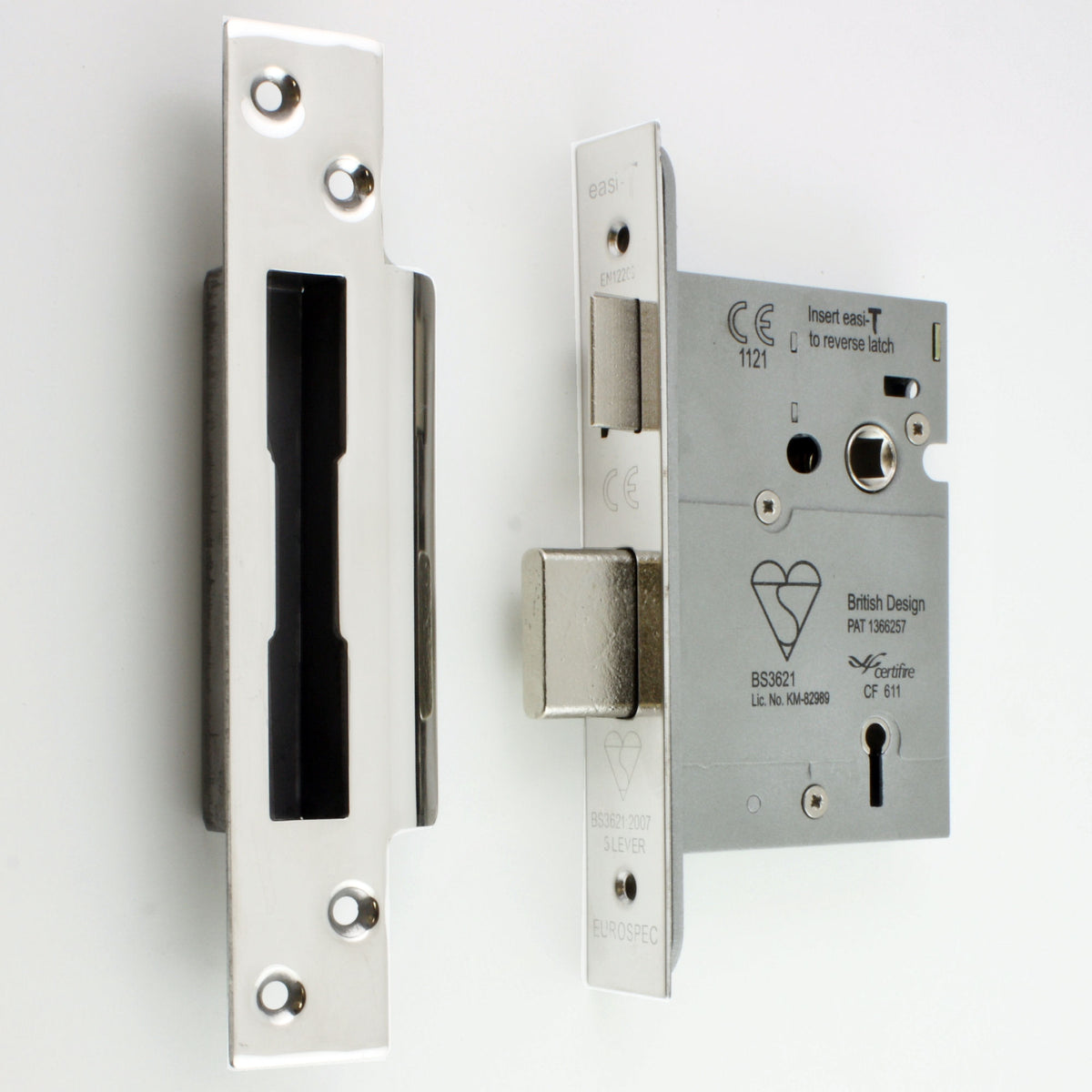

5 Lever British Standard Kite Marked Mortice Sash Lock - BS3621 Rated - CE Marked - Fire Rated - Certifire Approved - Polished Stainless Steel -

Catalogue Number:
40663
Full Description Related Products
Product Name Price Qty
40663.1 - 5 Lever British Standard Kite Marked Mortice Sash Lock - BS3621 Rated - CE Marked - Fire Rated - Certifire Approved - 64mm Depth (44mm Backset) - Polished Stainless Steel
£29.21 £24.34

Per Each
40663.2 - 5 Lever British Standard Kite Marked Mortice Sash Lock - BS3621 Rated - CE Marked - Fire Rated - Certifire Approved - 76mm Depth (57mm Backset) - Polished Stainless Steel
£29.21 £24.34

Per Each
  • 5 Lever British Standard sash lock.
  • Shiny polished stainless steel finish.
  • Kite marked security lock for external doors including, front doors, back doors and garage doors. Tested to the British standard BS 3621.
  • Insurance approved, BS 3621 rated.
  • Sash locks have a latch mechanism built into the lock case and are designed to be used with a pair of door handles.
  • Key operation from either side of the door via a cut "Chubb style" key.

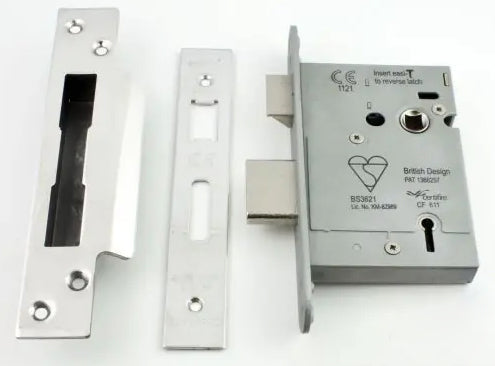

  • Supplied with shiny finish forend and strike plate.
  • Police preferred specification - Secured By Design (SBD) approved.
  • Mortice lock available in two sizes 64mm or 76mm (case depth).

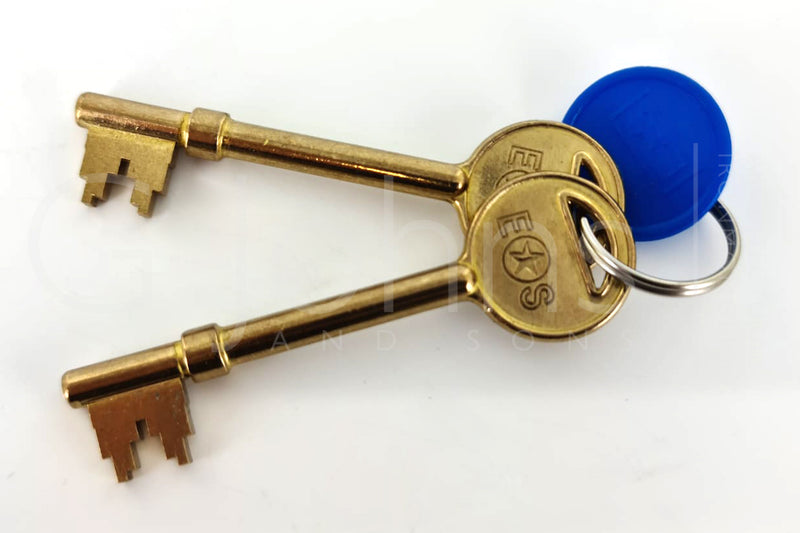

  • Supplied with 3 keys

Operation

  • 8mm spindle for use with standard UK door handles.
  • Key operation from both sides.
  • Key differed - if ordering more than one, each lock will come with different keys.
  • Suitable for use on timber doors.


Features

  • Heavy duty lock case and stainless steel striker plate for the door frame.
  • Solid stainless steel deadbolt and latch.
  • Dual latch springing - spring strength can be adjusted on site to suit sprung or un-sprung lever furniture.
  • Bolt through facility for bolt together fixing of lever handles and accessories at 38mm centers.
  • Solid investment cast 8mm x 8mm spindle follower (to suit standard UK size spindles).
  • 20mm bolt throw with a single turn of a key.
  • 10 year mechanical guarantee as standard.
  • Patented Easi-T latch reversal mechanism. - Latch can be reversed on site without taking the lock case apart.
  • Reversible strike plate.

Security Level

  • Tested to BS EN 12209 the British / European standard requirements and testing methods covering locks and latches. Classification number 2H810F7KD2B
  • Stainless steel deadbolt with 20mm throw (bolt is thrown 20mm via one turn of the key only).
  • Police preferred specification - Secured By Design (SBD) approved.
  • High security, suitable for use on external front doors.

Finish

  • Polished stainless steel - (shiny finish ideal for matching with polished chrome and nickel products).



Alternative Finishes Available

  • Satin stainless steel
  • PVD Brass
  • Florentine bronze

Dimensions

Diagram Of 5 Lever British Standard Mortice Lock
Item CodeLock Case Depth (A)Backset To Keyhole (B)
40663.1 64mm 44mm
40663.2 76mm 57mm
  • Will work with standard UK door handles.
  • 8mm spindle hole.
  • 57mm centres between the spindle hole and keyhole.

Standards This Product Conforms To

  • Police preferred specification - Secured By Design (SBD) approved.
  • Kite marked - This lock meets the current British standard for locks fitted to external doors, including front doors.
  • Insurance approved.
  • Tested and passed to BS 3621:2007. The British standard requirements and test methods covering thief resistant lock assemblies with key egress (key egress - operating the lock via key from the inside of the door).
  • Lock case tested and passed to BS EN 12209. The British / European standard requirements and test methods covering locks and latches. Classification number - 2H810F7KD2B.
  • Tested and passed to BS EN 1634 the British / European standard for determining the fire resistance of door and shutter assemblies including hardware. Assessed for use on 30 minute and 1 hour timber fire doors FD30 / FD60.
  • Certifire approved
  • CE Marked
  • Declaration of performance (DoP) - please see the additional information tab to download the certificate.


Options Available To Order

  • Keyed Alike (KA) - A batch of locks all under the same one key.
  • Please contact us for more information and lead times and prices for the above options.



Rebate Kits For Double Rebated Doors

  • 40842.1 - 13mm stainless steel rebate kit for 5 lever sash lock.
  • PLEASE NOTE THIS REBATE KIT WILL TURN THE FINISH OF THE LOCK IN TO A BRUSHED SATIN FINISH
More Information
Item 40663
Item Code 40663
Finish Polished Stainless Steel -
Dimensions 64mm or 76mm Case Depth
Fire Rated FD30 / FD60 - Fire Rated
Sold Per Each
Availability Stock item - please allow 1-3 days for delivery
Stock item - please allow 1-3 days for delivery
Download PDF Data Sheet
