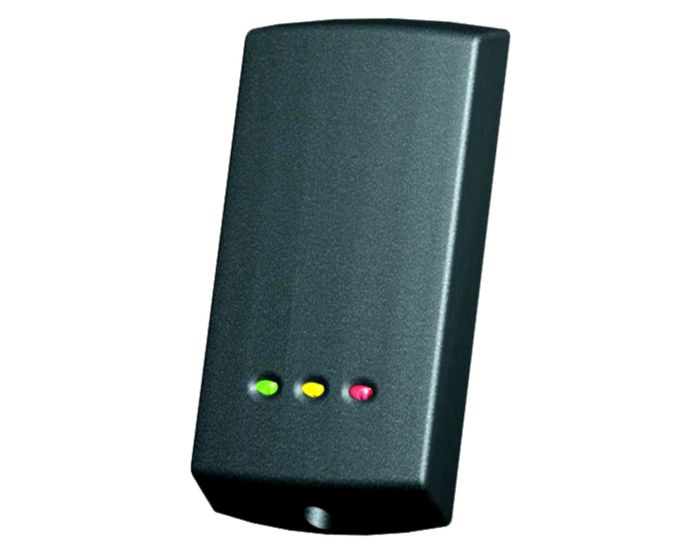

Compact Proximity FOB Reader - Black
Catalogue Number:
48743
Related Products
- Proximity compact is a single door access control system. All of the electronics are within the housing of the reader. Compact systems can be installed to many doors over a site, all using the same cards.
Features
- Maximum total users/tokens: 100 card packs (up to 5,000 tokens/users)
- Door open time: 1 sec - 60 secs
- Exit button input
- Silent operation
- Data retention during a total power loss: >10 years
- Operating Voltage: 11V - 14V DC
- Current consumption: 100mA
- 12V DC lock output: 750mA @ 12V
- Operating temperature: -20°C - +55°C (-4°F - +131°F)
- Moisture resistance: IPX7
- Vandal Resistance: Medium
Finish
- Black
Size Information

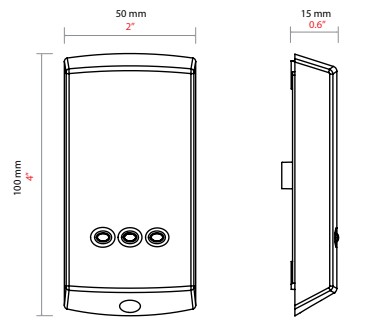

- 100mm x 50mm x 15mm
Fixings
- Supplied with matching screws.
Unit Of Sale
- Sold individually - Each
| Item | 48743 |
|---|---|
| Item Code | 48743 |
| Finish | Black |
| Dimensions | 100mm x 50mm |
| Sold Per | Each |
| Availability | Non stock product - please allow 3-7 days for delivery |
Non stock product - please allow 3-7 days for delivery
-
