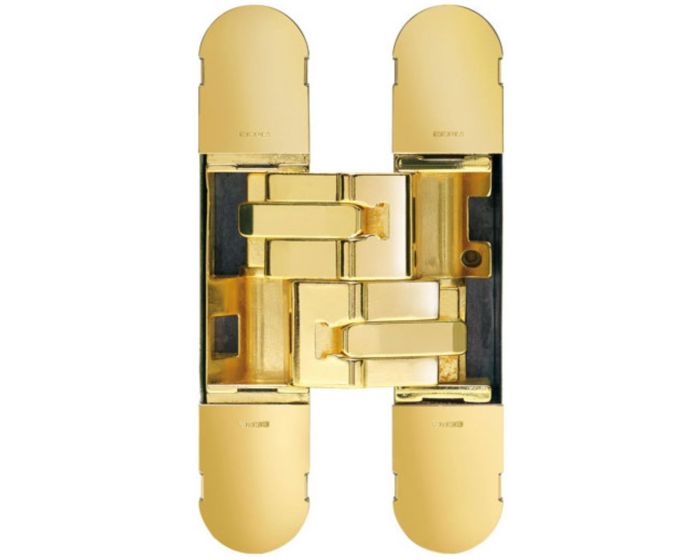

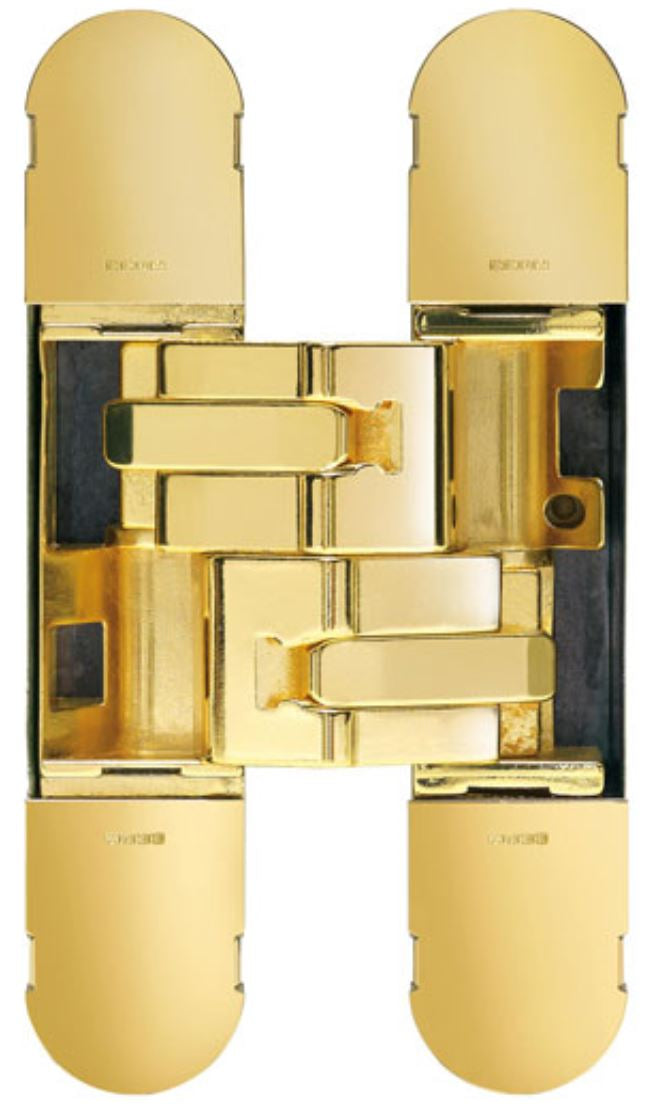

Concealed Adjustable Hinge For Invisible Doors - 134mm x 24mm - Polished Brass Plated

Catalogue Number:
43431
Full Description
Product Name Price Qty
43431.1 - Concealed Adjustable Hinge For Invisible Doors - 134mm x 24mm - Polished Brass Plated - Each - (1 Hinge)
£53.42 £44.52

Per Each
Enquire Now
  • 134mm x 24mm, polished brass plated adjustable concealed door hinge.
  • Minimum door thickness 30mm.
  • Ideal for use with flush doors, where an invisible or hidden door look is required.
  • Cover caps hide the adjustment and fixing screws for an a minimalist look.
  • Totally recessed making the gap between door and frame very small.
  • Easy to install and maintain
  • 3D adjustable design (door can be adjusted vertically, horizontally and laterally).
  • Opening angle up to 180 (when used with architrave free door frames).



Weight Limits

  • Max door weight with 2 x hinges fitted - 40kg
  • Max door weight with 3 x hinges fitted (hinges fitted top,middle and bottom) - 60kg
  • Max door weight with 3 x hinges fitted (hinges fitted 2 x top,and 1 x bottom) - 65kg
  • Max door weight with 3 x hinges fitted (hinges fitted 2 x top,and 1 x bottom) - 70kg



Finish

  • Polished brass plated.

Dimensions
  • 134mm height x 24mm width x 16.5mm depth.

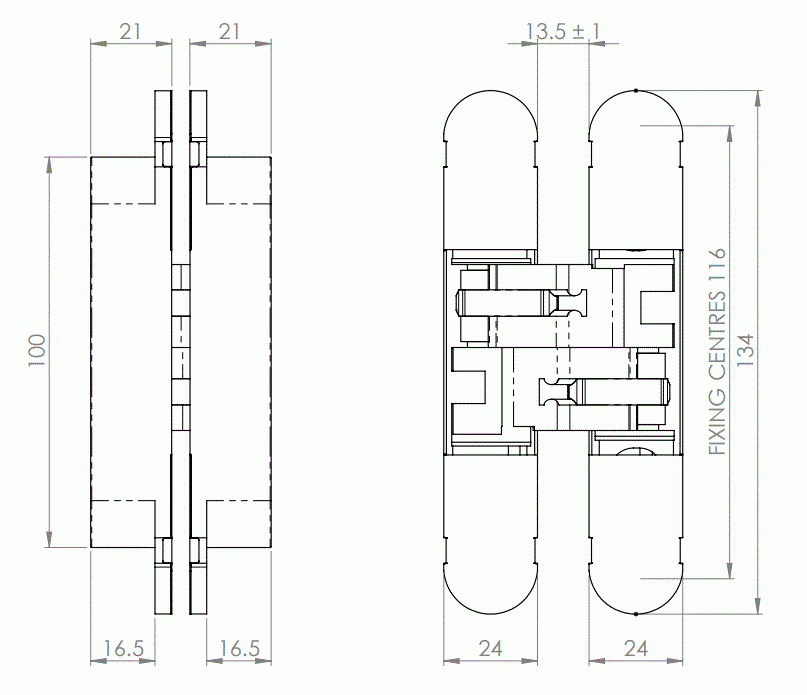

Diagram Showing Dimensions The Concealed Invisible Hinge 134mm x 24mm

  • 3D Adjustable
  • +/- 3mm Side
  • +/- 3mm Height
  • +/- 1.5mm Compression

Installation & Adjustment Videos




More Information
Item 43431
Item Code 43431
Finish Polished Brass Plated
Dimensions 134mm x 24mm
Sold Per Each - (1 Hinge)
Availability Non stock product - please allow 3-7 days for delivery
Non stock product - please allow 3-7 days for delivery
Download PDF Data Sheet
