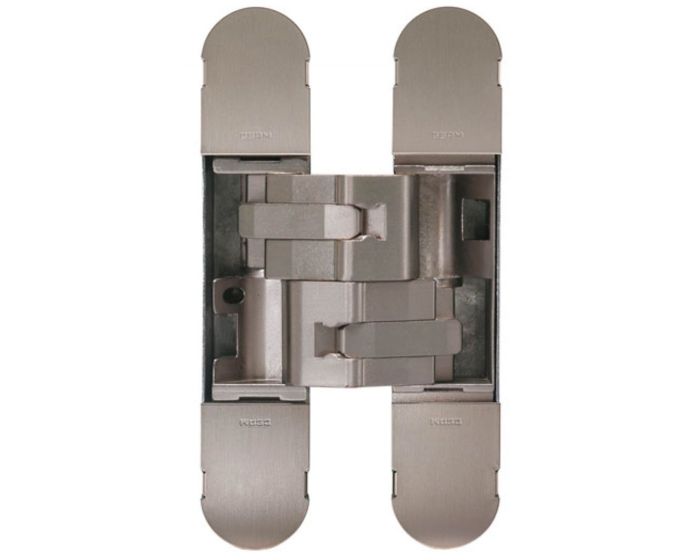

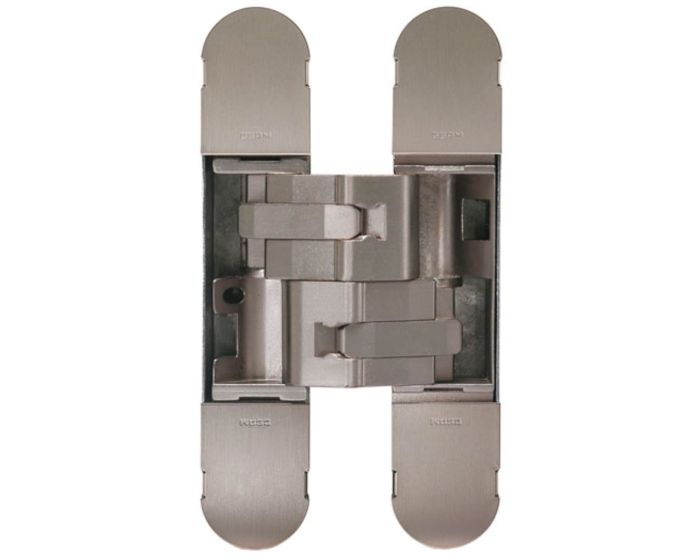

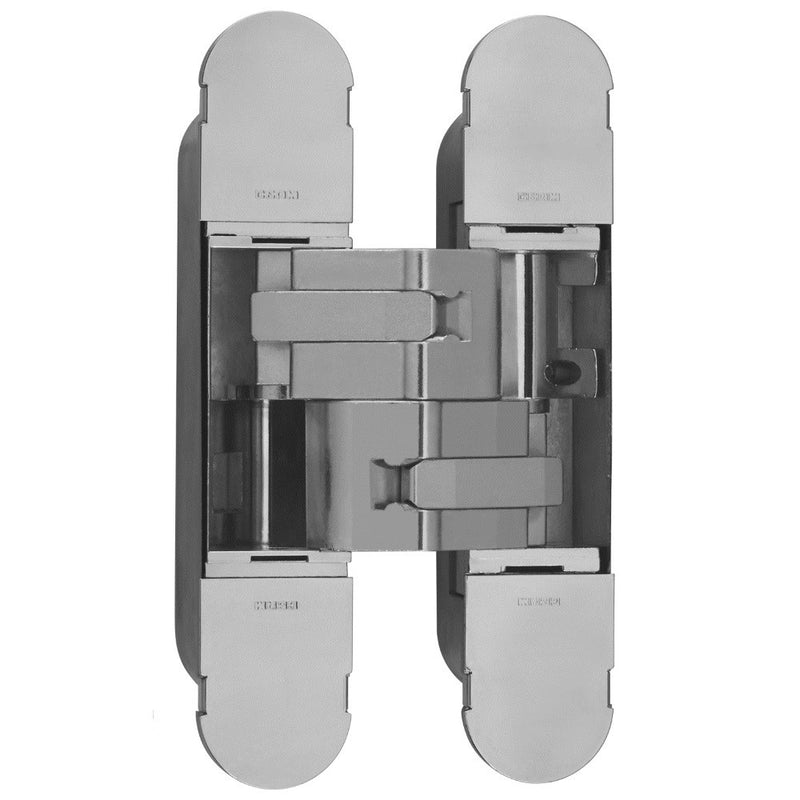

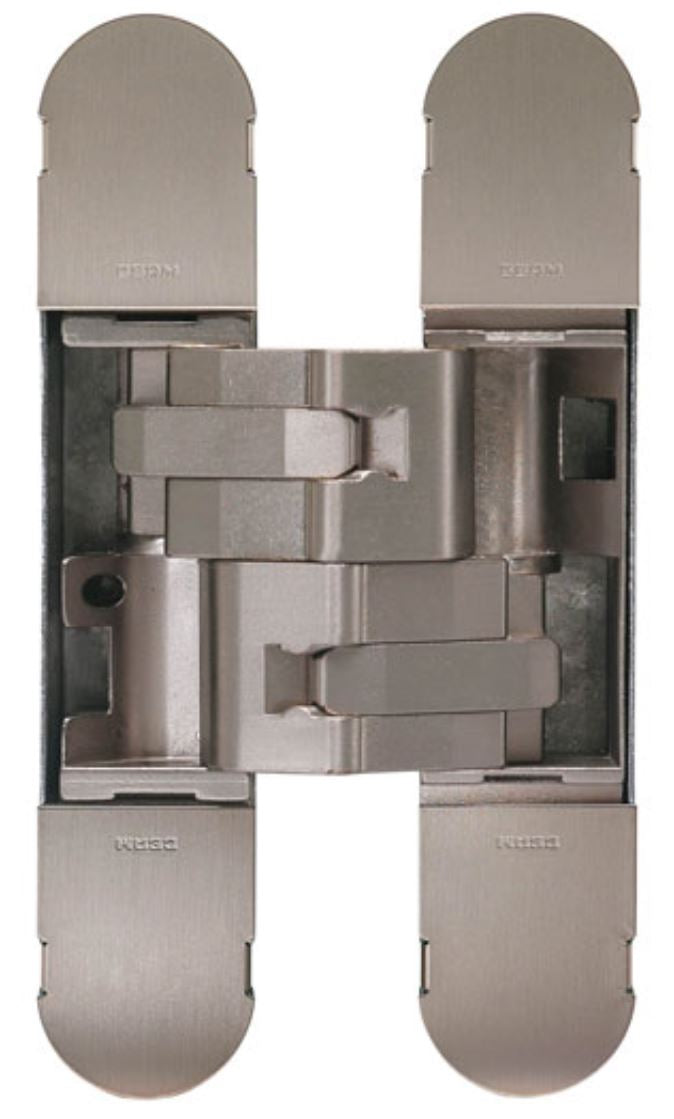

Fire Rated Concealed Adjustable Hinge For Invisible Doors 160mm x 32mm (Satin Nickel)

Catalogue Number:
41137
Full Description Related Products
Product Name Price Qty
41137.1 - Concealed Adjustable Hinge For Invisible Doors - FD30 / FD60 Fire Rated - 160mm x 32mm - Satin Nickel - Each - (1 Hinge)
£82.72 £68.93

Per Each
Enquire Now
  • 160mm x 32mm fire-rated* adjustable concealed hinges for flush doors.
  • Fire rated* - suitable for use on FD30 and FD60 fire doors * when used with the 43426 intumescent kit (see related products) *
  • Minimum door thickness 38mm.
  • Ideal for use with fire-rated flush doors, where an invisible or hidden door look is required.
  • Cover caps hide the adjustment and fixing screws for a minimalist look.
  • Totally recessed, making the gap between the door and frame very small.
  • Our concealed adjustable hinges are easy to install and maintain
  • 3D adjustable design (the door can be adjusted vertically, horizontally, and laterally).
  • Opening angle up to 180 (when used with architrave-free door frames).



Weight Limits

  • Max door weight with 2 x hinges fitted - 80kg
  • Max door weight with 3 x hinges fitted (hinges fitted top, middle and bottom) - 120kg
  • Max door weight with 3 x hinges fitted (hinges fitted 2 x top,and 1 x bottom) - 140kg



Finish



Dimensions

  • 160mm height x 32mm width x 29mm depth.





Diagram Showing Dimensions The Fire Rated FD30 / FD60 Concealed Invisible Hinge 160mm x 32mm



  • 3D Adjustable
  • +/- 3mm Side
  • +/- 3mm Height
  • +/- 1.5mm Compression



Installation & Adjustment Videos





More Information
Item 41137
Item Code 41137
Finish Satin Nickel
Dimensions 160mm x 32mm
Fire Rated FD30 / FD60 - Fire Rated
Sold Per Each - (1 Hinge)
Availability Non stock product - please allow 3-7 days for delivery
Non stock product - please allow 3-7 days for delivery
