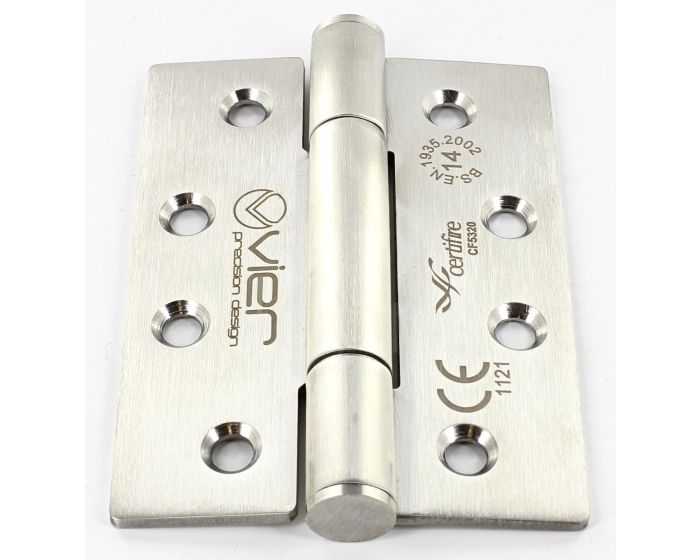

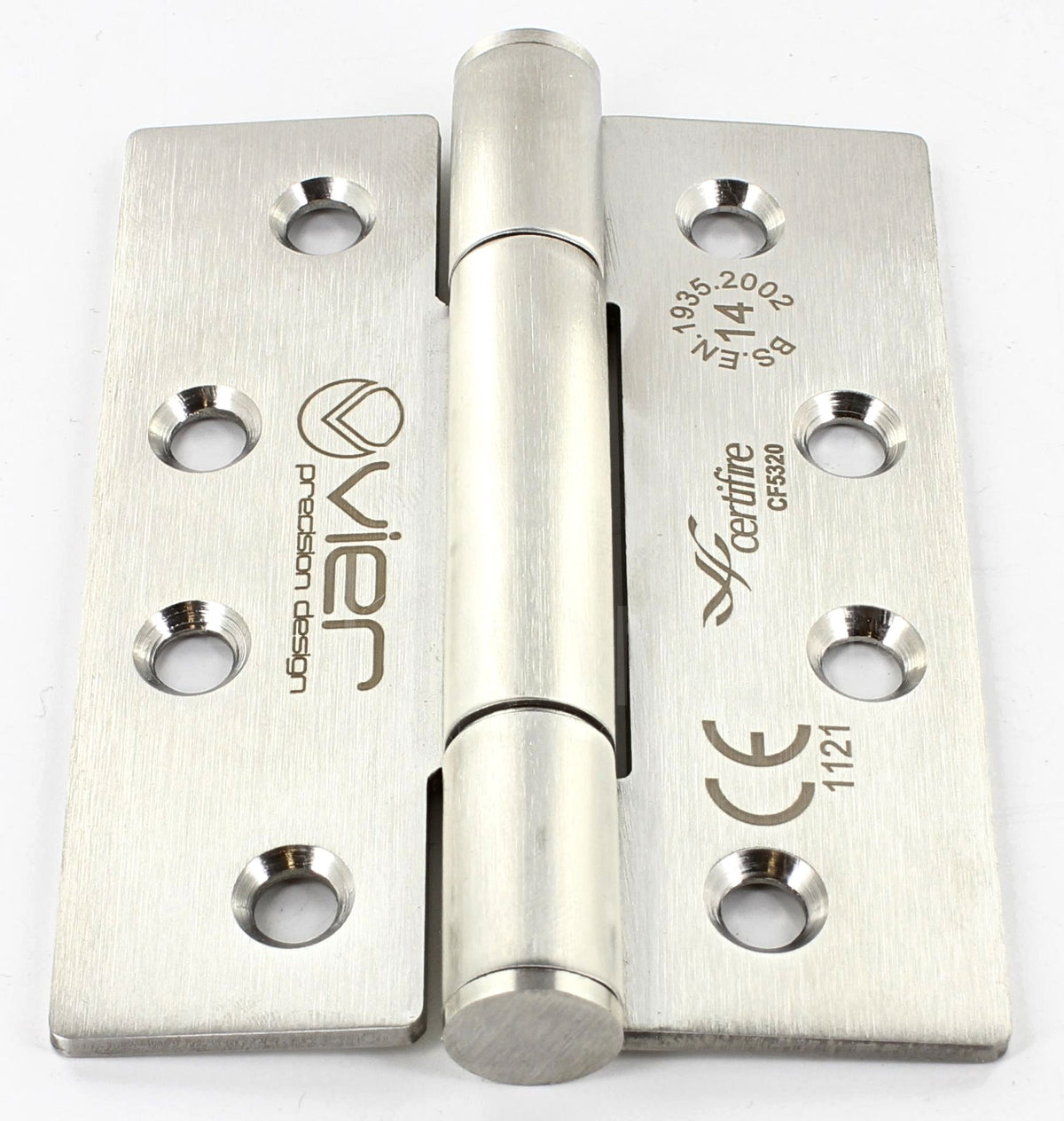

Fire rated, CE Marked / UKCA Marked and Certifire approved.
These Hi-Load hinges have been designed and tested for high use, heavy commercial grade doors
Designed to "Fit and Forget" these hinges have excellent wear-ability with self-lubricating polymer bearings.
Tested and passed to British standard EN.1935 2002 overall grade 14.
Tested to grade 7 door mass suitable for doors up to 160kg in weight.

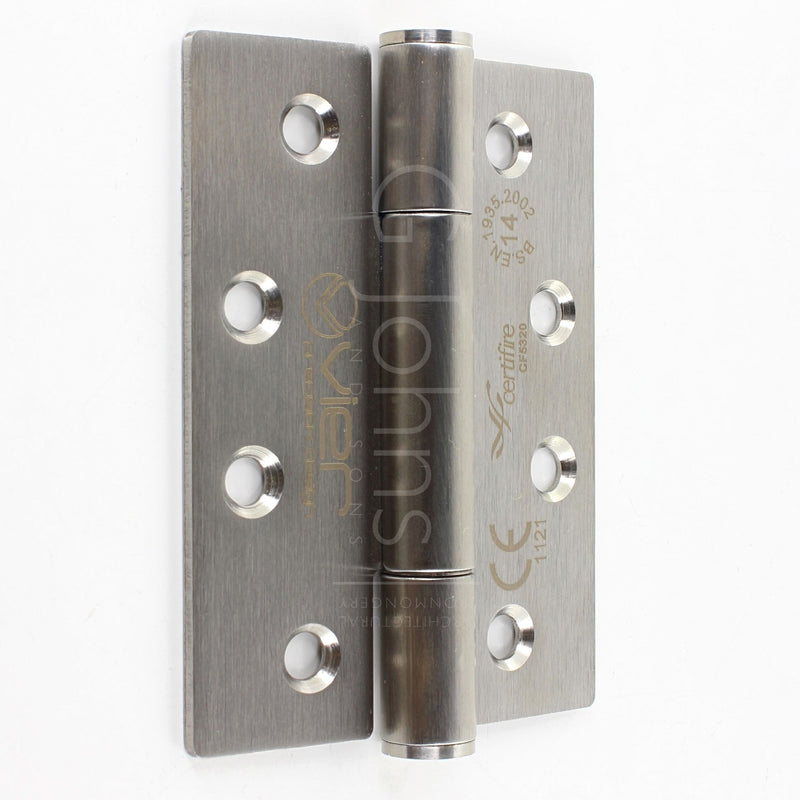

The bearing avoid metal to metal movement by using polymer bushes in the knuckle, impregnated with a specially formulated lubricant, This construction eliminates the wear and regular maintenance required by other types of hinge.
Dimensions
41734
Dimension On Diagram
Height (H)
102mm
A
Width (W)
76mm
B
Leaf Width
30mm
C
Thickness
3mm
N/A
Base Material
Stainless steel
Finish
Satin stainless steel - (brushed finish)
Standards This Product Conforms To
Tested and passed to BS EN 1935* the British / European standard requirements and testing methods covering single axis hinges. Classification number - 4-7-7-1-1-4-0-14.
*To meet this standard 2mm thick intumescent liners should be fitted behind each leaf of the hinge.
Tested and passed to BS EN 1634 the British / European standard for determining the fire resistance of door and shutter assemblies including hardware. These hinges have been assessed for use on 30 minute and 1 hour timber fire doors FD30 / FD60.
