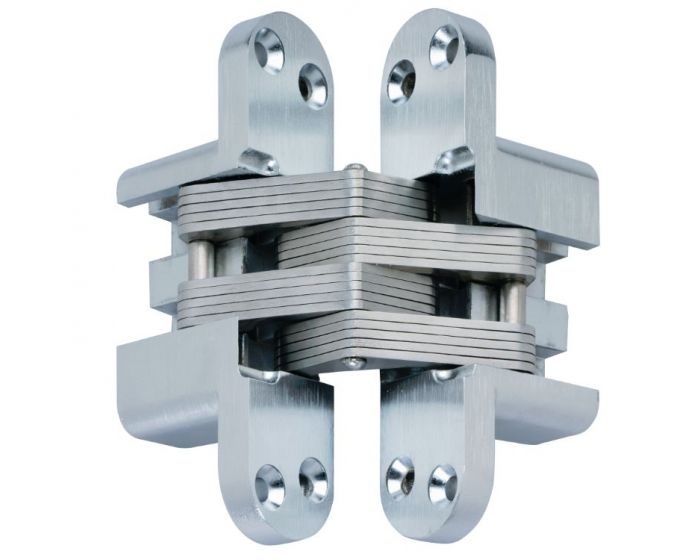

Concealed SOSS Style Hinges - 45mm x 12.4mm - Satin Chrome

Catalogue Number:
31516
Full Description
Product Name Price Qty
31516.1 - Concealed SOSS Style Hinge - 45mm x 12.4mm - Satin Chrome - Each - (Sold Per Hinge)
£8.76 £7.30

Per Each
Enquire Now
  • Concealed SOSS style hinges
  • Our SOSS hinges come in sizes - 45mm x 12.4mm
  • Our SOSS hinge are suitable for door thickness 19mm - 26 mm
  • Opening angle 180 degree one way
  • Zinc alloy hinge body and links
  • Our SOSS Hinges come in satin chrome plated finish
  • Max door weight (per 3 hinges) - 10kg
  • The Concealed SOSS hinges come complete with fixing Screws
  • PLEASE NOTE THE SOSS STYLE CONCEALED HINGES ARE SOLD INDIVIDUALLY - (EACH HINGE)
Diagram showing a SOSS style hinge fitted inside a door



Dimensions



Item Code Height (H) Leaf Width (W) To Suit Door Thickness (DT)

Max Door Weight- (Per 3 Hinges)

Distance To Door Edge (X) Plate Thickness (A) Mortice Depth (B) Mortice Height (C)
 31516.1  45mm 12.4mm   19mm - 26mm 10kg 3.2mm   4.7mm  18.2mm 18.3mm

Dimensions of the SOSS style concealed hinge Dimensions of the SOSS style concealed hinge

More Information
Item 31516
Item Code 31516
Finish Satin Chrome
Dimensions 45mm x 12.4mm
Sold Per Each
Availability Stock product - please allow 1-3 days for delivery
Stock product - please allow 1-3 days for delivery
