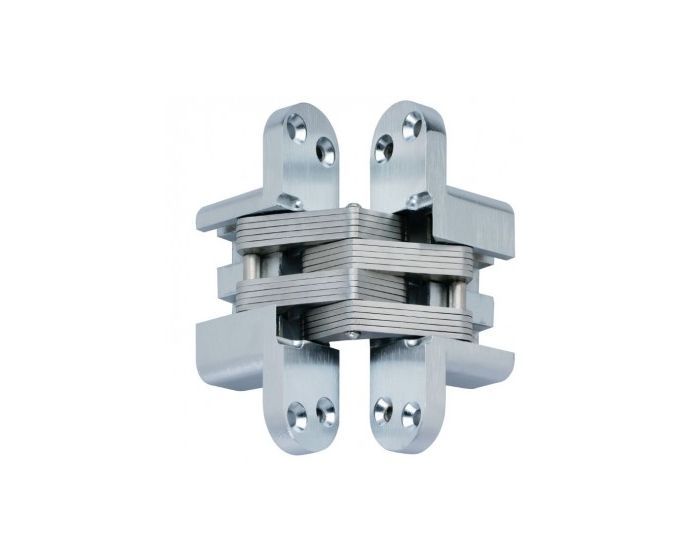

Concealed SOSS Style Hinges - 94mm x 18.4mm - Satin Chrome
Catalogue Number:
31519
- Concealed SOSS style hinges
- Size - 94mm x 18.4mm
- For door thickness 28mm - 34mm
- Opening angle 180 degree one way
- Zinc alloy hinge body and links
- Satin chrome plated finish
- Max door weight (per 3 hinges) - 35kg
- Complete with fixing Screws
- PLEASE NOTE THE SOSS STYLE CONCEALED HINGES ARE SOLD INDIVIDUALLY - (EACH HINGE)
Dimensions
| Item Code | Height (H) | Leaf Width (W) | To Suit Door Thickness (DT) |
Max Door Weight- (Per 3 Hinges) | Distance To Door Edge (X) | Plate Thickness (A) | Mortice Depth (B) | Mortice Height (C) |
|---|---|---|---|---|---|---|---|---|
| 31519.1 | 94mm | 18.4mm | 28mm - 34mm | 35kg | 4.8mm | 8.3mm | 26.4mm | 49.8mm |
| Item | 31519 |
|---|---|
| Item Code | 31519 |
| Finish | Satin Chrome |
| Dimensions | 94mm x 18.4mm |
| Sold Per | Each |
| Availability | Stock product - please allow 1-3 days for delivery |
Stock product - please allow 1-3 days for delivery
