Concealed Tectus Hinges - 200mm x 32mm - For Doors With Cladding Up To 8mm Thick

Catalogue Number:

31173

Product Name Price Qty

31173.1 - Tectus Concealed Hinge - 200mm x 32mm - EB Finish - Electro Brass - Each - (1 Hinge)

£302.42 £252.02

Per Each

31173.2 - Tectus Concealed Hinge - 200mm x 32mm - F1 Finish - Satin Chrome - Each - (1 Hinge)

£196.72 £163.93

Per Each

31173.3 - Tectus Concealed Hinge - 200mm x 32mm - F2 Finish - Matt Nickel - Each - (1 Hinge)

£196.72 £163.93

Per Each

31173.4 - Tectus Concealed Hinge - 200mm x 32mm - Polished Nickel Finish - Polished Nickel - Each - (1 Hinge)

£302.42 £252.02

Per Each

31173.5 - Tectus Concealed Hinge - 200mm x 32mm - SSE Finish - Stainless Steel Effect - Each - (1 Hinge)

£243.67 £203.06

Per Each

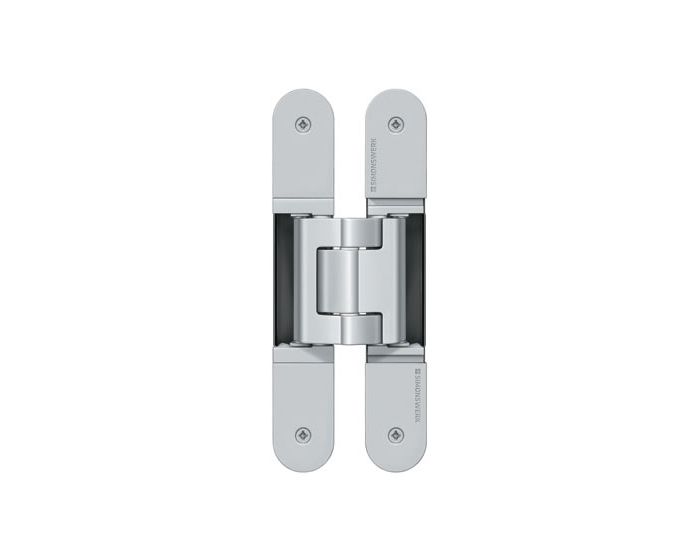

TECTUS TE 540 3D A8 hinge for doors with claddings of up to 8 mm.
Completely concealed for unrebated, heavy-duty doors with timber, steel and aluminium frames.
UL-certified,
Load capacity 100 kg, opening angle up to 180°,
Overall length 200 mm,
Maintenance-free slide bearings,
3D adjustable side +/- 3 mm, height +/- 3 mm, compression +/- 1 mm.
Size - 200mm x 32mm
SOLD PER HINGE - (EACH)

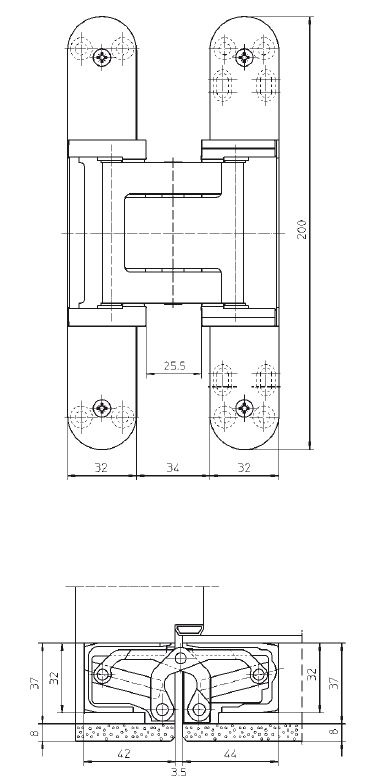

TE5403DA8
