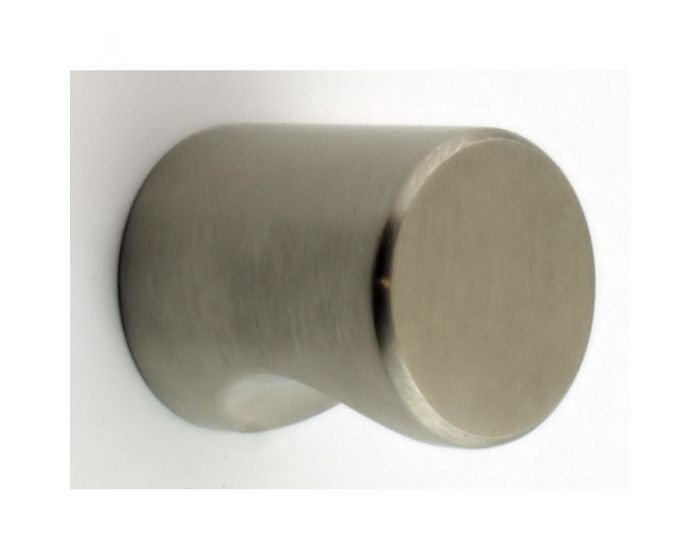

Contemporary Cylindrical Shape Cupboard Knobs - 4 Sizes - Satin Stainless Steel

Catalogue Number:
20007
Full Description
Product Name Price Qty
20007.1 - Contemporary Cylindrical Shape Cupboard Knob - Satin Stainless Steel - 16mm Diameter Knob - Each
£4.70 £3.92

Per Each
20007.2 - Contemporary Cylindrical Shape Cupboard Knob - Satin Stainless Steel - 20mm Diameter Knob - Each
£6.48 £5.40

Per Each
20007.3 - Contemporary Cylindrical Shape Cupboard Knob - Satin Stainless Steel - 25mm Diameter Knob - Each
£7.78 £6.48

Per Each
20007.4 - Contemporary Cylindrical Shape Cupboard Knob - Satin Stainless Steel - 30mm Diameter Knob - Each
£12.24 £10.20

Per Each
  • Contemporary design cylinder shape cupboard door knobs with finger groove.
  • Made from solid stainless steel these knobs are a brushed / satin finish.
  • Cylinder design with a small finger recess grooved into the bottom of the knob for use as a grip to pull with..
  • High architectural quality range, each knob is made from solid stainless steel giving them a heavy luxurious feel.
  • This popular cylindrical design is ideal for use on, kitchen cabinet doors, wardrobes, cupboard doors and drawers.
  • Available in four sizes from a small 16mm diameter up to a large 30mm diameter.

Size Details

Item CodeKnob DiameterProjection From Door
20007.1 16mm 20mm
20007.2 20mm 24mm
20007.3 25mm 30mm
20007.4 30mm 38mm

Base Material

  • Made from solid stainless steel.

Finish Details

  • Satin stainless steel - a grey colour with very slight golden undertones. The raw stainless steel has been satinised "brushed" to produce visible brush marks in the surface of the item.

Alternative Finishes Available

  • Polished stainless steel - (shiny finish.)

Fixings

  • This cupboard knob is fitted via a M4 bolt from the rear of the door / drawer - see below diagram.

Diagram-Showing How A Knob Bolts Through A Door / Drawer

  • Bolt through fixings provide a superior strong fixing allowing this knob to be fitted to tall or heavy doors.
  • Comes supplied with a 25mm long bolt - suitable for use on 18mm thick doors.
  • For doors thicker then 18mm, longer M4 fixing bolts are available to buy separately (See related products below).

Alternative Fixings

  • For fixing two cupboard knobs back to back on either side of a door, a length of M4 stud is required to screw the two knobs together. - See related products below.
  • For face fixing a cupboard knob by screwing it directly into the front of a wooden door or drawer, a dual M4 / Wood screw is required. - See related products below.

Usage

  • Suitable for internal use.
  • For doors thicker then 18mm please purchase longer M4 fixing bolts. (See related products below).

Unit Of Sale

  • These cupboard knobs are sold individually - (Each).
More Information
Item 20007
Item Code 20007
Finish Satin Stainless Steel
Sold Per Each
Availability Stock Item
Download PDF Data Sheet
