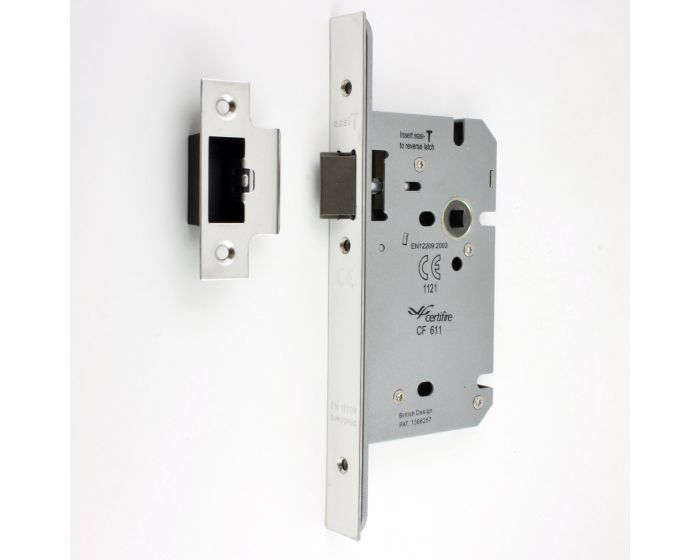

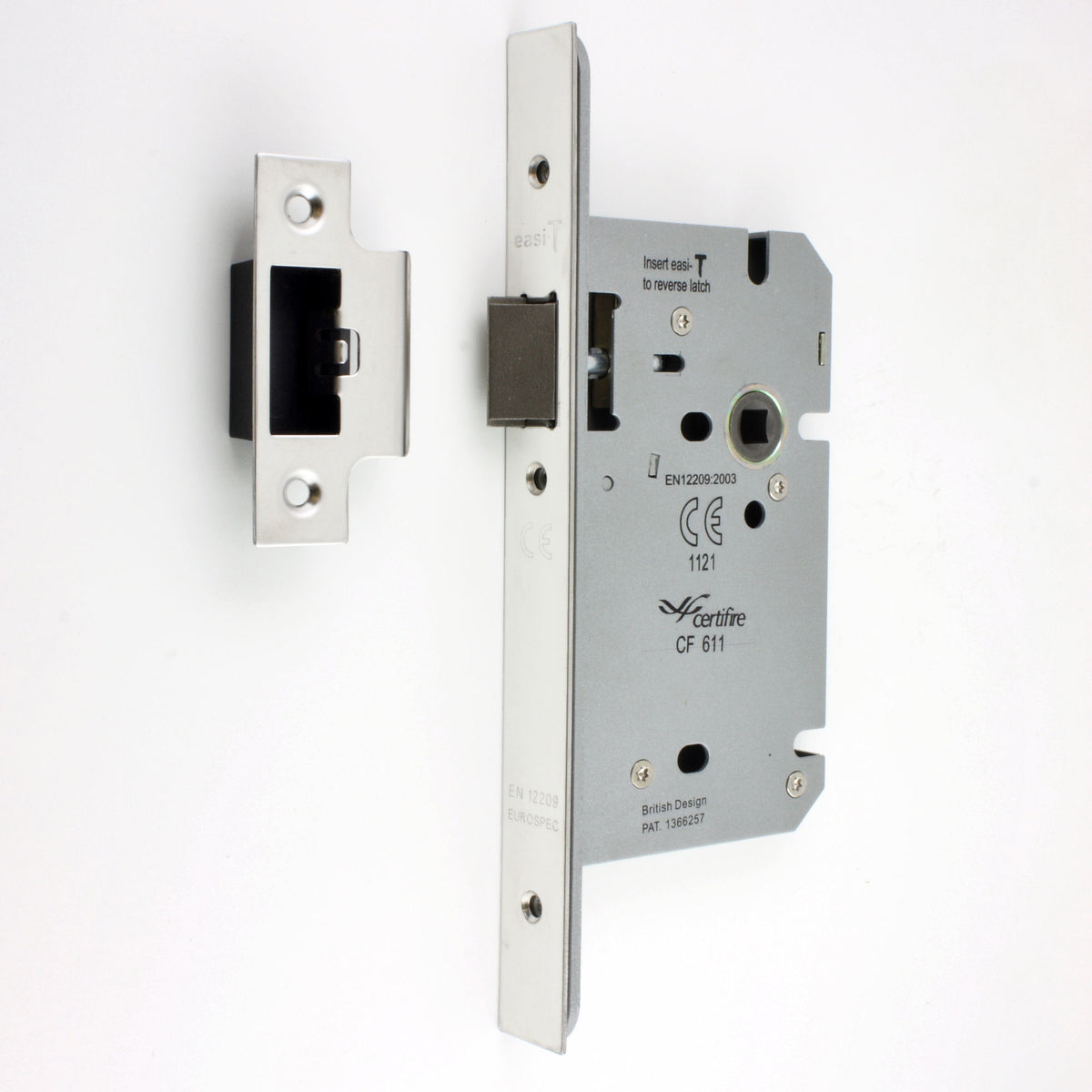

Architectural Quality DIN Style Mortice Latch - CE / UKCA Marked - Fire Rated - Certifire Approved - Polished Stainless Steel

Catalogue Number:
40670
Full Description Related Products
Product Name Price Qty
40670.1 - Architectural Quality DIN Style Mortice Latch - CE / UKCA Marked - Fire Rated - Certifire Approved - 85mm Case Depth (60mm Backset) - Polished Stainless Steel
£23.76 £19.80

Per Each
Enquire Now
  • Euro profile DIN standard mortice latch.
  • Polished stainless steel - (shiny finish).
  • Case size 150mm x 85mm.
  • 60mm backset
  • Satisfies BS 8300 and Approved Doc M (ADM). - Suitable for use in public and commercial buildings.
  • For use on doors that require lever door handles that do not need to be locked.
  • Must be used in conjunction with some form of door handle.
  • Comes supplied with polished (shiny) stainless steel forend and frame mounted strike plate.

Operation

  • Latch is withdrawn via a lever handle from either side of the door. (handles sold separately).

Features

  • Heavy duty lock case and stainless steel striker plate for the door frame.
  • Solid stainless steel deadbolt and latch.
  • Dual latch springing - spring strength can be adjusted on site to suit sprung or un-sprung lever furniture.
  • Bolt through facility for bolt together fixing of lever handles and accessories at 38mm centers.
  • Solid investment cast 8mm x 8mm spindle follower (to suit standard UK size spindles).
  • 10 year mechanical guarantee as standard.
  • Patented Easi-T latch reversal mechanism. - Latch can be reversed on site without taking the lock case apart.
  • Reversible and adjustable strike plate.
  • Complete with black plastic frame box keep to sit behind the strike plate.

Finish

  • Polished stainless steel - (shiny finish).



Alternative Finishes Available

  • Satin stainless steel
  • PVD Brass finish

Dimensions


dimensions of the Eurospec DIN standard mortice latch DLS0060LSSS


Item CodeLock Case Depth (A)Backset To Keyhole (B)Case Height
40670.1 85mm 60mm 150mm

Standards This Product Conforms To

  • Lock case tested and passed to BS EN 12209. The British / European standard requirements and test methods covering locks and latches. Classification number - 3M810F3BA00.
  • Tested and passed to BS EN 1634 the British / European standard for determining the fire resistance of door and shutter assemblies including hardware. Assessed for use on 30 minute and 1 hour timber fire doors FD30 / FD60.- Intumescent lock case liners required (sold separately).
  • Certifire approved.
  • CE Marked / UKCA Marked
  • Declaration of performance (DoP) - please see the additional information tab to download the certificate.

Options Available To Order

  • This lock is also available to order with radius (rounded shape) forened and strike plates. Please contact us for lead times and prices.
  • Intumescent lock case liners to suit the DIN standard lock range are available. Please see our intumescent fire rated products category.

Rebate Kit For Double Rebated Doors

  • There is currently no polished finish rebate kit available to suit this lock.



Unit Of Sale

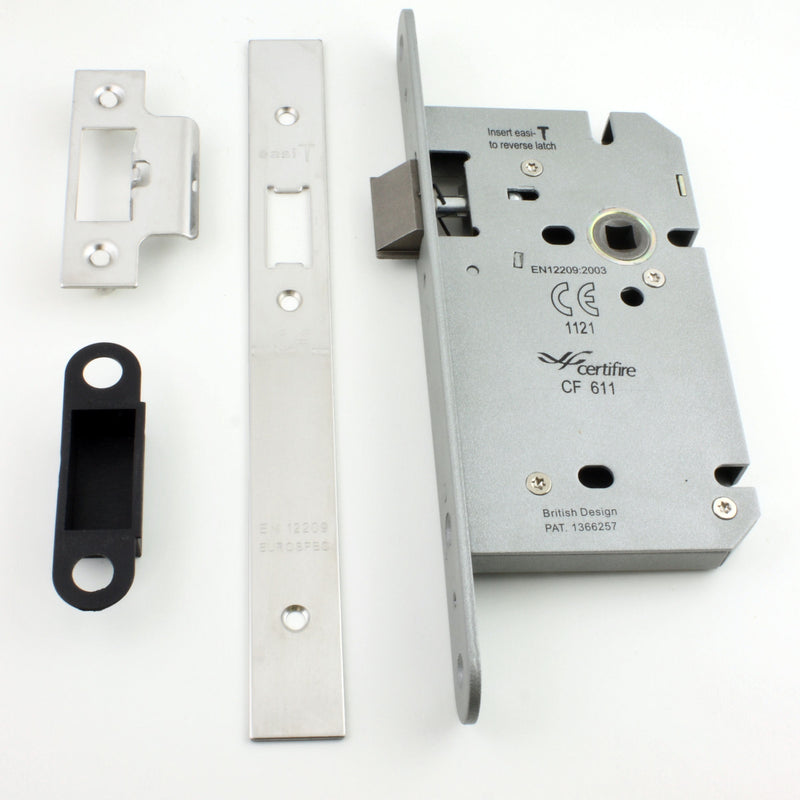

  • Each - (1 x lock case supplied with forend, strike plate and black plastic back box).
More Information
Item 40670
Item Code 40670
Finish Polished Stainless Steel
Dimensions 85mm Case Depth (60mm Backset)
Fire Rated FD30 / FD60 - Fire Rated
Sold Per Each
Availability Non stock product - please allow 3-7 days for delivery
Non stock product - please allow 3-7 days for delivery
Download PDF Data Sheet
