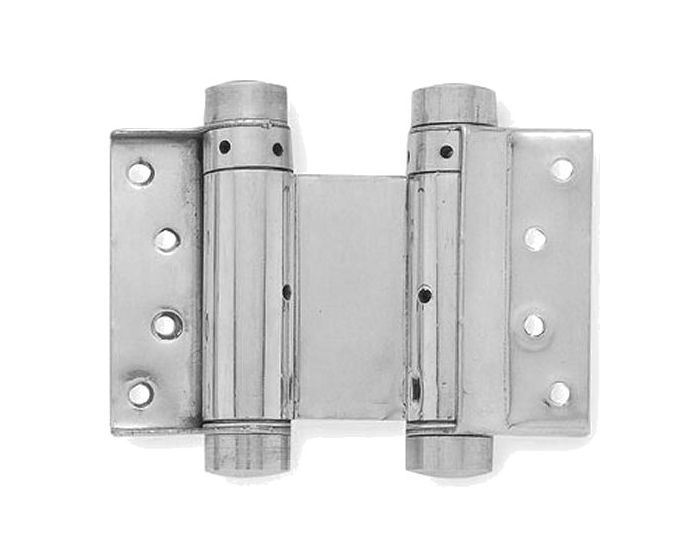

Double Action Spring Hinges - For Double Swing Doors - Silver Finish

Catalogue Number:
15153
Full Description
Product Name Price Qty
15153.1 - Double Action Spring Hinges - For Double Swing Doors - 76mm x 66mm (To Suit Door Thicknesses 18mm - 25mm) - Silver Grey - Pair
£22.46 £18.72

Per Pair - (2 Hinges)
15153.2 - Double Action Spring Hinges - For Double Swing Doors - 102mm x 75mm (To Suit Door Thicknesses 25mm - 30mm) - Silver Grey - Pair
£29.93 £24.94

Per Pair - (2 Hinges)
15153.3 - Double Action Spring Hinges - For Double Swing Doors - 125mm x 85mm (To Suit Door Thicknesses 30mm - 35mm) - Silver Grey - Pair
£42.17 £35.14

Per Pair - (2 Hinges)
15153.4 - Double Action Spring Hinges - For Double Swing Doors - 152mm x 95mm (To Suit Door Thicknesses 35mm - 40mm) - Silver Grey - Pair
£55.42 £46.18

Per Pair - (2 Hinges)
15153.5 - Double Action Spring Hinges - For Double Swing Doors - 175mm x 107mm (To Suit Door Thicknesses 40mm - 45mm) - Silver Grey - Pair
£81.12 £67.60

Per Pair - (2 Hinges)
  • Double action "Bomber style" spring hinges.
  • Designed for use on doors that need to swing in two directions (through 180 degrees).
  • Please note these hinges are not fire rated.
  • Spring loaded knuckles with adjustable spring strength.
  • Made from steel, with a silver powdercoated finish.

Dimensions:

Double action spring hinge dimensions diagram



Item CodeHeight (A)Width (B)Knuckle Diameter (C)To Suit Door Thickness (D)Max Door Weight
15153.1 76mm 66mm 19mm 18mm - 25mm 15kg
15153.2 102mm 75mm 21mm 25mm - 30mm 22kg
15153.3 125mm 85mm 23mm 30mm - 35mm 27kg
15153.4 152mm 95mm 25mm 35mm - 40mm 40kg
15153.5 175mm 107mm 29mm 40mm - 45mm 55kg
More Information
Item 15153
Item Code 15153
Finish Silver
Sold Per Pair - (2 Hinges)
Availability Stock Item
Download PDF Data Sheet
