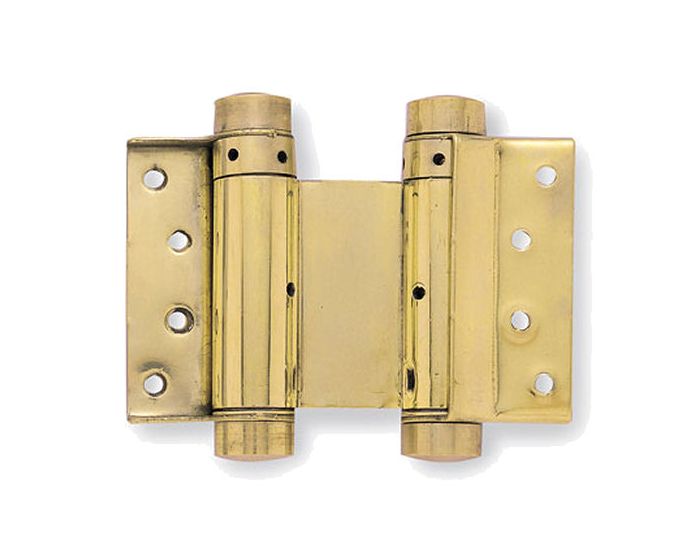

Double Action Spring Hinges - For Double Swing Doors - Polished Brass - Four Sizes

Catalogue Number:
15151
Full Description
Product Name Price Qty
15151.1 - Double Action Spring Hinges - For Double Swing Doors - 76mm x 66mm (To Suit Door Thicknesses 18mm - 25mm) - Polished Brass - Pair
£31.90 £26.58

Per Pair - (2 Hinges)
15151.2 - Double Action Spring Hinges - For Double Swing Doors - 102mm x 75mm (To Suit Door Thicknesses 25mm - 30mm) - Polished Brass - Pair
£37.82 £31.52

Per Pair - (2 Hinges)
15151.3 - Double Action Spring Hinges - For Double Swing Doors - 125mm x 85mm (To Suit Door Thicknesses 30mm - 35mm) - Polished Brass - Pair
£52.39 £43.66

Per Pair - (2 Hinges)
15151.4 - Double Action Spring Hinges - For Double Swing Doors - 152mm x 95mm (To Suit Door Thicknesses 35mm - 40mm) - Polished Brass - Pair
£66.19 £55.16

Per Pair - (2 Hinges)
  • Double action "Bomber style" spring hinges.
  • Designed for use on doors that need to swing in two directions (through 180 degrees).
  • Please note these hinges are not fire rated.
  • Spring loaded knuckles with adjustable spring strength.
  • Made from steel, with a polished brass finish.

Dimensions:

Double action spring hinge dimensions diagram



Item CodeHeight (A)Width (B)Knuckle Diameter (C)To Suit Door Thickness (D)Max Door Weight
15151.1 76mm 66mm 19mm 18mm - 25mm 15kg
15151.2 102mm 75mm 21mm 25mm - 30mm 22kg
15151.3 125mm 85mm 23mm 30mm - 35mm 27kg
15151.4 152mm 95mm 25mm 35mm - 40mm 40kg
More Information
Item 15151
Item Code 15151
Finish Polished Brass
Sold Per Pair - (2 Hinges)
Availability To Order (2 - 3 Days)
