Eclisse Sliding Pocket Door System - Double Door Kit - To Suit 125mm Wall Thickness
Eclisse Sliding Pocket Door System - Double Door Kit - To Suit 125mm Wall Thickness
Eclisse Sliding Pocket Door System - Double Door Kit - To Suit 125mm Wall Thickness

1/3

Product Code: 40155.1

Eclisse Sliding Pocket Door System - Double Door Kit - 125mm Finished Wall Thickness

4.9 · 1954 verified reviews Verified on Trustpilot
View full specifications
Kit
Klarna. Pay in 3 interest-free payments of .

Eclisse Sliding Pocket Door System - Double Door Kit

£549.60

  • Free delivery over £100
  • 30-day returns
  • Secure checkout — Shop Pay, Klarna, Apple & Google Pay
Specifying for a project? RegAI
Speak to one of our team for advice & guidance.

Product Details

  • The Eclisse double sliding door gear system is designed for use with sliding double internal pocket hideaway doors weighing up to 80kg.
  • Allows interior doubles doors to slide into "pockets" within the wall cavity.
  • Each set includes all the main components needed to install a long lasting, smooth running double sliding doors including steel wrapped studs used to create the wall cavity or "pocket" for the door to slide into. (Doors and plasterboard not included).
  • This high quality sliding door gear is suitable for residential and commercial applications. The unique design allows doors between 35mm-45mm thick to be installed with a finished wall of 125 mm.
  • Supplied as a kit to create two pockets.
  • Can be fully fitted in under 60 minutes by a skilled installer.
  • Suitable for use with timber doors only - doors not included. (Eclisse kits to suit glass doors are also available).

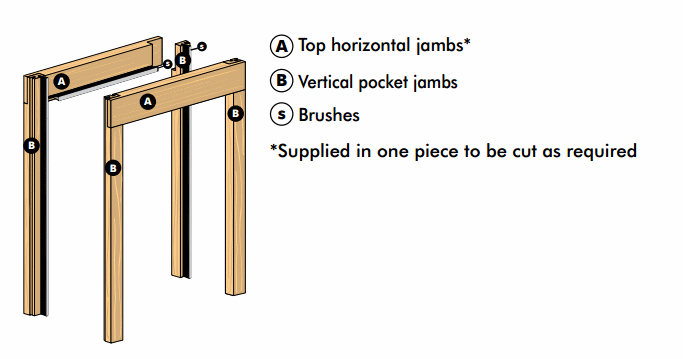

  • Unlike other pocket door systems on the market the Eclisse system comes supplied complete with timber lining - jamb kits.

Accessories Available To Suit The Eclisse Double Door System

  • Soft close mechanism - to dampen softly close the sliding door. - (sold separately).
  • Self closing mechanism - automatically pulls the door closed each time the door had been opened. Please note that two self close mechanisms are required (one for each door) for the set to be self closing - (sold separately).
  • Double door co-ordinator - sliding open one of the doors automatically opens the second door at the same time.- (sold separately).
  • Motorised units - to automatically open the door. (sold separately).

Dimensions - Frame Sizes & Door Kit Sizes Available



Item Code Door Size - Each Door (DW x DH) Max Passage Size (PW x PH) Overall Frame Size (W x H) Finished Wall Thickness
40155.1 610mm x 1981mm - (2ft. 0in. x 6ft. 6in.) 1170mm x 1971mm 2464mm x 2061mm 125mm*
40155.2 686mm x 1981mm - (2ft. 3in. x 6ft. 6in.) 1322mm x 1971mm 2816mm x 2061mm 125mm*
40155.3 762mm x 1981mm - (2ft. 6in. x 6ft. 6in.) 1474mm x 1971mm 3168mm x 2061mm 125mm*
40155.4 838mm x 1981mm - (2ft. 9in. x 6ft. 6in.) 1626mm x 1971mm 3320mm x 2061mm 125mm*
40155.5 914mm x 1981mm - (3ft. 0in. x 6ft. 6in.) 1800mm x 1971mm 3694mm x 2061mm 125mm*
40155.6 626mm x 2040mm 1200mm x 2030mm 2494mm x 2120mm 125mm*
40155.7 726mm x 2040mm 1400mm x 2030mm 2894mm x 2120mm 125mm*
40155.8 826mm x 2040mm 1600mm x 2030mm 3294mm x 2120mm 125mm*
40155.9 926mm x 2040mm 1800mm x 2030mm 3694mm x 2120mm 125mm*
40155.10 1026mm x 2040mm 2000mm x 2030mm 4094mm x 2120mm 125mm*
  • * Double door kit to suit a 100mm finished wall thickness also available - see product 40154
  • Please note plasterboard is not provided with this kit and must be bought separately.
  • Non stock product - sent direct from factory - please allow 1-2 working days for delivery
  • Free delivery on orders over £100 (£5.95 below).
  • 30-day returns

Describe this product detail here.

G Johns & Sons Ltd

G Johns & Sons Ltd · Est. 1888 · GAI · RegAI Registered

020 8360 7771 · sales@gjohns.co.uk

Scan to view product online

Scan for product page

Eclisse Sliding Pocket Door System - Double Door Kit - 125mm Finished Wall Thickness

SKU FJ-610-D-125W  ·  Concealed Sliding Pocket Door Kits  ·  £549.60 inc VAT

Technical

Specification & Dimensions

Technical Drawings

Downloads

Eclisse Standard Double Sliding Pocket Door Kit Instructions 100mm - 125mm Frames
Need it confirmed for your project? Call our team on 020 8360 7771.
