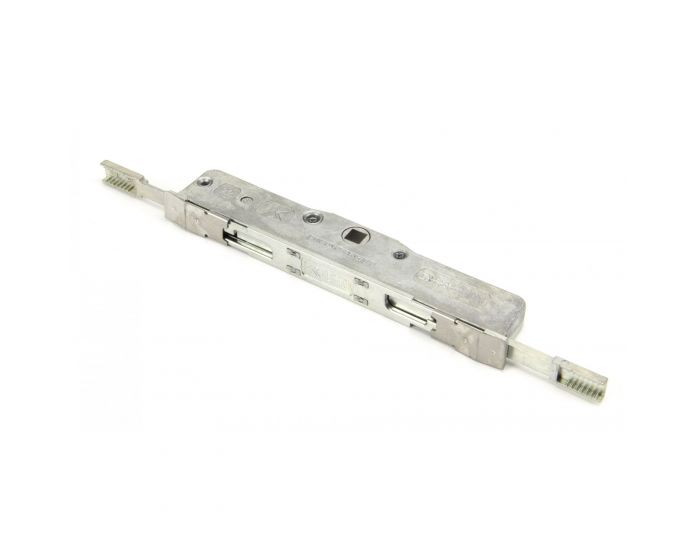

Espagnolette Multipoint Window Gear Box Mechanism - (No Claws For Double Windows With No Centre Mullion) - 30mm Case Depth (25mm Backset)

Catalogue Number:

44497

Product Name Price Qty

44497.1 - Espagnolette Multipoint Window Gear Box Mechanism - (No Claws For Double Windows With No Centre Mullion) - 30mm Case Depth (25mm Backset) - (Shoot Bolts & Keeps Sold Separately)

£17.29 £14.41

Per Each

Enquire Now

Description

Espagnolette multi-point window gear box mechanism for double windows with no central mullion.

30mm case depth - 25mm Backset.

For use with our range espagnolette / multi-point locking window handles.

2 point locking via top & bottom shoot bolts.

Maximum window height of 2000mm when used with 2 x 44492.6 shoot bolts and 2 x 44494.1 extension rods.

Salt spray corrosion resistance in excess of 500 hours.

Tested to BS7950, Secured By Design and BBA approved.

Please see the list of additional items required at the bottom of the page (sold separately).

Size Details

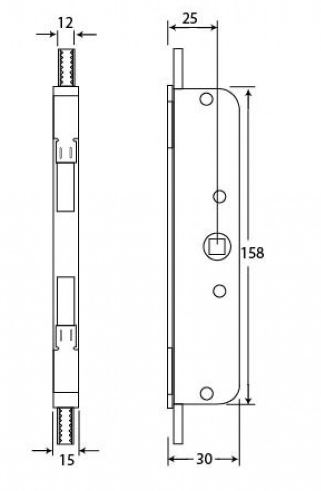

Diagram Showing Dimensions Of The Espagnolette Multipoint Window Gear Box Mechanism - With Centre Claw Locks - 25mm Backset

Item Code	Case Depth	Backset	Body Dimensions	Spindle Size
44497	30mm	25mm	158mm x 15mm	7mm x 7mm

Finish Details

Zinc plated

Additional Items Required (Sold Separately)

Multi-point window handles - view category

Shoot bolts - see product 44492 - (2 required per window).

Shoot bolt keeps - see product 44493 - (2 required per window).

Download

Download PDF Data Sheet

Specification

More Information
Item	44497
Item Code	44497
Finish	Zinc Plated
Dimensions	30mm Case Depth (25mm Backset)
Sold Per	Each
Availability	Non stock product - please allow 3-7 days for delivery
