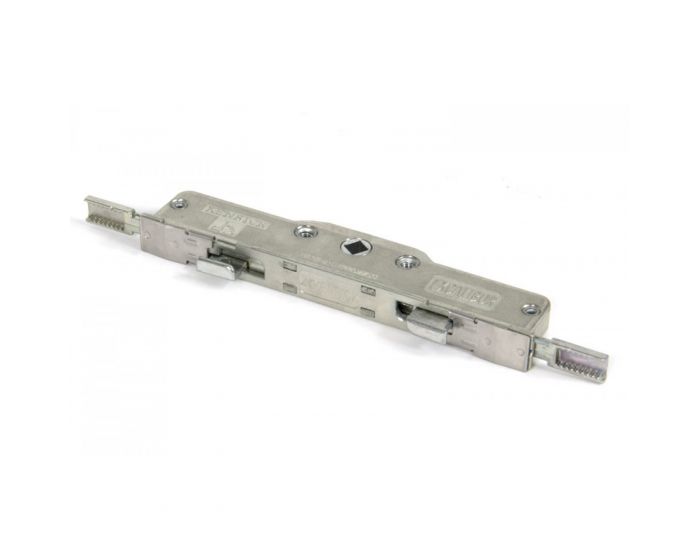

Espagnolette Multipoint Window Gear Box Mechanism - With Centre Claw Locks - 25mm Backset

Catalogue Number:
44490
Full Description Related Products
Product Name Price Qty
44490.1 - Espagnolette Multipoint Window Gear Box Mechanism - With Centre Claw Locks - 30mm Case Depth (25mm Backset) - (Shoot Bolts & Keeps Sold Separately)
£16.66 £13.88

Per Each
Enquire Now
  • Espagnolette multi-point window gear box mechanism with centre claw locks.
  • 30mm case depth - 25mm Backset.
  • For use with our range espagnolette / multi-point locking window handles.
  • 3 point locking via centre claws with top & bottom shoot bolts.
  • Maximum window height of 2000mm when used with 2 x 44492.6 shoot bolts and 2 x 44494.1 extension rods.
  • Centre claws lock securely into a very substantial centre keep (sold separately)Whilst two steel shootbolts (sold separately) lock into the corners of the window for incredible resistance against attack.
  • Salt spray corrosion resistance in excess of 500 hours.
  • Tested to BS7950, Secured By Design and BBA approved.
  • Please see the list of additional items required at the bottom of the page (sold separately).

Size Details

Diagram Showing Dimensions Of The Espagnolette Multipoint Window Gear Box Mechanism - With Centre Claw Locks - 25mm Backset



Item CodeCase DepthBacksetBody DimensionsSpindle Size
44490 30mm 25mm 158mm x 15mm 7mm x 7mm

Finish Details

  • Zinc plated

Additional Items Required (Sold Separately)

  • Centre keep - see product 44491
  • Shoot bolts - see product 44492 - (2 required per window).
  • Shoot bolt keeps - see product 44493 - (2 required per window).
More Information
Item 44490
Item Code 44490
Finish Zinc Plated
Dimensions 30mm Case Depth (25mm Backset)
Sold Per Each
Availability Non stock product - please allow 3-7 days for delivery
Non stock product - please allow 3-7 days for delivery
