Euro Cylinder Deadlock - Key / Thumb-Turn Operated BS8621 Rated - CE / UKCA Marked - Fire Rated - Certifire Approved - Polished Chrome

• Euro profile British Standard rated cylinder deadlock with internal thumb-turn operation.

• Kite marked security lock for front doors. Tested to the British standard BS 8621.

• Keyless egress (door can be locked and unlocked from the inside without the use of a key).

• Meets fire regulations for locking front doors to flats in multi-dwelling buildings. (In an emergency situation the user can always escape and unlock the door without the use of a key).

• Insurance approved, BS 8621 rated.

• Key operation from the outside and thumb-turn operation from inside of the door via Euro profile key / turn cylinder.

• Complete set comes supplied with 1x mortice lock, 1x 70mm euro profile 6 pin cylinder and 2x security escutcheons.

• Polished stainless steel finish.

• Police preferred specification - Secured By Design (SBD) approved with anti-pick and ant-drill pins.

• Mortice lock available in two sizes 64mm or 76mm (case depth).

• Supplied with 3 keys

Operation

• Key / Turn double cylinder - key operation from outside side (secure side) and thumb turn operation from the inside of the door (non secure side).

• The door can be locked and un-locked by turning the thumb turn knob from the inside of the door or via key on the outside of the door.

• Comes supplied with 3 keys and a cylinder fixing screw.

• Key differed - if ordering more then one, the cylinders will come with different keys.

• Suitable for use on timber doors.

Security Level

• 6 pin BS rated cylinder tested to BS EN 1303.

• Stainless steel deadbolt with 20mm throw.

• Police preferred specification - Secured By Design (SBD) approved.

• Special anti-pick pins inside cylinder.

• Anti-drill with stainless steel hardened inserts in cylinder housing and plug.

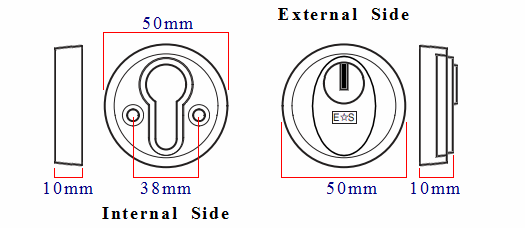

• Anti-drill, anti-hammer and anti-snap security escutcheons.

• High security, suitable for use on external front doors.

• Note If fitting a thumb turn cylinder to a front or back door be aware that if a burglar were to break any glass in the door they could in theory reach down to thumb turn and unlock the mortice lock.

Finish

• Polished stainless steel - (shiny finish).

Alternative Finishes Available

• Satin stainless steel.

• PVD brass.

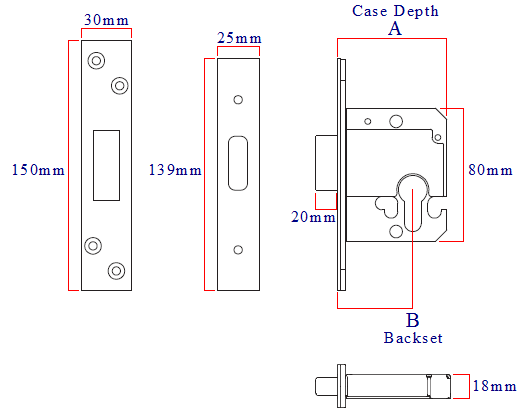

Dimensions

Standards This Product Conforms To

• Police preferred specification - Secured By Design (SBD) approved.

• Kite marked - This lock set meets the current British standard for locks fitted to external doors, including front doors to flats.

• Insurance approved lock.

• Meets fire regulations for locking front doors to flats in multi-dwelling buildings. (In an emergency situation the user can always escape and unlock the door without the use of a key).

• Tested and passed to BS 8621:2007.**  The British standard requirements and test methods covering thief resistant lock assemblies with keyless egress (keyless egress - operating the lock with out a key from the inside of the door. In this instance via a thumb-turn). **To meet this British standard the lock must be fitted with the supplied 6 pin cylinder and supplied security escutcheons.

• Lock case tested and passed to BS EN 12209. The British / European standard requirements and test methods covering locks and latches. Classification number - 2H810F7BA00.

• 6 pin cylinder tested and passed to BS EN 1303. The British / European standard requirements and test methods covering cylinders for locks. Classification number - 16010C62.

• Tested and passed to BS EN 1634 the British / European standard for determining the fire resistance of door and shutter assemblies including hardware. Assessed for use on 30 minute and 1 hour timber fire doors FD30 / FD60.

• CE Marked / UKCA Marked.

• Declaration of performance (DoP) - please see the additional information tab to download the certificate.

Options Available To Order

• Keyed Alike (KA) - A batch of cylinders all under the same one key.

• Under Master Key (UMK) - A batch of cylinders all under different keys with one master key which operates any of the cylinders.

• Please contact us for more information and lead times and prices for the above options.

Unit Of Sale

• Set - (1x Dead Lock, 1x Cylinder 2x Security Escutcheons)
