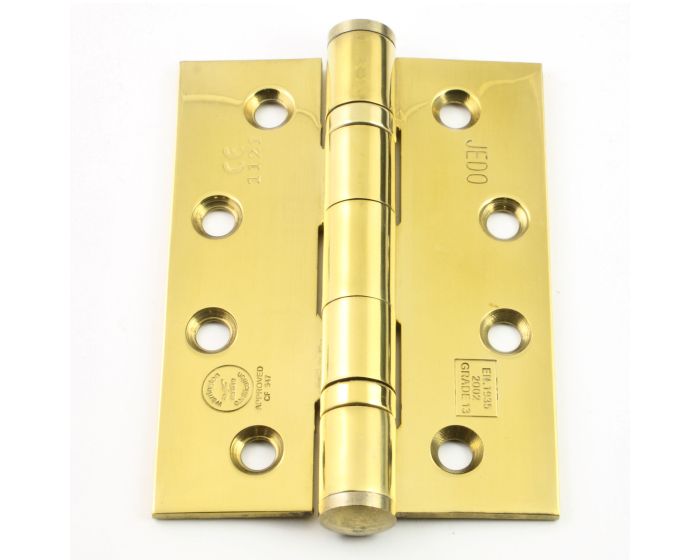

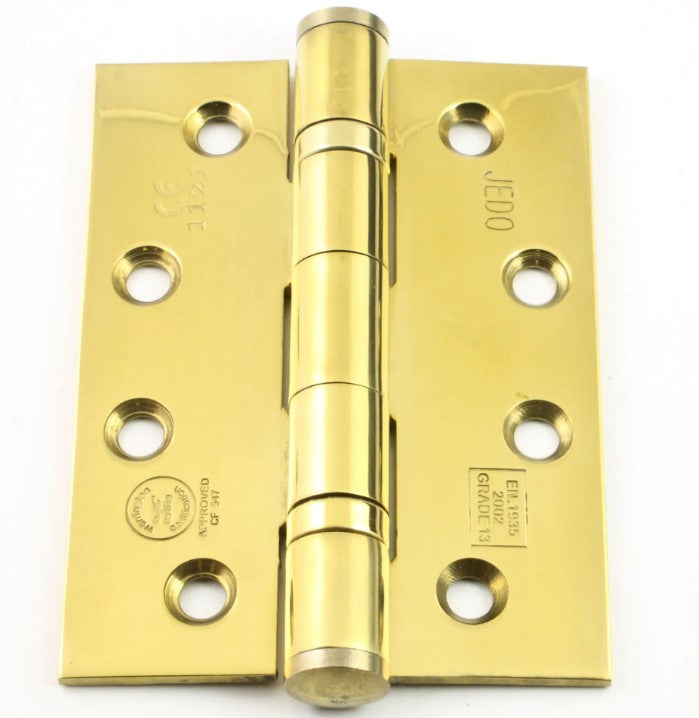

Ball Bearing Fire Rated Door Hinges - Grade 13 - CE Marked - Certifire Approved - 120kg Weight Limit - 102mm x 76mm - Polished Brass Plated

Catalogue Number:
Full Description Related Products
Product Name Price Qty
15524.1 - Ball Bearing Grade 13 Fire Rated Hinges - CE Marked - Certifire Approved - 120kg Weight Limit - 102mm x 76mm - Brass Plated - Pair
£10.97 £9.14

Per Pair - (2 Hinges)
  • 15524.1- Grade 13 ball bearing hinges -102mm x 76mm (4" x 3")
  •  One hour fire rated hinges suitable for use on internal or external timber doors
  • Tested and passed to the British / European standard BS EN 1935 suitable for use on fire doors up to 120kg in weight
  • Ball bearings located in the knuckle of hinge provide a smooth action, excellent strength and high wear-ability

Base Material

  • Stainless steel


  • Electro brass plated - EB

Alternative Finishes Available

  • Polished stainless steel
  • Satin stainless steel
  • Florentine bronze


Diagram of a hinge
Dimension On Diagram
Height (H)
Width (W)
Leaf Width
Knuckle Diameter


Standards This Product Conforms To

  • Tested and passed to BS EN 1935* the British / European standard requirements and testing methods covering single axis hinges. Classification number - 4-7-6-1-1-4-0-13.
  • *To meet this standard 2mm thick intumescent liners should be fitted behind each leaf of the hinge.
  • Tested and passed to BS EN 1634 the British / European standard for determining the fire resistance of door and shutter assemblies including hardware. These hinges have been assessed for use on 30 minute and 1 hour timber fire doors FD30 / FD60.
  • CE Marked

Classification Details

  • Durability grade 7 - tested to 200,000 opening & closing cycles
  • Test door mass grade 6 - suitable for use on doors up to 120kg in weight
  • Corrosion resistance grade 4 - high resistance to corrosion in accordance to EN 1670
  • Overall hinge grade 13


  • Suitable for use 44mm and 54mm thick wooden doors
  • To pass fire regulations three hinges must be fitted per door (pair and a half).

Unit Of Sale

  • The 15524.1 hinges are sold and priced in pairs (2 hinges) and come supplied with fixing screws.
More Information
Item 15524
Item Code 15524
Finish Brass Plated
Dimensions 102mm x 76mm
Fire Rated FD30 / FD60 - Fire Rated
Sold Per Pair - (2 Hinges)
Availability Stock item - please allow 1-3 days for delivery
Stock item - please allow 1-3 days for delivery
Download PDF Data Sheet
