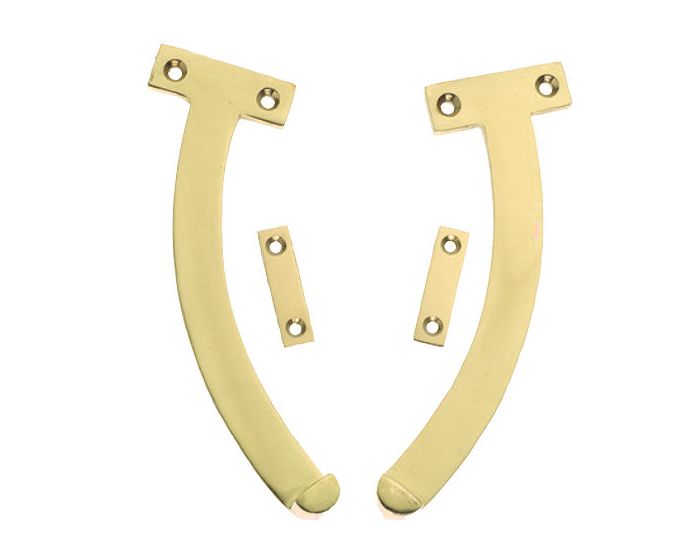

Fixed Quadrant Arm Stays For Fanlight Windows - Polished Brass

Catalogue Number:
21463
Full Description
Product Name Price Qty
21463.1 - Fixed Quadrant Arm Stays For Fanlight Windows - Polished Brass - 152mm - Pair
£15.84 £13.20

Per Pair
21463.2 - Fixed Quadrant Arm Stays For Fanlight Windows - Polished Brass - 204mm - Pair
£18.72 £15.60

Per Pair
  • Fixed quadrant arm stays for fanlight windows

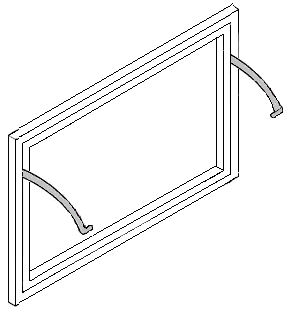

  • The quadrant arms are fixed in position so when the fanlight is closed the stays will remain in position projecting from the window - SEE BELOW DIAGRAM
    Diagram showing fixed quadrant stays when the fan light window is in the closed position

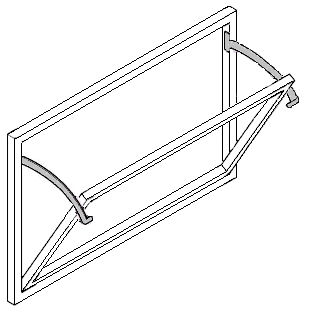

  • When the fanlight window is in the open position it rests on the quadrant stays and restricts the window from opening too far - SEE BELOW DIAGRAM
    Diagram showing fixed quadrant arm stays when the fan light window is in the open position

Finish

  • Polished brass

Dimensions

Available in two lengths

  • 21463.1 - 152mm
  • 21463.2 - 203mm
Diagram showing sizes and dimensions of a fanlight quadrant stay for a fan light window

21463.1
21463.2
Dimension On Diagram
Length Of Quadrant Stay
152mm
204mm
A
Height
40mm
55mm
B
Backplate Size
45mm x 17mm
45mm x 17mm
C
Tag Length
13mm
13mm
D
Thickness
4mm
4mm
E
Strike Plate
36mm x 10mm
36mm x 10mm
F

Important Info Before You Buy

  • Suitable for use on bottom hinged, opening inward wooden fanlight windows
  • Comes supplied with strike plate to help protect fanlight window
  • SOLD PER PAIR (2 Quadrant Stays)
More Information
Item 21463
Item Code 21463
Finish Polished Brass
Sold Per Pair
Availability Stock Item
Download PDF Data Sheet
