Fixed Quadrant Arm Stays For Fanlight Windows - Polished Chrome

Catalogue Number:
21270
Full Description
Product Name Price Qty
21270.1 - Fixed Quadrant Arm Stays For Fanlight Windows - Polished Chrome - 152mm - Pair
£16.70 £13.92

Per Pair
21270.2 - Fixed Quadrant Arm Stays For Fanlight Windows - Polished Chrome - 204mm - Pair
£21.60 £18.00

Per Pair

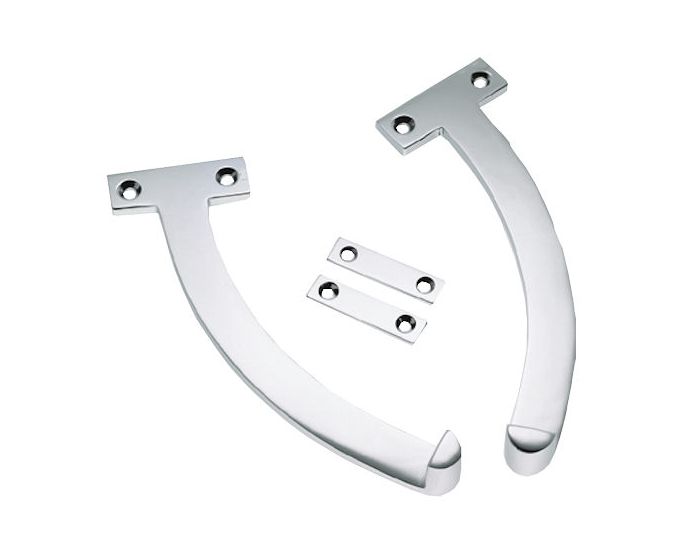

  • Fixed quadrant arm stays for fanlight windows
  • The quadrant arms are fixed in position so when the fanlight is closed the stays will remain in position projecting from the window - SEE BELOW DIAGRAM
    Diagram showing fixed quadrant stays when the fan light window is in the closed position
  • When the fanlight window is in the open position it rests on the quadrant stays and restricts the window from opening too far - SEE BELOW DIAGRAM
    Diagram showing fixed quadrant arm stays when the fan light window is in the open position

Finish

  • Polished chrome

Dimensions

Available in two lengths

  • 21270.1 - 152mm
  • 21270.2 - 203mm
Diagram showing sizes and dimensions of a fanlight quadrant stay for a fan light window

21270.1
21270.2
Dimension On Diagram
Length Of Quadrant Stay
152mm
204mm
A
Height
40mm
55mm
B
Backplate Size
45mm x 17mm
45mm x 17mm
C
Tag Length
13mm
13mm
D
Thickness
4mm
4mm
E
Strike Plate
36mm x 10mm
36mm x 10mm
F

Important Info Before You Buy

  • Suitable for use on bottom hinged, opening inward wooden fanlight windows
  • Comes supplied with strike plate to help protect fanlight window
  • SOLD PER PAIR (2 Quadrant Stays)
More Information
Item 21270
Item Code 21270
Finish Polished Chrome
Sold Per Pair
Availability Stock Item
