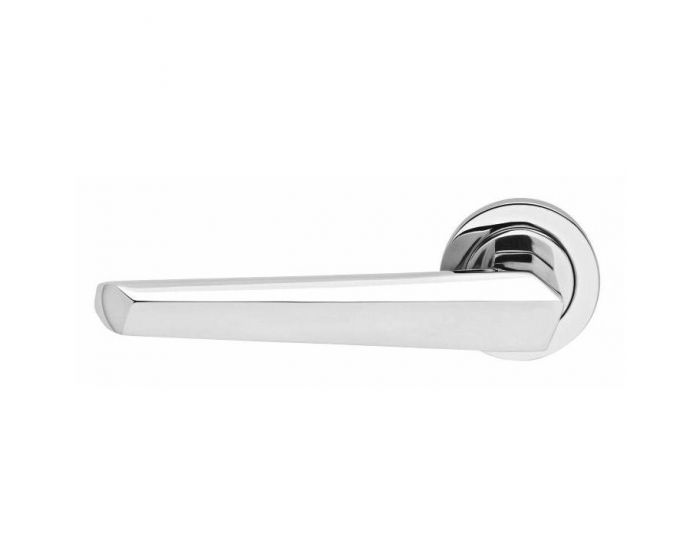

ER84-OS 72 Futura lever from the Karcher Design door handle collection. A unique contemporary design "angular" shape lever fitted to a round rose.
German design, high architectural quality and suitable for heavy use.
Made from grade 304 stainless steel - Polished (shiny) finish.
Uses the patented Karcher Design 3 piece rose fitting system to make these handles very strong once fitted to the door.
10mm screw on outer rose.
Tested to the European performance standard BS EN 1906 2002. Suitable for residential or commercial use.
Matching polished stainless steel accessories available including Standard escutcheons (keyhole covers), Euro profile escutcheons a bathroom turn & release set and a disabled bathroom turn and release set with a long easy grip thumbturn.
How To Order Lever Handles With A Rose
For Non-Locking Doors - 1 x (Pair) Lever Handles Only
For Locking Doors - 1 x (Pair) Lever Handles Only + 2 x (Each) Standard Escutcheons
For Euro Cylinder Locking Doors - 1 x (Pair) Lever Handles Only + 2 x (Each) Euro Escutcheons
For Locking Bathroom Doors - 1 x Pair Lever Handles Only + 1 x (Set) Turn & Emergency Release
Matching Accessories
Standard escutcheon - (key hole cover to suit regular "chubb style locks")
Euro profile escutcheon - (key hole cover to suit euro profile cylinders)
Turn & emergency release -(a thumbturn used to lock bathroom doors, WC's and toilet doors)
Base Material
Made from grade 304 stainless steel.
Finish Details
Polished stainless steel - a highly shiny mirror like finish with a very slight golden undertone. The raw stainless steel has been highly polished to produce a shiny mirror finish.
Alternative Finishes Available
Satin stainless steel - (brushed finish.)
Operation
Both levers are sprung to ensure the lever always returns to its starting position.
Size Information
Rose Diameter - 52mm
Rose Thickness - 10mm
Lever Length - 146mm
See technical information tab for diagram and further details.
Spindle Size
8mm x 8mm square - UK Standard.
Fixings
Comes supplied with male and female bolt through fixings and 8mm spindle.
Grub screw fixing to spindle for extra strength once fitted to the door.
Lever is fitted to the door using the Karcher Design patented 3 piece rose system.
Usage
Suitable for residential or commercial use.
Suitable for internal or external use.
Standards This Product Conforms To
Successfully type tested to the all the requirements of the European performance standard BS EN1906 2002
Category of use 3 - High frequency of use by public or others with little incentive to exercise with care and with a high chance of misuse.
Unit Of Sale
Lever handles are sold in pairs. (One pair consists of 1x left hand and 1x right hand.)
Escutcheons (key hole covers) are sold individually (each.)
Turn and emergency releases are sold as a set (One set consists of a rose with a thumbturn fitted to the inside of the door and a rose with a coin slot fitted to the outside of the door.)
