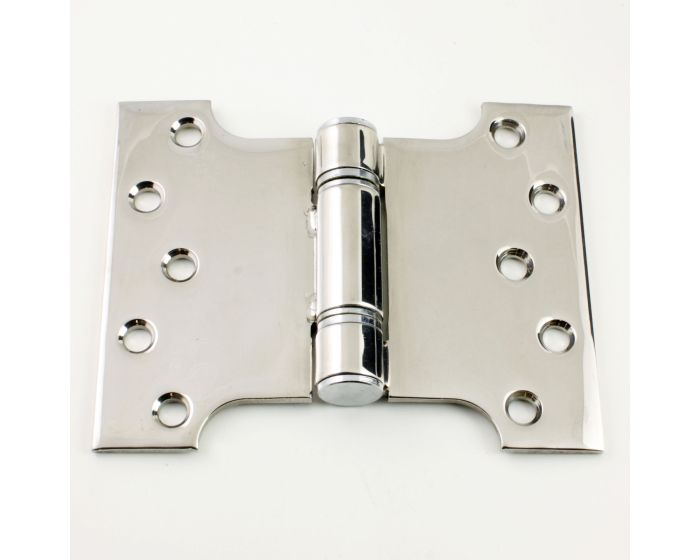

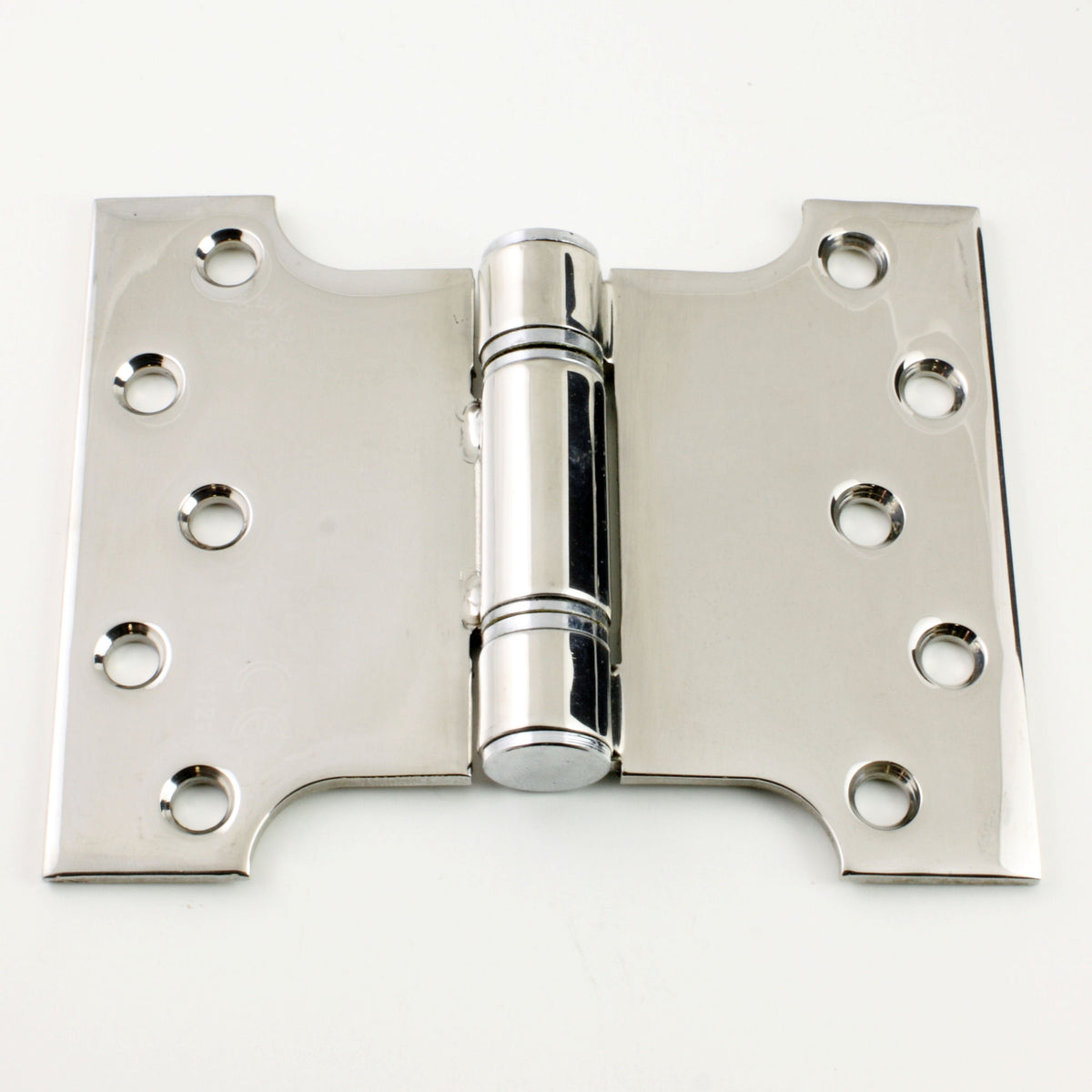

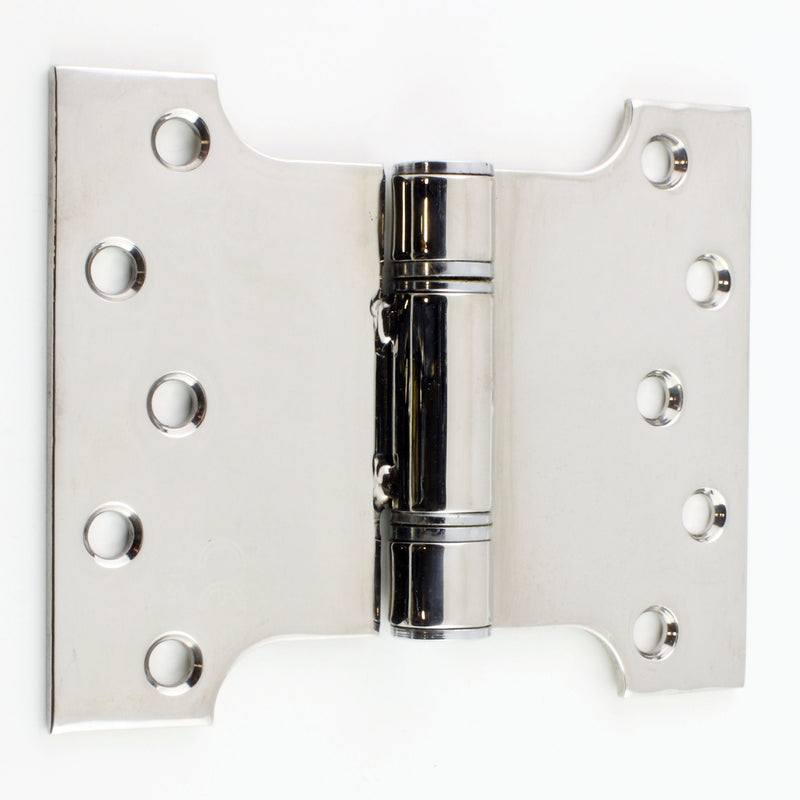

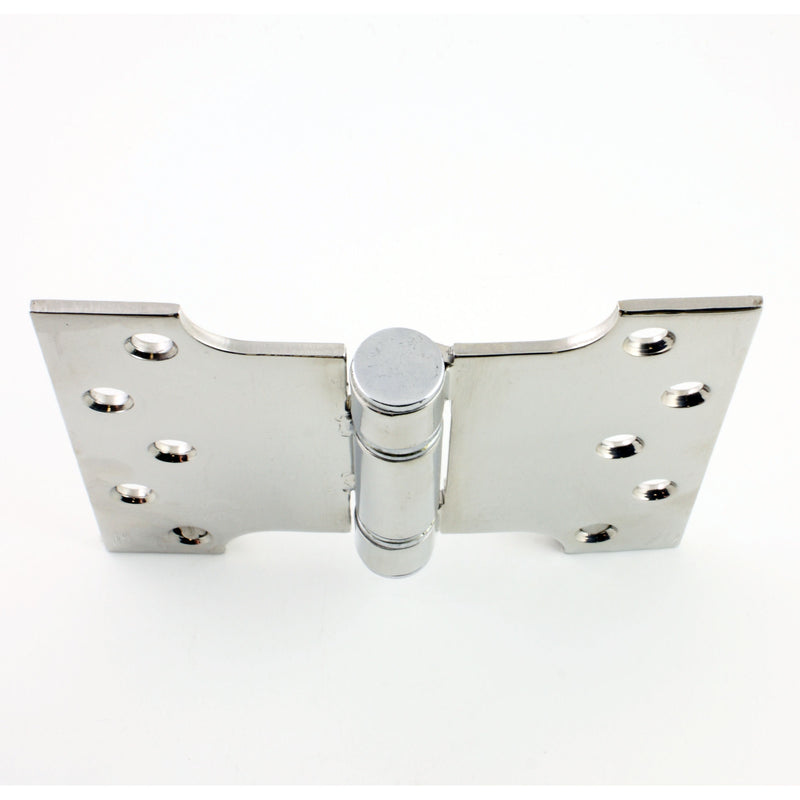

Fire Rated Parliament Projection Hinges - Grade 13 - CE / UKCA Marked - Certifire Approved - 120kg Weight Limit - Polished Stainless Steel

• Parliament projection hinges for double, patio and French doors.
• Projects doors clear of architraves, window boards or down pipes
• Hinges allow doors to fold back 180 degrees
• Suitable for doors up to 120kg (weight limit based on 3 x hinges)
• Heavy duty - for high use fire doors
• For exterior / interior use
• BS EN grade 13 - CE Marked / UKCA Marked

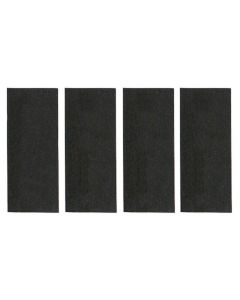

• Suitable for 60 minute fire doors, when used in conjunction with intumescent hinge pad liners,
• Measurements are leaf height x inside clearance x fully open width
• Inside clearance measurement is between the wings of the hinge and is the maximum projection you can achieve on lightweight doors
• For glazed or solid doors, inset the hinge leaf an additional 15% each side, for example 30% less projection
• 25 year guarantee

Finish

• Polished stainless steel

Dimensions

Available in 3 Sizes

31141.1 - (102mm x 102mm x 4mm)

31141.2 - (102mm x 127mm x 4mm)

31141.3 - (102mm x 152mm x 4mm)

Important Info Before You Buy

• Parliament hinges are used to help project or "throw" a door past an obstruction so it can fold back on it's self 180degrees

• Suitable for wooden doors

• Hinges are sold and priced in pairs and come supplied with screws
