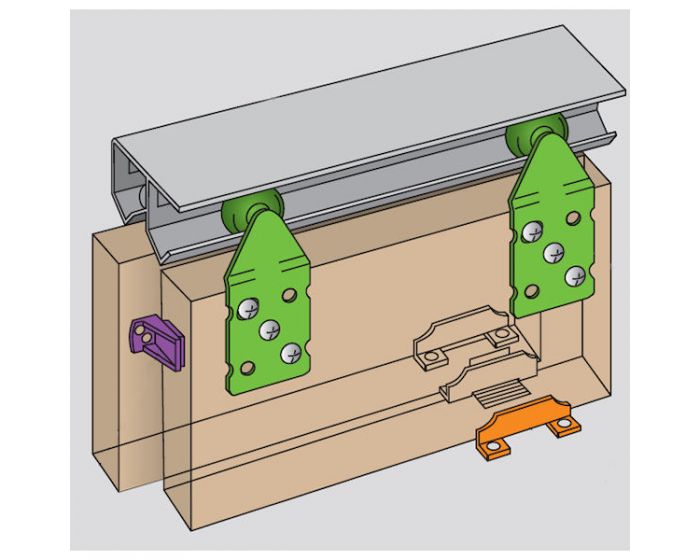

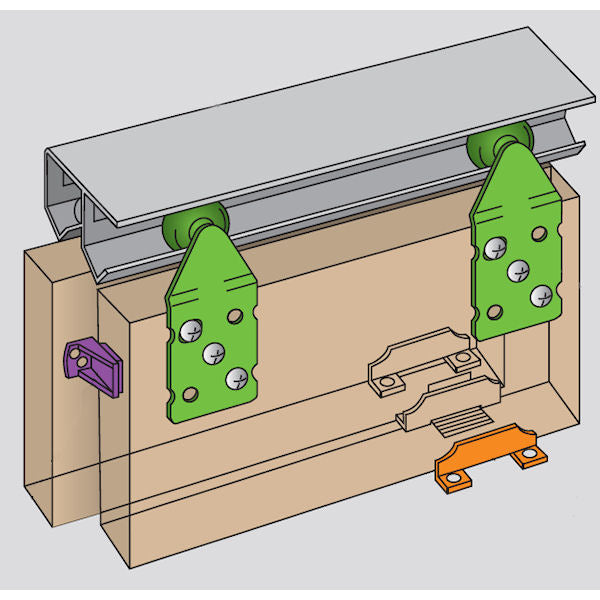

Double Top - Double Track Sliding Door Gear For Wardrobe & Cupboard Doors Up To 900mm Wide & 45kg In Weight

Catalogue Number:
31274
Full Description
Product Name Price Qty
31274.1 - Double Track Sliding Door Gear For Cupboard Doors Up To 600mm Wide - 1200mm Track Length - For 2 Doors
£60.25 £50.21

Per Kit
31274.2 - Double Track Sliding Door Gear For Cupboard Doors Up To 750mm Wide - 1500mm Track Length - For 2 Doors
£67.15 £55.96

Per Kit
31274.3 - Double Track Sliding Door Gear For Cupboard Doors Up To 900mm Wide - 1800mm Track Length - For 2 Doors
£74.47 £62.06

Per Kit
31274.4 - Double Track Sliding Door Gear For Cupboard Doors Up To 800mm Wide - 2400mm Track Length - For 3 Doors
£97.72 £81.43

Per Kit
Enquire Now
  • For heavy duty sliding door applications such as larger wardrobes and cupboards in hotels, schools, hospitals and offices, the Double Top is the ideal choice.

  • Designed to support double track sliding timber, timber framed and composite doors of up to 45kg and 16-40mm in thickness, it works silently on nylon hangers and an aluminium track.
  • Door heights can be adjusted easily, a floor guide can be added as an option, and a triple door kit can support openings of up to 2400mm.
  • Each set includes all the main components needed to install long lasting, smooth running sliding doors.
  • Aluminium pre-drilled track for a durable, long lasting finish and easy installation.
  • Design for ceiling fixing only.
  • Supplied with bottom guides.

Kits Available To Suit 2 Door Systems

Diagram Showing A 2 Door Layout For Sliding Door Gear



Kits Available To Suit 3 Door Systems

Diagram Showing A 3 Door Layout For Sliding Door Gear



Track Lengths Available

Item CodeMax Door WidthOverall Track Length (L)To Suit No. Of DoorsMaximum Door Weight (W)Minimum Door Thickness (T)Max Door Thickness (T)
31274.1 600mm 1200mm 2 45kg 16mm 40mm
31274.2 750mm 1500mm 2 45kg 16mm 40mm
31274.3 900mm 1800mm 2 45kg 16mm 40mm
31274.4 800mm 2400mm 3 45kg 16mm 40mm
  • Longer kits can be created by simply joining to kits "end on" (next to each other).

Diagram showing dimensions of the Henderson Double Top sliding door gear system



Fixing Options

  • Pre-drilled aluminium track allows for fixing into the soffit or ceiling only.

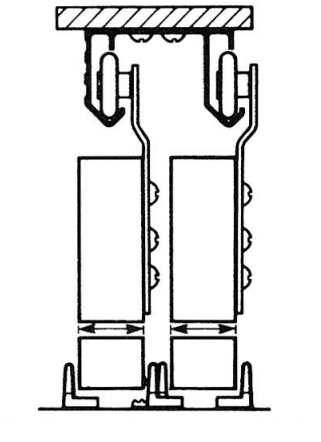

Diagram Showing How The Henderson Double Top Sliding Door Gear System Is Fitted

Floor Guide

  • The Henderson single top sliding door kit comes complete with a nylon floor guide, fixed to the floor next to the door frame, the door rund in between the guide to insure the door runs straight.
Diagram showing the Henderson double top nylon floor guide



Items Included Within The Henderson Double Top Sliding Door Kit

  • 1x Anti-Rise, Face/Soffit Aluminium Track
  • 2x Outer Offset Hangers
  • 2x Inner Offset Hangers
  • 2x Reversible Hangers - (Supplied With W24 - 3 Door Kit Only)
  • 1x Rubber-Buffered Stop - (2x Rubber-Buffered Stops Supplied With W24 - 3 Door Kit)
  • 1x Nylon Floor Mounted Door Guide - (2x  Nylon Floor Mounted Door Guides Supplied With W24 - 3 Door Kit)
More Information
Item 31274
Item Code 31274
Finish Aluminium Track
Sold Per Kit
Availability Non stock product - sent direct from factory - please allow 2-3 working days for delivery
Non stock product - sent direct from factory - please allow 2-3 working days for delivery
