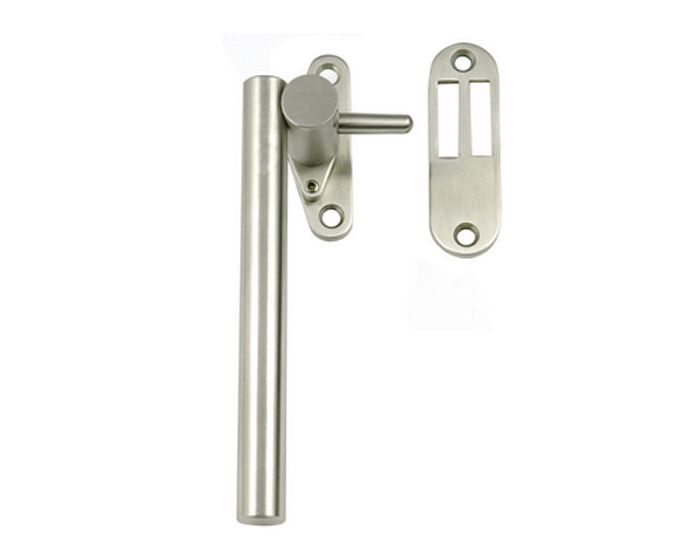

A casement fastener is fixed on the side of the window and is the handle used to keep the window closed
Key lockable via an alun key and grub screw
Fastener can be locked by screwing the grub screw into the fastener with the alun key provided. This stops the fastener from moving hence stopping the window from being opened
This fastener is handed left (shown in image) or right
A left hand fastener is used on windows that are hinged on the left
A right hand fastener is used on windows that are hinged on the right
Finish
Satin stainless steel

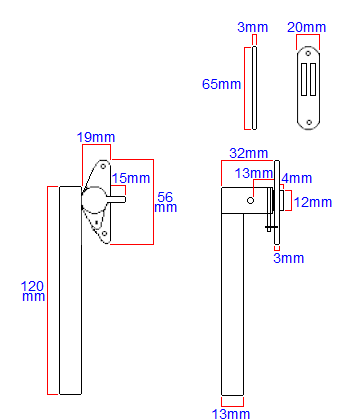

Dimensions
LEFT HAND - SHOWN IN ABOVE DIAGRAM
Handle diameter - 13mm
Back Plate - Height - 56mm x Width - 19mm
Overall Height - 140mm
Tag Length - 15mm
Mortice Plate - Height - 65mm x Width - 20mm
Important Information Before You Buy
Suitable for wooden windows
Comes supplied with mortice plate only (Hook plate sold separately)
For standard outward opening windows the mortice plate is used
For double windows or where the fame and window sit flush a hook plate is required
Comes supplied with fixing screws
This fastener is handed left and right
Matching window stay to open and close the window also available
