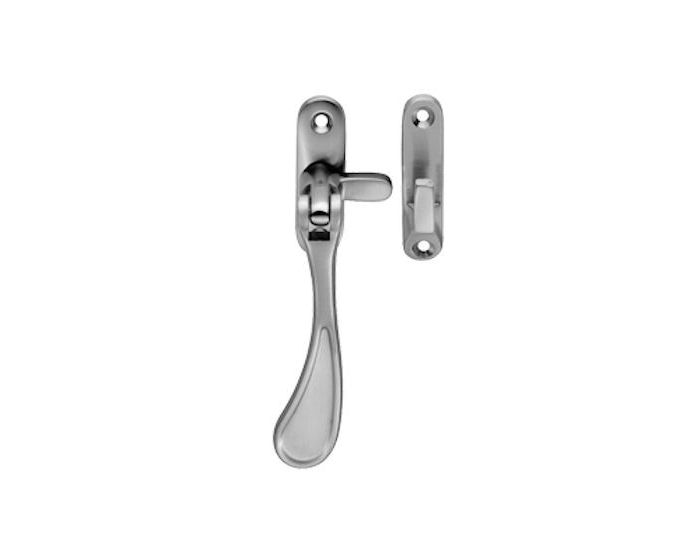

High Quality - Spoon End Design - Reversible Casement Window Fastener - Satin Chrome

Catalogue Number:
Full Description
Product Name Price Qty
15335.1 - Architectural Quality - Reversible Window Fastener - Satin Chrome - Each
£23.52 £19.60

Per Each
Enquire Now
  • Heavy architectural quality
  • Spoon end design handle
  • Traditional pattern casement window fastener
  • A casement fastener is fixed on the side of the window and is the handle used to keep the window closed
  • This fastener is reversible so can be used on windows hung on the left or right


  • Satin chrome - (brushed finish)

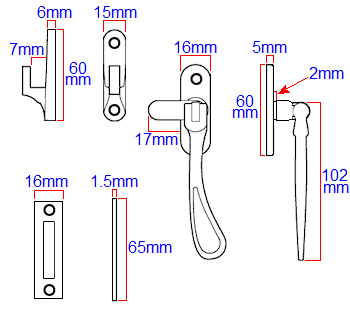

Diagram showing dimensions of the M73 spoon end design casement window fastener

  • Back Plate - Height - 60mm x Width - 16mm
  • Handle Length - 102mm
  • Tag Length - 17mm
  • Step Distance - 2mm
  • Mortice Plate - Height - 65mm x Width - 16mm
  • Hook Plate - Height - 60mm x Width - 15mm

Important Info Before You Buy

  • Suitable for wooden windows
  • Comes supplied with mortice plate and hook plate
  • For standard outward opening windows the mortice plate is used
  • For double windows or where the window sits flush with the frame the hook plate is used
  • This fastener is not suitable for use on weather stripped windows
  • Matching window stay to open and close the window also available
More Information
Item 15335
Item Code 15335
Finish Satin Chrome
Dimensions 102mm Handle Length
Sold Per Each
Availability Stock item - please allow 1-3 days for delivery
Stock item - please allow 1-3 days for delivery
