150 Degree Opening Concealed Blum Style Cabinet Hinge With Built In Soft Close

Catalogue Number:
Full Description
Product Name Price Qty

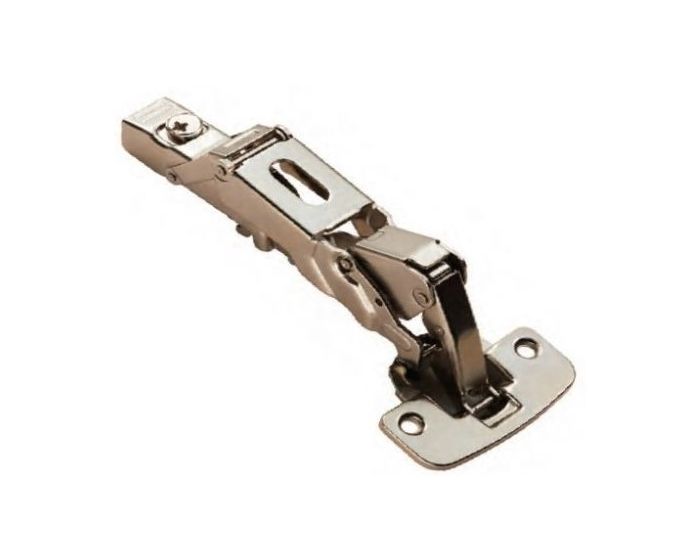

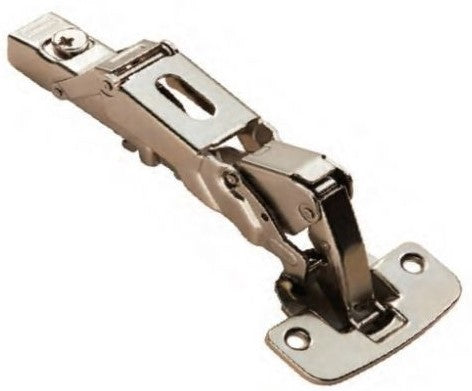

20272.1 - 150 Degree Opening Concealed Blum Style Cabinet Hinge With Built In Soft Close - Zinc Plated - Each
£4.92 £4.10

Per Each
  • High quality concealed blum style full overlay kitchen cabinet hinge, with 150 degree opening angle.
  • Built in soft close mechanism and 3 way adjustable clip on mounting plate.
  • For use with doors that overlay the carcass only. (Overlay doors sit on top of cupboard door frame.)
  • High architectural quality "clip on" design with built in soft closing device. No more slamming cupboard doors, just a gentle push and the cabinet door will self close coming to a controlled soft stop.
  • 3 way adjust-ability the door can be adjusted vertically (moving the door up and down) - horizontally (moving the door side to side) - in and out (moving the door from or towards the carcass)
  • Heavy duty - this hinge has been tested and passed to BS 6222-22009 test level H suitable for use in high or heavy use areas.
  • Sprung hinge - keeps door held closed no need for any kind of cupboard catch.
  • Standard 35mm diameter cup with a 150 degree opening angle
  • Comes supplied adjustable clip on mounting plate.

Suitable For Use On Overlay Style Doors Only

  • Overlay hinge suitable for doors that sit on top of the cabinet carcass.

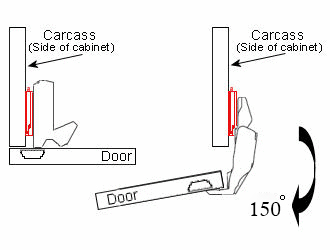

  • Below diagram shows how an overlay hinge is fitted. - (Notice how the door sits in front of the cupboard frame.)

Diagram 170 degree Blum hinge

  • Suitable only for doors that overlay the cabinet carcass - (see below diagram)

Diagram showing doors overlaying a cabinet carcass

Clip On Design

  • This hinge comes supplied with an adjustable clip on mounting plate, which allows the door to be fully adjusted and then quickly removed by simply pushing a small button at the very tip of the hinge.
  • Below diagram shows how the concealed blum style hinge clips on and off from the mounting plate.

Diagram Showing How The FTD Concealed Blum Style Hinge Clips On And Off From It's Mounting Plate

Base Material

  • Made from steel.

Finish Details

  • Bright zinc plated.

3 Way Adjustable Hinge

  • This overlay hinge can be adjusted in 3 directions. - (see below diagram.)
  • Lateral adjustment - turning the screw nearest to cup allows the door to move side to side with a total movement of 5mm possible.
  • Front to back adjustment - turning the screw at the tip of the hinge adjusts the door away from or toward the carcass with a total movement of 3.5mm possible.
  • Vertical adjustment - turning the cam operated screw on the mounting plate adjusts the height the of the door up and down with a total movement of 4mm possible.

Diagram Showing How The FTD Concealed Blum Style Hinges Can Be Adjusted

Size Details

  • Standard 35mm diameter cup. (Hole diameter required to be drilled into the door).
  • 150 Degree opening angle ideal for use on cabinet doors that need to fold back on themselves.

Unit Of Sale

  • The overlay concealed blum style cabinet hinge is sold individually. - (Each)
  • Comes supplied with adjustable clip on mounting plate and  screws to suit 18mm thick door and carcass.
More Information
Item 20272
Item Code 20272
Finish Zinc Plated
Sold Per Each
Availability Stock Item
Download PDF Data Sheet
