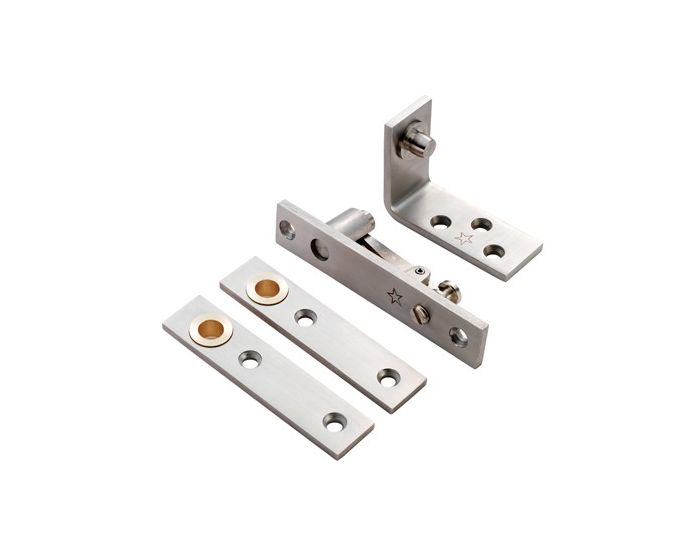

Double Action Pivot Set - For Double Swing Doors - Frame Mounted - 80kg - Satin Stainless Steel

Catalogue Number:
41050
Full Description
Product Name Price Qty
41050.1 - Double Action Pivot Set - Frame Mounted - 80kg Weight Limit - Satin Stainless Steel
£69.31 £57.76

Per Set
  • Double action pivot set - allows doors to swing in both directions
  • Bottom bracket is designed to be fitted to the door frame
  • Minimum door thickness 44 mm
  • To suit doors up to 80 kg, when floor mounted
  • Maximum door width 1100 mm, when jamb mounted
  • 44 mm thick doors require R9 radius on pivot edge, 54 mm thick doors require R12 radius
  • Top and bottom plates have maintenance free oil impregnated bronze bearings
  • Set includes door bottom pivot, top centre and 5mm thick door brackets

Base Material

  • Stainless steel - grade 304

Finish

  • Satin stainless steel - (brushed finish)

Dimensions

  • Top plate - 130mm x 25mm x 5mm
  • Top pivot - 130mm x 25mm x 5mm
  • Bottom plate - 110mm x 25mm x 5mm
  • Frame mounted bottom pivot bracket - 58.5mm x 32mm x 79mm x 5mm

Diagram Showing Dimensions Of The Double Action Frame Mounted Pivot Set - 80kg



Unit Of Sale

  • Sold per set - to hang one double action door.
More Information
Item 41050
Item Code 41050
Finish Satin Stainless Steel
Sold Per Set
Availability Stock item - please allow 1-3 days for delivery
Stock item - please allow 1-3 days for delivery
Download PDF Data Sheet
