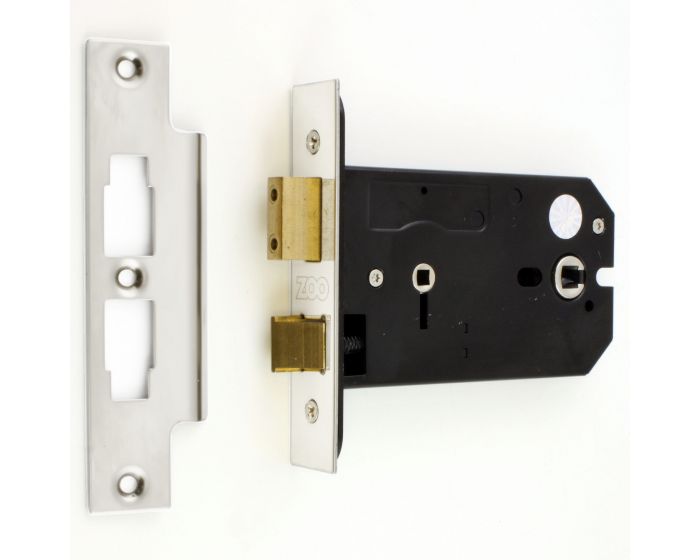

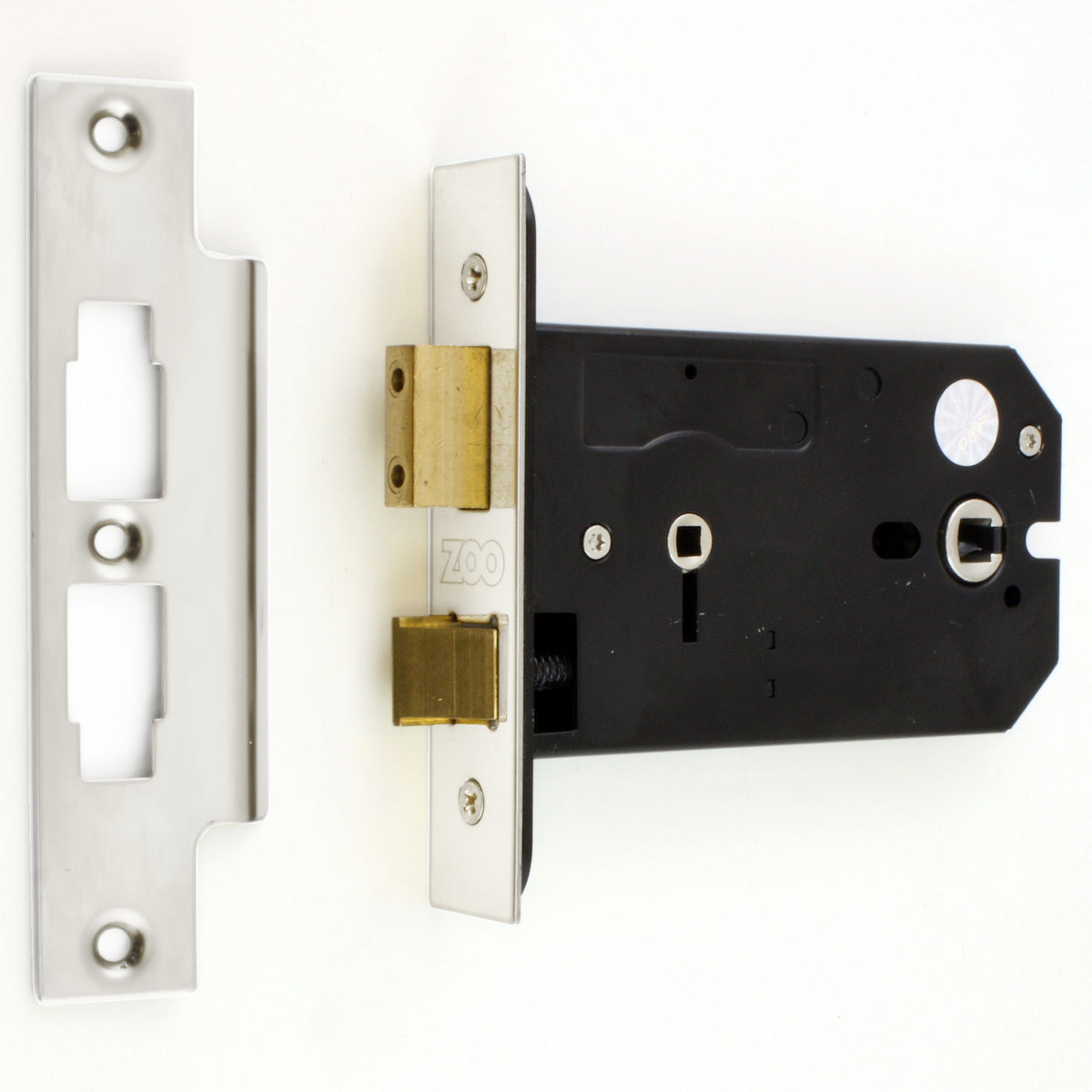

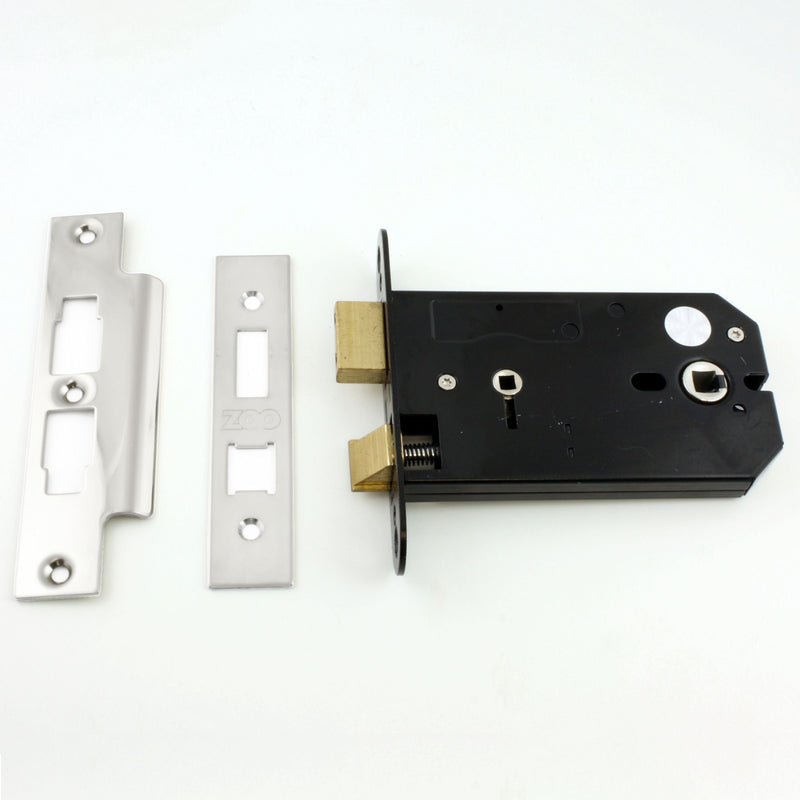

Horizontal Mortice Bathroom Lock - 127mm or 152mm Deep Case - Polished Stainless Steel
Horizontal Mortice Bathroom Lock - 127mm or 152mm Deep Case - Polished Stainless Steel
View In 3D
Full Description
Enquire Now
Horizontal mortice bathroom lock with 5mm spindle for use with bathroom turn & release systems.
Supplied with polished stainless steel (shiny finish) forend and strike plates
Large style lock case available in two sizes - 127mm (5 inches) or 152mm (6 inches) deep.
Traditional horizontal style is ideal for mortice knobs as it places the knobs far away from the door frame.
Horizontal locks were a traditional lock often found in period properties.
Spindle hole for the turn & release is located to the side of door knobs rather than underneath.
Thumbturn operated dead bolt.
Bolt through lock (38mm bolt holes) to suit bolt together handles and mortice knobs.
Operation
Latch is withdrawn via a mortice door knob or lever handle from either side of the door (handles sold separately).
Two way action allows un-sprung door knobs to be turned either way to withdraw the latch mechanism and open the door.
Deadbolt is locked and un-locked via a bathroom thumbturn and release lock (sold separately).
Features
Light weight springing makes this lock ideal for use with door knobs.
Two way action allows door knobs to be turned in both directions.
Solid brass guided latch.
Solid brass deadbolt with anti-saw rollers.
Bolt through facility for bolt together fixing lever handles and accessories at 38mm centres.
8mm x 8mm spindle follower (to suit standard UK size spindles).
Latch can be reversed on site without taking the lock case apart.
Reversible frame mounted strike plate.
Security Level
Low security architectural range.
Suitable for use on internal doors in residential or light commercial buildings.
Finish
Polished stainless steel - (shiny finish).
Alternative Finishes Available
Dimensions
Available in two sizes
40709.1- 127mm (5 inch)
40709.2- 152mm (6 inch)
40709.1
40709.2
Dimension On Diagram
Overall Case Depth
127mm
152mm
A
Backset (Distance To centre Of Spindle Hole)
101mm
127mm
B
Backset (Distance To centre Of Key Hole)
38mm
50mm
C
Case Height
70mm
70mm
D
Forend - Height x Width
120mm x 25mm
120mm x 25mm
E
Options Available To Order
Intumescent sheets and lock case liners are available. Please see our intumescent fire rated products category for details.
Rebate Kit For Double Rebated Doors
40831.1 - 13mm satin stainless steel rebate kit for use with the horizontal mortice locks.
Please note the above rebate kit is a satin (brushed finish).
Unit Of Sale
Each - (1 x lock case supplied with forend, strike plate).
More Information
Item
40709
Item Code
40709
Finish
Polished Stainless Steel
Dimensions
127mm or 152m Case Depth
Sold Per
Each
Availability
Stock item - please allow 1-3 days for delivery
Stock item - please allow 1-3 days for delivery
