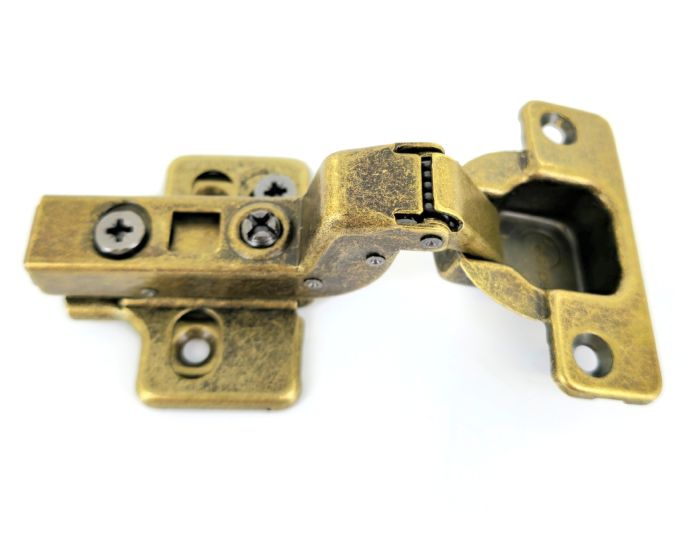

Inset Concealed Kitchen And Wardrobe Hinges For Flush Doors Antique Brass Plated

Everything You Need To Know About Our Soft Close Blum Style Kitchen Cabinet Hinges

• Antique brass plated concealed Blum style inset kitchen cabinet hinge with built-in soft-close mechanism and 3-way adjustable clip on mounting plate.
• It is suitable for use with doors that inlay within the carcass only. (Inset doors sit inside the cupboard door frame.)
• It features a high-architectural-quality clip-on design with a built-in soft-closing device. No more slamming cupboard doors just a gentle push and the cabinet door will self-close, coming to a controlled soft stop.
• It has a 3-way adjustability so that the door can be adjusted vertically (moving the door up and down), horizontally (moving the door side to side) and in and out (moving the door from or towards the carcass).
• The sprung hinge keeps the door held closed, so there is no need for a cupboard catch.
• Standard 35mm diameter cup with a 105-degree opening angle
• Comes with an adjustable clip-on mounting plate.

Suitable For Use On Inset Style Doors Only

• An inset hinge is suitable for doors that sit within the cabinet carcass.
• The diagram below shows how an inset hinge is fitted (notice how the door sits inside the cupboard frame).

Clip On Design

• This hinge is supplied with an adjustable clip-on mounting plate, allowing the door to be fully adjusted and then quickly removed by simply pushing a small button at the very tip of the hinge.
• The diagram below shows how the concealed Blum hinge clips on and off from the mounting plate.

Base Material

• Made from steel.

Finish Details

• Antique brass plated (supplied with black screws).

3 Way Adjustable Hinge

• This inset hinge can be adjusted in 3 directions. - (see the diagram below.)
• Lateral adjustment - turning the screw nearest to the cup allows the door to move side to side with a total movement of 5mm possible.
• Front-to-back adjustment - turning the screw at the tip of the hinge adjusts the door away from or toward the carcass with a total movement of 3.5mm possible.
• Vertical adjustment - turning the cam-operated screw on the mounting plate adjusts the height of the door up and down with a total movement of 4mm possible.

Size Details

• Standard 35mm diameter cup. (Hole diameter required to be drilled into the door).
• To suit door thickness 18mm - 22mm
• 105-degree opening angle.

Unit Of Sale

• Sold as pack of 2 hinges with black screws.
• Supplied with an adjustable clip-on mounting plate and matching screws to suit an 18mm - 22mm thick door and carcass.
