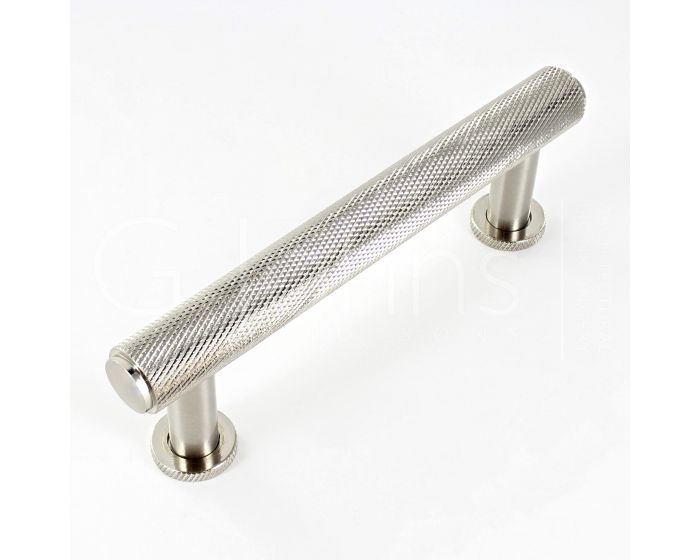

Knurled Design Tubular T Bar Cabinet Pull Handle With Stepped Ends With Optional Base Rose - Satin Nickel

Catalogue Number:
44688
Full Description Related Products
Product Name Price Qty
44688.1 - Knurled Design Tubular T Bar Cabinet Pull Handle With Stepped Ends - 126mm Length (96mm Centres) - With Optional Base Rose - Satin Nickel - Each
£36.65 £30.54

Per Each
44688.2 - Knurled Design Tubular T Bar Cabinet Pull Handle With Stepped Ends - 160mm Length (128mm Centres) - With Optional Base Rose - Satin Nickel - Each
£41.66 £34.72

Per Each
44688.3 - Knurled Design Tubular T Bar Cabinet Pull Handle With Stepped Ends - 254mm Length (224mm Centres) - With Optional Base Rose - Satin Nickel - Each
£58.32 £48.60

Per Each
Enquire Now
  • Knurled design tubular shape T-bar cabinet pull handle with stepped ends
  • Supplied with optional knurled base roses
  • Available in three lengths, 126mm, 160mm, 254mm
  • Supplied with M4 fixing bolts
  • Contemporary design ideal for use on modern units including, kitchen cabinet doors, wardrobes, cupboard doors and drawers

Size Details

Item codeOverall Length(B) Fixing Centres Width(A)Projection(C)
44688.1 126mm 96mm 15mm 40mm
44688.2 160mm 128mm 15mm 40mm
44688.3 254mm 224mm 15mm 40mm

Knurled-Pattern-Tubular-Shape-Cabinet-Pull-Handle-Dimensions-Diagram

Base Material

  • Made from solid brass

Finish Details

  • Satin nickel

Fixings

  • This handle is fitted via M4 bolts from the rear of the door / drawer - see below diagram

Diagram-Showing How A Cabinet Handle Bolts Through A Door / Drawer

  • Bolt through fixings provide a superior strong fixing allowing this handle to be fitted to tall or heavy doors
  • Supplied with M4 (diameter) x 25mm (long) bolts - Suitable for use on 18mm thick doors
  • For doors thicker then 18mm, longer M4 fixing bolts are available to buy separately

Usage

  • Suitable for internal use.

Unit Of Sale

  • This cabinet handle is sold individually - (Each)
More Information
Item 44688
Item Code 44688
Finish Satin Nickel
Dimensions Available In Three Lengths
Sold Per Each
Availability Non stock product - please allow 3-7 days for delivery
Non stock product - please allow 3-7 days for delivery
