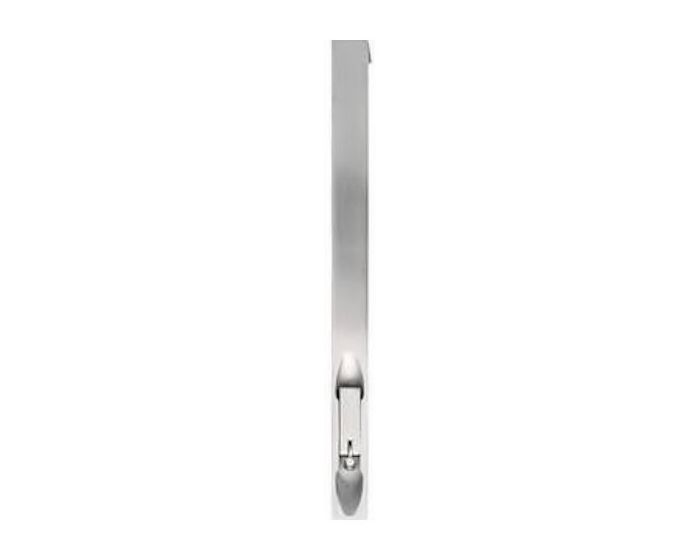

Lever Action Flush Bolt - Suitable For Use On FD30 / FD60 Fire Doors - Satin Stainless Steel

Catalogue Number:
40810
Full Description Related Products
Product Name Price Qty
40810.1 - Lever Action Flush Bolt - Tested For Use With FD30 / FD60 Fire Doors - 150mm x 20mm - Satin Stainless Steel - Each
£13.94 £11.62

Per Each
40810.2 - Lever Action Flush Bolt - Tested For Use With FD30 / FD60 Fire Doors - 200mm x 20mm - Satin Stainless Steel - Each
£17.41 £14.51

Per Each
40810.3 - Lever Action Flush Bolt - Tested For Use With FD30 / FD60 Fire Doors - 305mm x 20mm - Satin Stainless Steel - Each
£32.60 £27.17

Per Each
40810.4 - Lever Action Flush Bolt - Tested For Use With FD30 / FD60 Fire Doors - 457mm x 20mm - Satin Stainless Steel - Each
£65.21 £54.34

Per Each
40810.5 - Lever Action Flush Bolt - Tested For Use With FD30 / FD60 Fire Doors - 600mm x 20mm - Satin Stainless Steel - Each
£82.54 £68.78

Per Each
40810.6 - Lever Action Flush Bolt - 914mm x 20mm - Satin Stainless Steel - Each
£109.39 £91.16

Per Each
Enquire Now
  • Lever action flush bolts for double doors.
  • Designed to be fitted into the leading edge of the slave door.

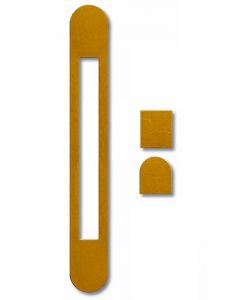

  • Suitable for use on FD30 / FD60 fire rated doors, when used in conjunction with the (41667) intumescent kit.

Base Material

  • Stainless Steel

Finish

  • Satin Stainless Steel

Dimensions

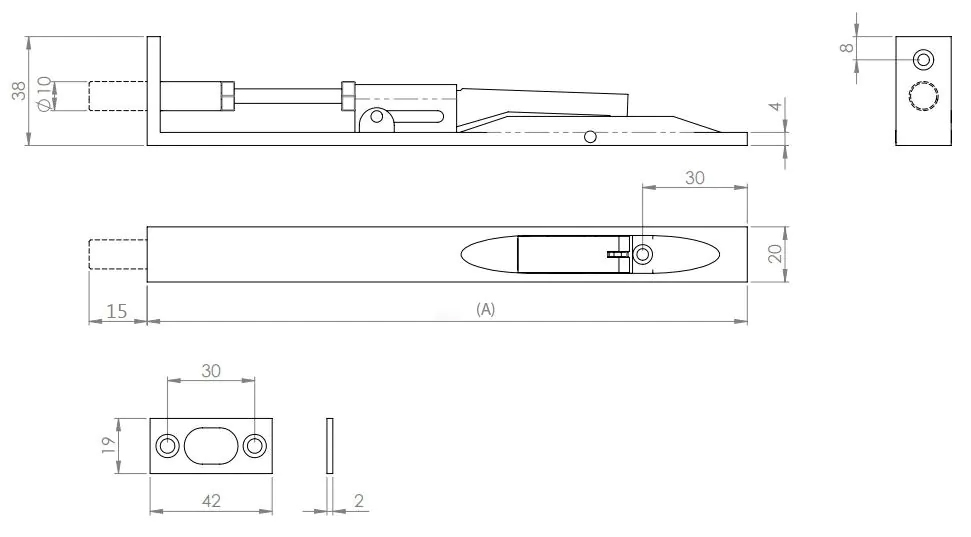

lever-action-flush-bolts-suitable-for-use-on-fd30-fd60-fire-doors-diagram



  Length (A)  Width  Depth
40810.1
150mm
20mm
38mm
40810.2 200mm
20mm
38mm
40810.3 305mm 20mm 38mm
40810.4 450mm 20mm 38mm
40810.5 600mm 20mm 38mm
40810.6 914mm 20mm 38mm

Unit Of Sale

  • Sold individually - each
  • Suitable for use on FD30 / FD60 fire rated doors, when used in conjunction with the (41667) intumescent kit
  • Note: 40810.6 (914mm x 20mm) is NOT fire rated
More Information
Item 40810
Item Code 40810
Finish Satin Stainless Steel
Dimensions -
Fire Rated FD30 / FD60 - Fire Rated
Sold Per Each
Availability Stock item - please allow 1-3 days for delivery
Stock item - please allow 1-3 days for delivery
Download PDF Data Sheet
