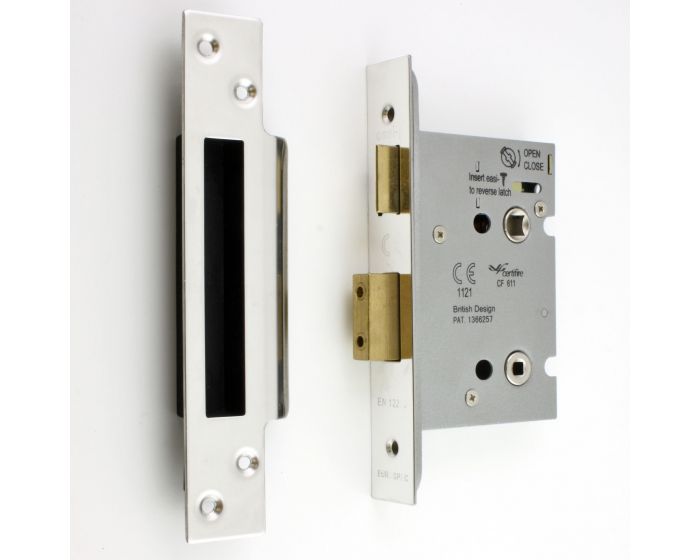

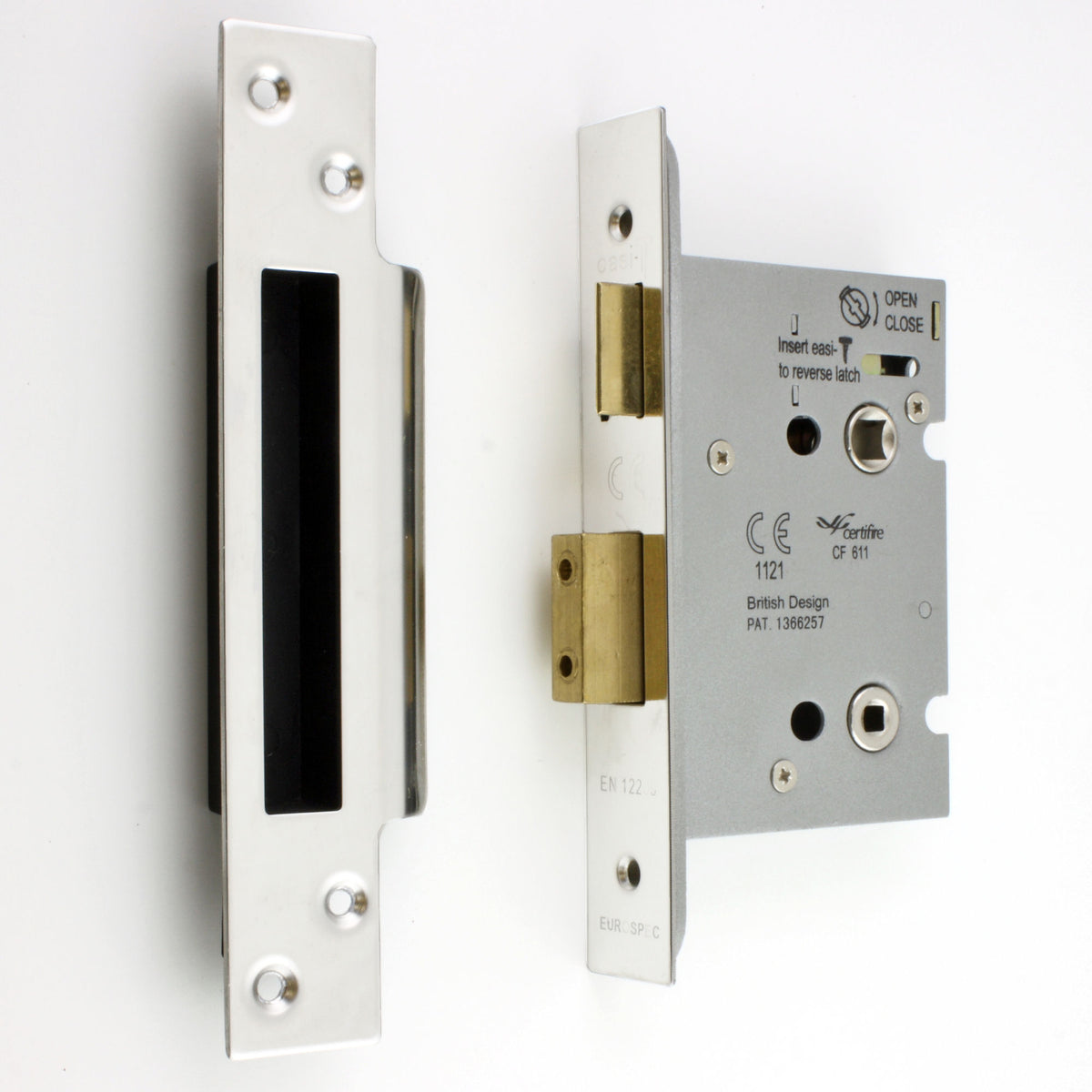

Architectural Quality Bathroom Mortice Lock - CE Marked - Fire Rated - Certifire Approved - Polished Stainless Steel

Catalogue Number:
20862

Starting at £20.93 £17.44

Full Description Related Products
Product Name Price Qty
20862.1 - Architectural Quality Bathroom Mortice Lock - CE Marked - Fire Rated - Certifire Approved - 64mm Case Depth (44mm Backset) - Polished Stainless Steel
£20.93 £17.44

Per Each
20862.2 - Architectural Quality Bathroom Mortice Lock - CE Marked - Fire Rated - Certifire Approved - 76mm Case Depth (57mm Backset) - Polished Stainless Steel
£20.93 £17.44

Per Each
  • Architectural quality mortice bathroom lock from.
  • Privacy lock for use on bathroom doors, toilets and WC doors.
  • For use on doors that require door handles and need to be locked via a thumb-turn and release system.
  • Must be used in conjunction with some form of door handle.

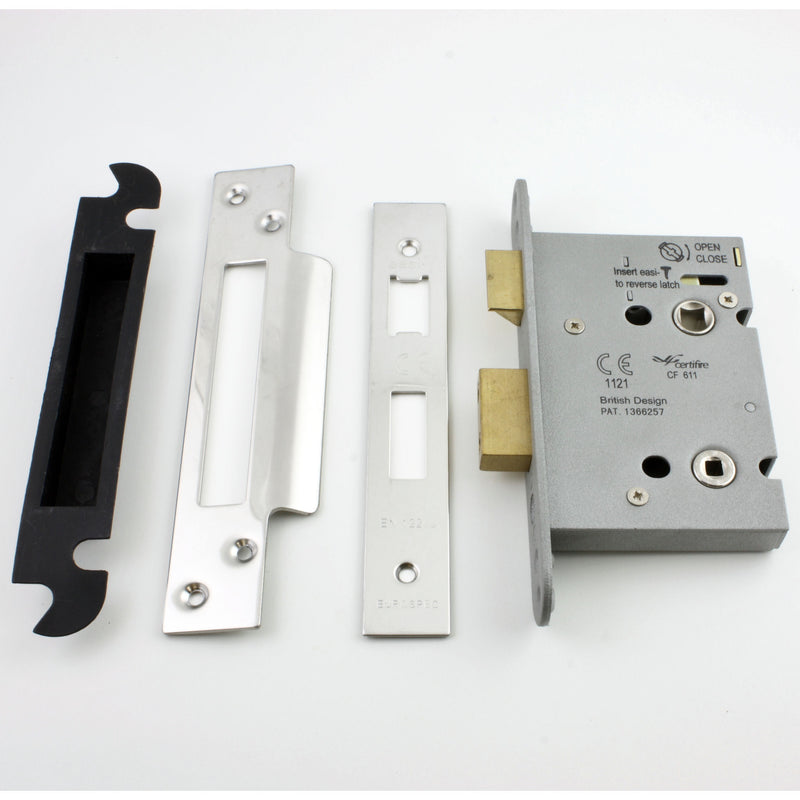

  • Comes supplied with a polished stainless steel (shiny finish) forend and frame mounted strike plate including black plastic back box.

Operation

  • Latch is withdrawn via a lever handle from either side of the door (handles sold separately).
  • Deadbolt can be locked and un-locked via a bathroom thumb-turn and release system (sold separately).
  • This lock can be released from the outside in case of an emergency when used in conjunction with a turn and release.
  • Only a quarter turn is required on the thumb-turn to lock and un-lock the dead bolt.

Features

  • Solid brass guided latch.
  • Solid brass deadbolt with anti-saw rollers.
  • Medium to heavy weight springing.
  • Adjustable spring strength, ideal for use with sprung or un-sprung lever furniture. (Spring strength can be adjusted by simply removing a screw on the edge of the lock case).
  • Bolt through facility for bolt together fixing lever handles and accessories at 38mm centres.
  • 8mm x 8mm spindle follower (to suit standard UK size spindles).
  • 5mm x 5mm thumb-turn spindle follower (to suit standard UK size turn and release systems).
  • Patented Easi-T latch reversal mechanism - the latch can be reversed on site without taking the lock case apart.
  • Reversible and adjustable strike plate.



Security Level

  • Medium security architectural range.
  • Suitable for use on internal doors in residential, commercial or public buildings.
  • Privacy lock.

Finish

  • Polished stainless steel - (shiny finish ideal for matching with polished stainless steel, polished nickel or polished chrome products).



Alternative Finishes Available

  • Satin stainless steel.
  • PVD Brass
  • Florentine bronze.

Dimensions

  • Available in two sizes
  • 64mm case depth (44mm backset).
  • 76mm case depth (57mm backset).


dimensions of the Eurospec E*S - architectural quality mortice bathroom lock


Item CodeLock Case Depth (A)Backset To Keyhole (B)
20862.1 64mm 44mm
20862.2 76mm 57mm
  • Lever handle follower - 8mm x 8mm.
  • Dead bolt follower - 5mm x 5mm.

Standards This Product Conforms To

  • Lock case tested and passed to BS EN 12209. The British / European standard requirements and test methods covering locks and latches. Classification number - 2H810F-BG20.
  • Tested and passed to BS EN 1634 the British / European standard for determining the fire resistance of door and shutter assemblies including hardware. Assessed for use on 30 minute and 1 hour timber fire doors FD30 / FD60.- Intumescent lock case liners required (sold separately).
  • Certifire approved.
  • CE Marked.
  • Declaration of performance (DoP) - please see the additional information tab to download the certificate.

Options Available To Order

  • This lock is also available to order with radius (rounded shape) forend and strike plates. Please contact us for lead times and prices.
  • Intumescent sheets and lock case liners are available. Please see our intumescent fire rated products category for details.



Rebate Kit For Double Rebated Doors

  • 23015.1 - 13mm satin stainless steel rebate kit for use with Eurospec architectural sash locks.
  • Please note by using the above rebate kit the finish of the lock wil change to satin (brushed) stainless steel


Unit Of Sale

  • Each - (1 x lock case supplied with forend, strike plate and plastic back box).
More Information
Item 20862
Item Code 20862
Finish Polished Stainless Steel
Dimensions 64mm or 76mm Case Depth
Sold Per Each
Availability Stock Item
Download PDF Data Sheet
