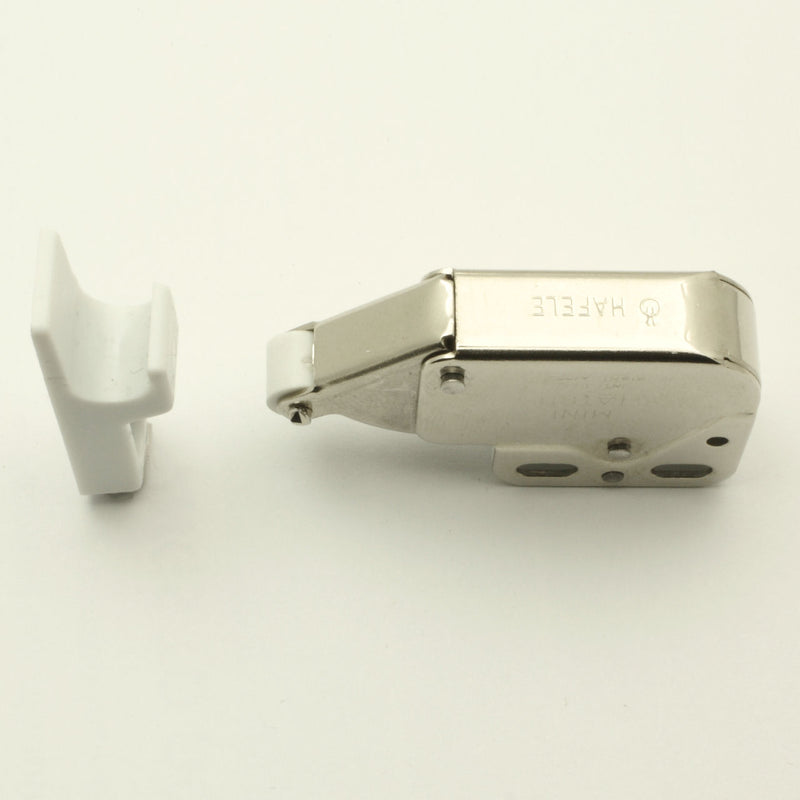

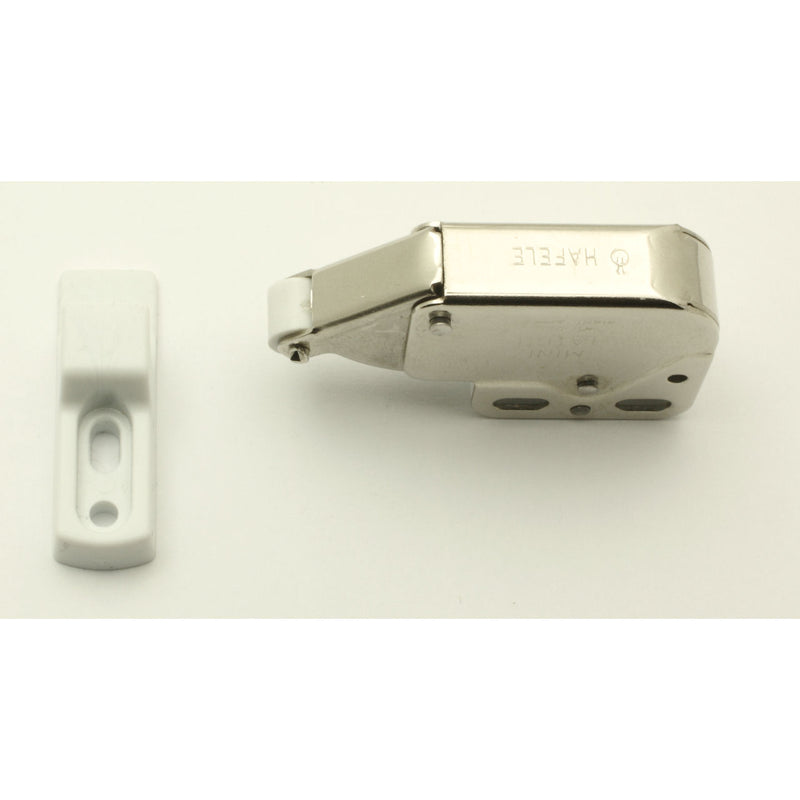

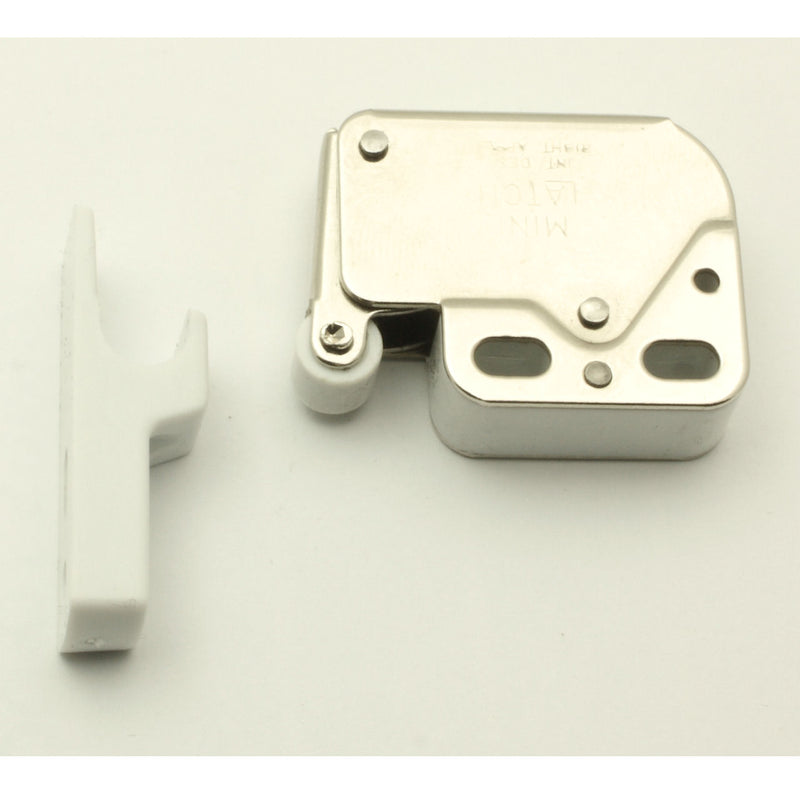

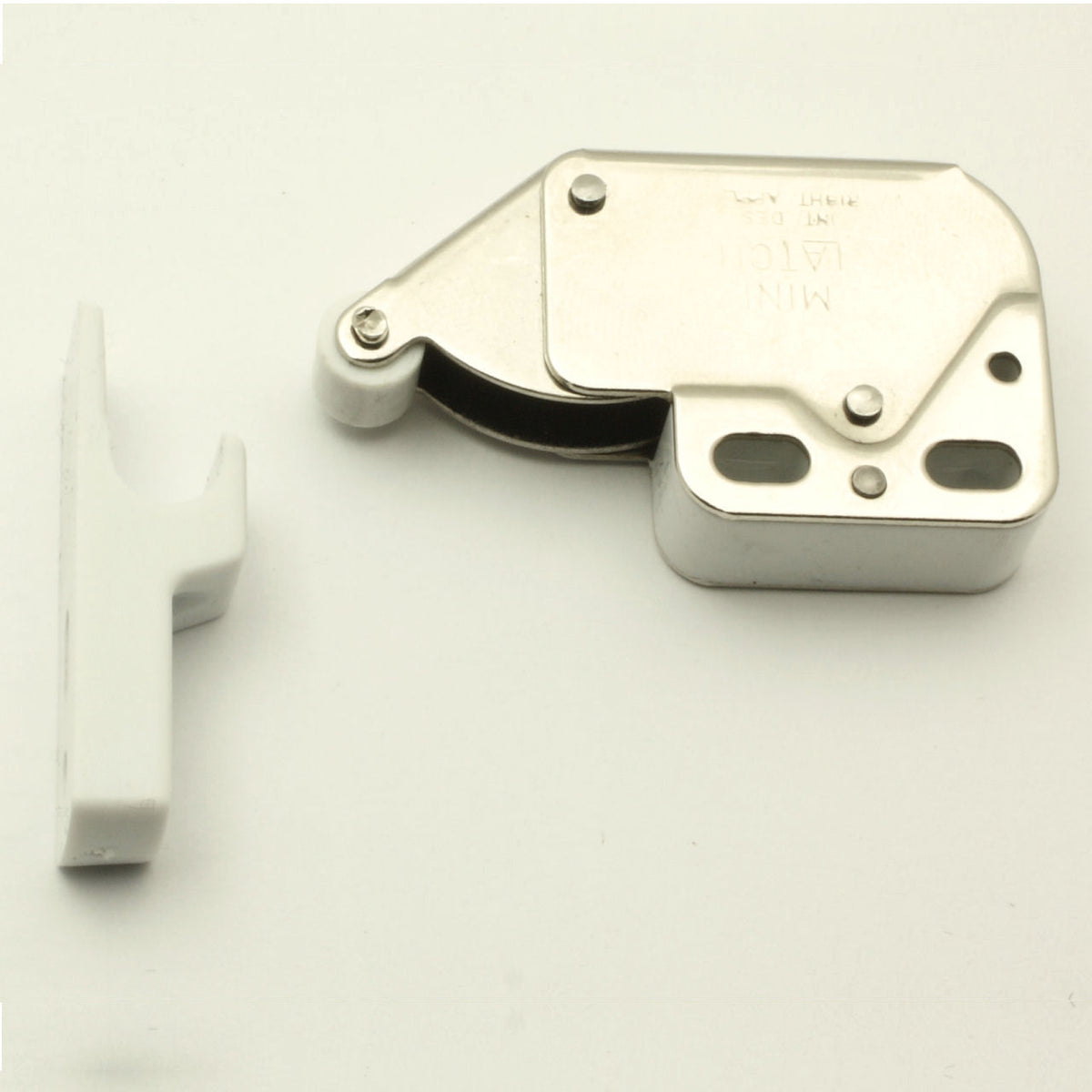

Side Mounted - Mini Touch Latch - For Press To Open Cupboard Doors

Catalogue Number:
20076
Full Description
Product Name Price Qty
20076.1 - Side Mounted - Mini Touch Latch - For Press To Open Cupboard Doors - Zinc Plated - Each
£2.30 £1.92

Per Each

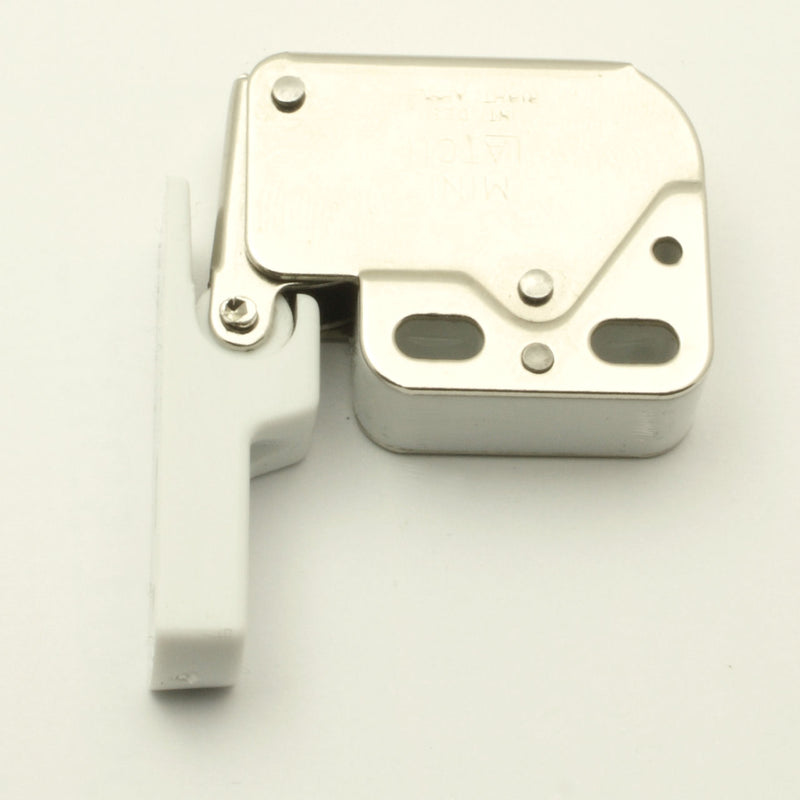

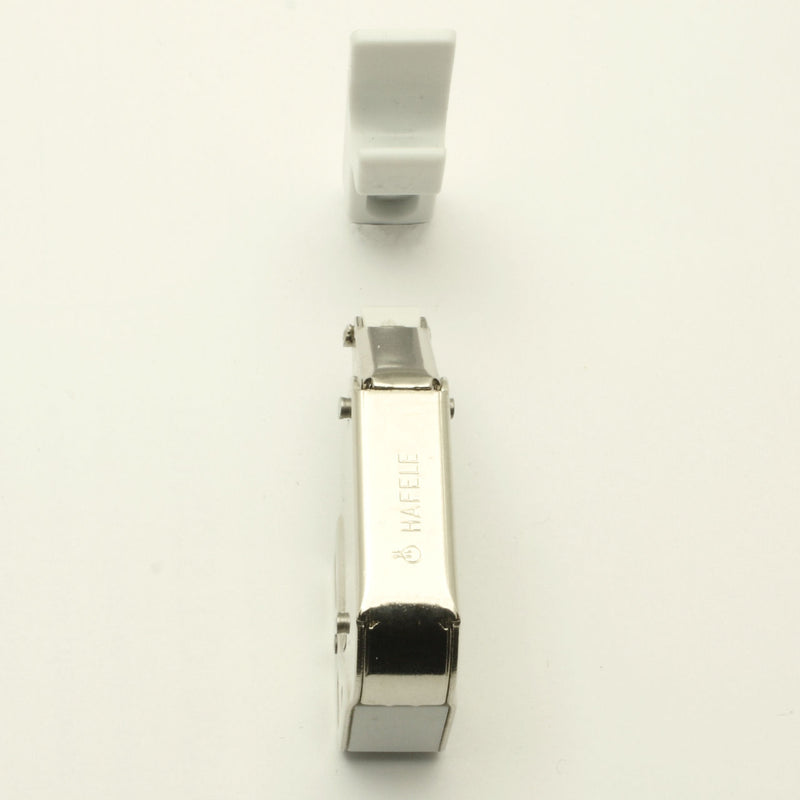

  • 20076.1 Mini touch latch for use on cabinet and cupboard doors with no handles.
  • This catch can be mounted to the sides, top or bottom of cabinet or cupboard door frame. The plastic receiver plate must be mounted to the inside (back) of the door.
  • The door is automatically opened by simply applying pressure to the door itself, thus activating the release spring in the fitting.
  • Light finger pressure on the door is sufficient to close it again. The plastic receiver plate engages with the touch latch to hold the door closed.
  • Commonly called the elephant pressure catch. (When you look at the catch from the side profile it looks like an elephant!)
  • This quick automatic spring catch can be use on overlay or inset doors.
  • PLEASE NOTE - This touch latch is only suitable for use with standard butt hinges or UN-sprung blum style concealed hinges.
  • Ideal for use on kitchen cabinet doors, wardrobes, and cupboard doors.

Size Details


Diagram Showing Dimensions Of The Hafele 245.54.701 Mini Touch Latch

Base Material

  • Body made from steel.
  • Roller and receiver made from plastic

Finish Details

  • Bright zinc plated case - (BZP)
  • White plastic roller and receiver plate

Fixings

  • The body of the mini touch latch must be fitted to the carcass or door frame - (see below images.)

Diagram Showing How The Hafele 245.54.701 Mini Touch Latch Is Fitted

Usage

  • Suitable for use on overlay doors (doors that sit on top of the carcass or frame.)
  • Suitable for use on inset doors (doors that sit inside that carcass or door frame.)Diagram Showing How The Hafele 245.54.701 Mini Touch Latch Fitted To Overlay And Inset Doors
  • Please note this touch latch is not suitable for use with sprung blum style kitchen hinges. (a sprung blum hinge "snaps" the door closed.)
  • Suitable for use with standard butt hinges and un-sprung blum style cabinet hinges.
  • The door must be able to be pushed inwards by a minimum of 2mm for the spring to release.

Unit Of Sale

  • The press to open mini touch latch is sold individually - (Each.)
More Information
Item 20076
Item Code 20076
Finish Zinc Plated
Dimensions 34mm x 27mm
Sold Per Each
Availability Stock Item
Download PDF Data Sheet
