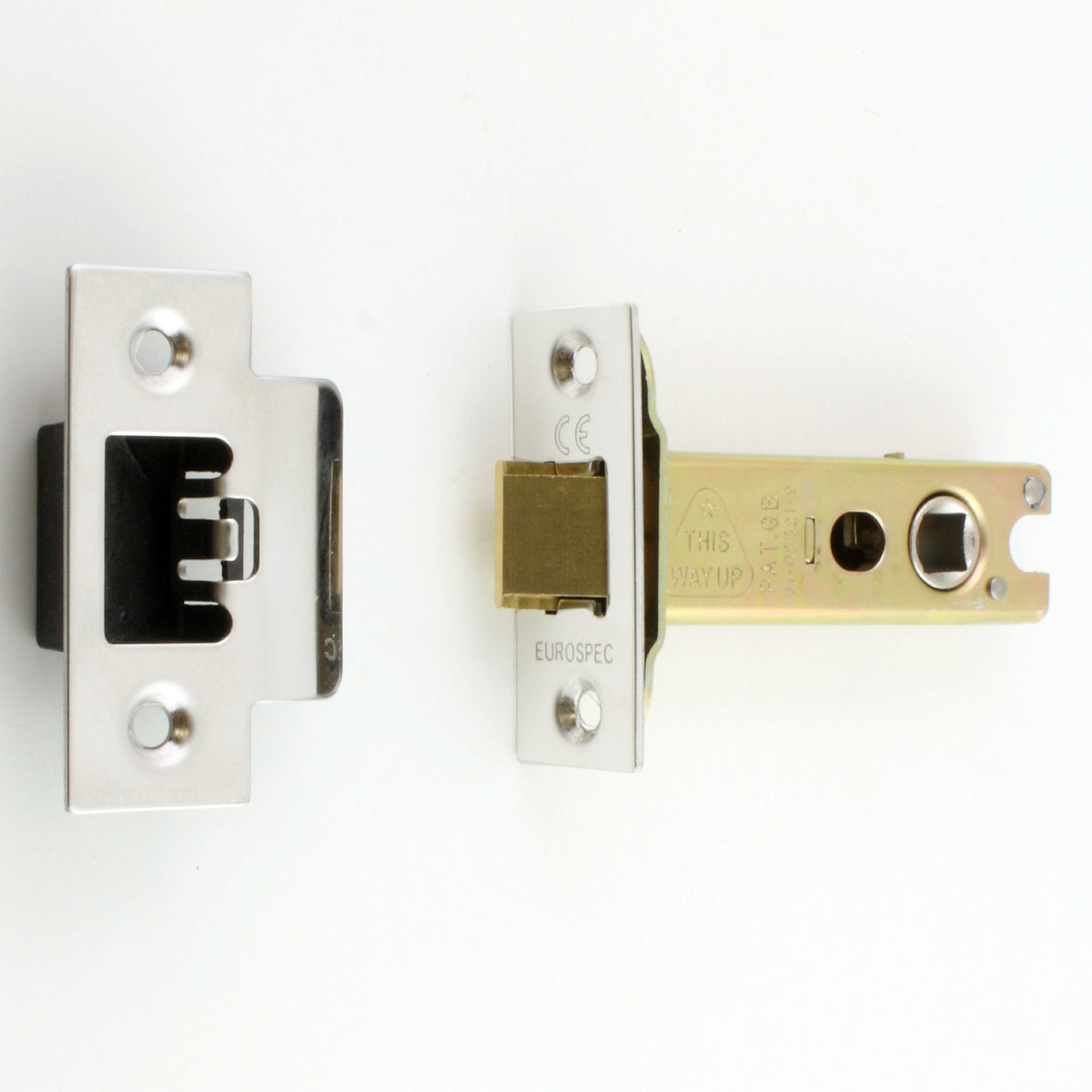

Heavy Duty Double Sprung Tubular Mortice Latch CE Marked - Fire Rated - Polished Stainless Steel (Shiny Finish)
Heavy Duty Double Sprung Tubular Mortice Latch CE Marked - Suitable For Use On Fire Doors - Polished Stainless Steel (Shiny Finish) - G Johns & Sons Ltd - Architectural Ironmongery

1/2

Product Code: 20859.1

Architectural Quality Double Sprung Tubular Mortice Latch - CE / UKCA Marked - Fire Rated - Certifire Approved - Polished Stainless Steel

4.9 · 1954 verified reviews Verified on Trustpilot

Finish:

View full specifications
Each
Klarna. Pay in 3 interest-free payments of .

Architectural Quality Double Sprung Tubular Mortice Latch - CE / UKCA Marked - Fire Rated - Certifire Approved

£10.32

  • Free delivery over £100
  • 30-day returns
  • Secure checkout — Shop Pay, Klarna, Apple & Google Pay
Specifying for a project? RegAI
Speak to one of our team for advice & guidance.

Product Details

  • Polished stainless steel heavy duty double sprung tubular latches.
  • CE Marked / UKCA Marked.
  • Fire tested to BS EN 1634-1 suitable for use on 30 minute and 60 minute FD30 and FD 60 fire doors.
  • Tested to BS EN 12209-2003 the standard for mechanical locks and latches.
  • Architectural finish - Polished (shiny) stainless steel forend and strike plates ideal for use with polished chrome and polished nickel finish door handles.

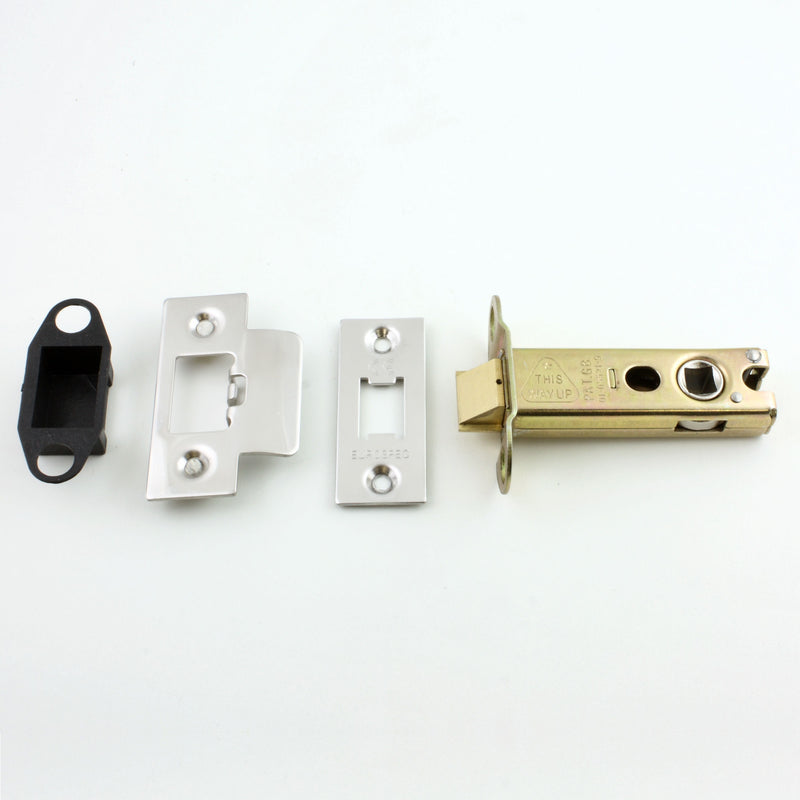

  • Supplied with black back box for fitting behind the strike plate in the door frame.
  • Heavy duty latch ideal for use with door handles fitted in residential, commercial and public buildings.
  • Available four sizes, 64mm, 76mm, 102mm or 127mm, case depths.
  • Bolt through fixing holes at 38mm apart (except for the 64mm case depth) - allows this latch to work in conjunction with bolt through round rose door handles.
  • Can be used with a rebate kit for double rebated doors.
  • This latch has a heavy weight spring making it ideal for use with sprung or un-sprung door handles.


Finish

  • Polished stainless steel

Dimensions

Available in four different sizes

  • 20859.1 - 64mm - NOTE THIS LATCH DOES NOT HAVE BOLT HOLES
  • 20058.2 - 76mm
  • 20058.3 - 102mm
  • 20058.4 - 127mm

  20859.1 20859.2 20859.3 20859.4
Dimension On Diagram
Overall Case Depth
64mm
76mm
102mm
127mm
A
Backset (Distance To centre Of Spindle Hole)
44mm
57mm
83mm
108mm
B
Case Height
23mm
23mm
23mm
23mm
C
Forend - Height (H) x Width (W)
60mm x 25mm
60mm x 25mm
60mm x 25mm
60mm x 25mm
D
Strike Plate - Height (H) x Width (W)
65mm x 25mm
65mm x 25mm
65mm x 25mm
65mm x 25mm
E
  • 23018.1 - 13mm polished stainless steel wrap round design rebate kit for use with the heavy duty CE Marked / UKCA Marked tubular latches.


Polished Stainless Steel

  • Stock item - please allow 1-3 days for delivery
  • Free delivery on orders over £100 (£5.95 below).
  • 30-day returns

Describe this product detail here.

G Johns & Sons Ltd

G Johns & Sons Ltd · Est. 1888 · GAI · RegAI Registered

020 8360 7771 · sales@gjohns.co.uk

Scan to view product online

Scan for product page

Architectural Quality Double Sprung Tubular Mortice Latch - CE / UKCA Marked - Fire Rated - Certifire Approved - Polished Stainless Steel

SKU TLS5025/FSF5009BSS  ·  Door Hardware  ·  £10.32 inc VAT

Technical

Specification & Dimensions

Downloads

Declaration Of Performance - DoP Certificate - For TLS Heavy Duty Tubular Latches
