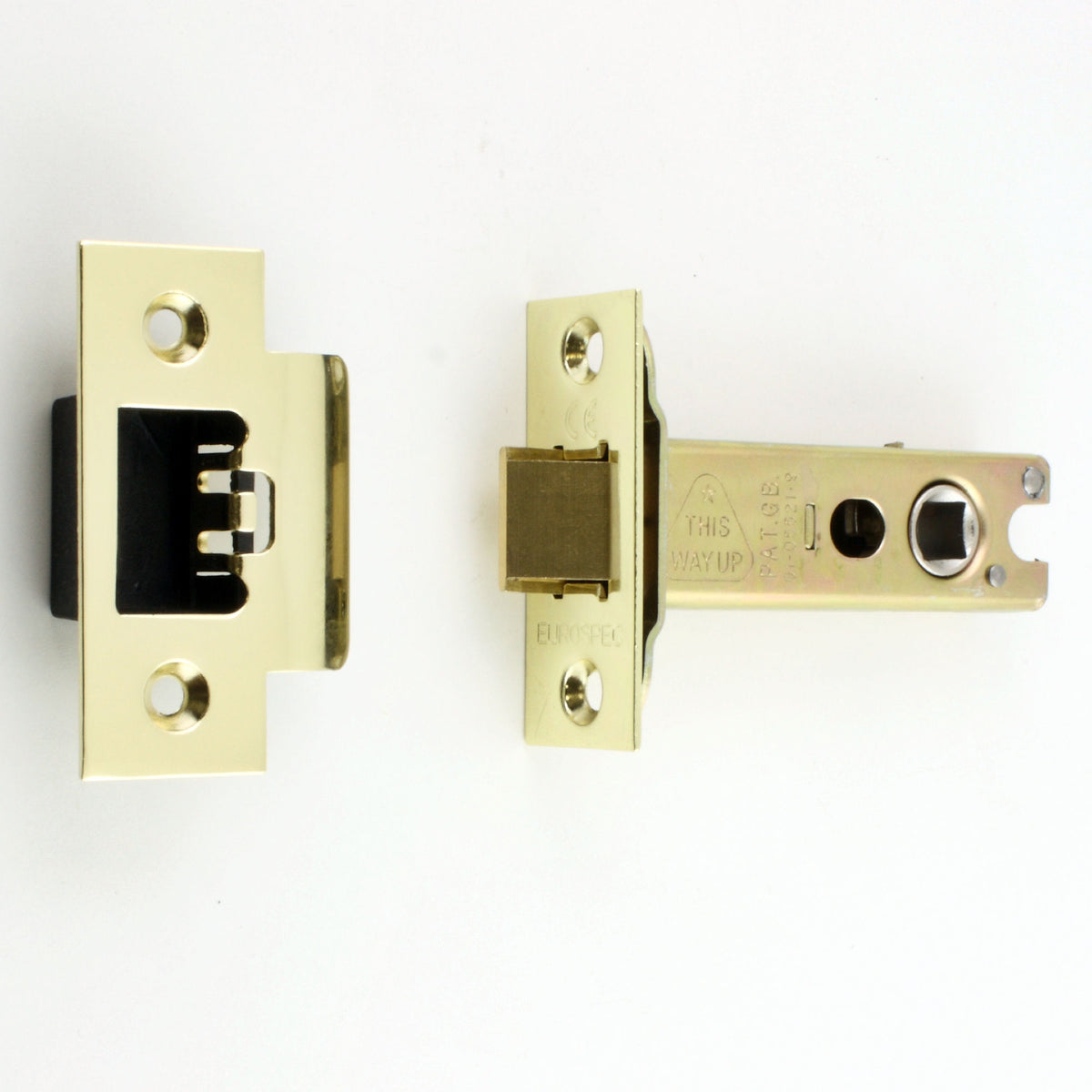

Architectural Quality Double Sprung Tubular Mortice Latch - CE / UKCA Marked - Fire Rated - Certifire Approved - Polished Brass PVD Plated

• PVD brass heavy duty double sprung tubular latches.

• CE Marked / UKCA Marked.

• Fire tested to BS EN 1634-1 suitable for use on 30 minute and 60 minute FD30 and FD 60 fire doors.

• Tested to BS EN 12209-2003 the standard for mechanical locks and latches.

• Architectural finish - PVD brass finish forend and strike plates ideal for use with polished brass and PVD brass finish door handles.

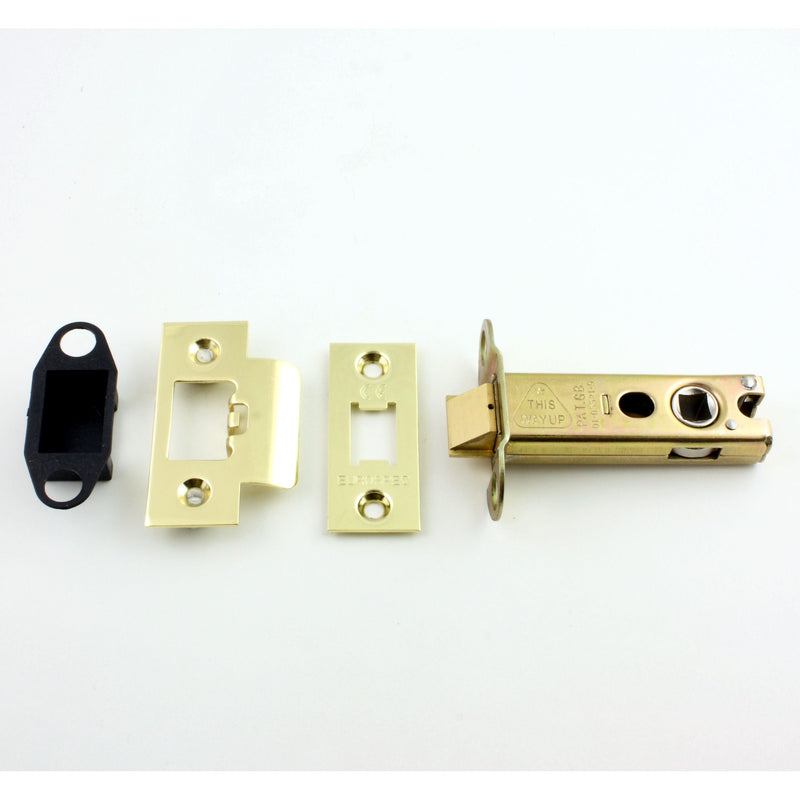

• Supplied with black back box for fitting behind the strike plate in the door frame.

• Heavy duty latch ideal for use with door handles fitted in residential, commercial and public buildings.

• Available four sizes, 64mm, 76mm, 102mm or 127mm, case depths.

• Bolt through fixing holes at 38mm apart (except for the 64mm case depth) - allows this latch to work in conjunction with bolt through round rose door handles.

• Can be used with a rebate kit for double rebated doors.

• This latch has a heavy weight spring making it ideal for use with sprung or un-sprung door handles.

Operation

• Latch is withdrawn via a door handle from either side of the door (handles sold separately).

Features

• Double sprung - heavy weight springing with lightly sprung latch bolt (allows the door to latch into place with little friction).

• Solid brass guided latch.

• Bolt through facility for bolt together fixing lever handles and accessories at 38mm centres - (please not the 64mm latch does not have bolt through holes).

• 8mm x 8mm spindle follower (to suit standard UK size spindles).

• Latch can be reversed on site by twisting the latch through 180 degrees.

• Reversible frame mounted strike plate.

• Supplied with black back box for fitting behind the strike plate in the door frame.

• Suitable for use on internal doors in residential, commercial or public buildings.

Finish

• PVD brass



Alternative Finishes Available

• Antique brass.
• Satin stainless steel.
• Polished stainless steel.
• Satin brass
• Black
• Matt bronze

Dimensions

Available in four different sizes

• 20082.1 - 64mm - NOTE THIS LATCH DOES NOT HAVE BOLT HOLES
• 20082.2 - 76mm



	20082.1	20082.2	20082.3	20082.4	Dimension On Diagram
Overall Case Depth	64mm	76mm	102mm	127mm	A
Backset (Distance To centre Of Spindle Hole)	44mm	57mm	83mm	108mm	B
Case Height	23mm	23mm	23mm	23mm	C
Forend - Height (H) x Width (W)	60mm x 25mm	60mm x 25mm	60mm x 25mm	60mm x 25mm	D
Strike Plate - Height (H) x Width (W)	65mm x 25mm	65mm x 25mm	65mm x 25mm	65mm x 25mm	E

Rebate Kit For Double Rebated Doors

• 23016.1 - 13mm PVD brass wrap round design rebate kit for use with the heavy duty CE Marked / UKCA Marked tubular latches.
