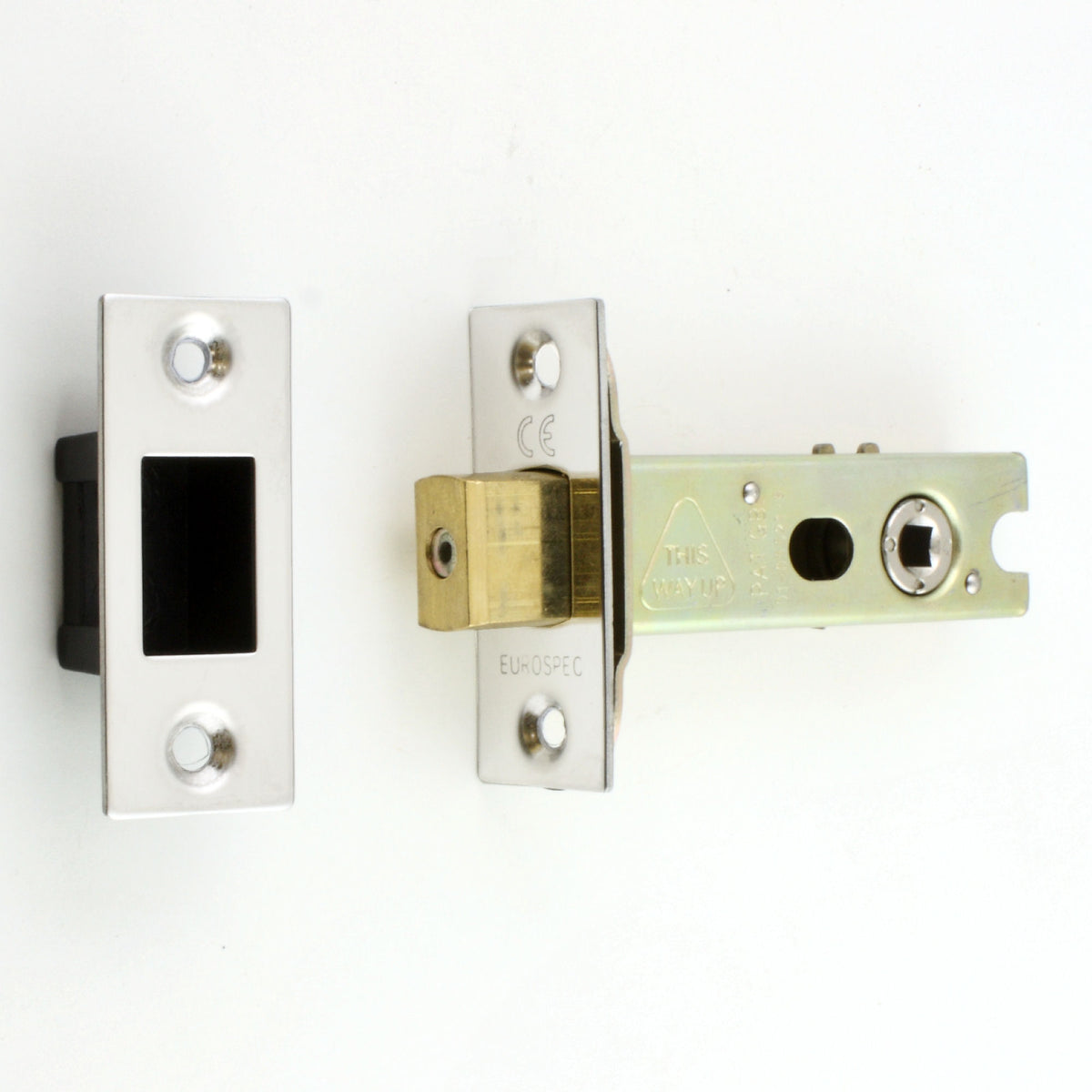

Architectural Quality Tubular Mortice Deadbolt With 5mm Follower - CE Marked - Fire Rated - Certifire Approved - Polished Stainless Steel

Catalogue Number:
20860
Full Description Related Products
Product Name Price Qty
20860.4 - Architectural Quality Tubular Mortice Deadbolt With 5mm Follower - CE Marked - Fire Rated - Certifire Approved - 64mm Case Depth (44mm Backset) - Polished Stainless Steel
£8.81 £7.34

Per Each
Out of stock
20860.1 - Architectural Quality Tubular Mortice Deadbolt With 5mm Follower - CE Marked - Fire Rated - Certifire Approved - 76mm Case Depth (57mm Backset) - Polished Stainless Steel
£8.71 £7.26

Per Each
20860.2 - Architectural Quality Tubular Mortice Deadbolt With 5mm Follower - CE Marked - Fire Rated - Certifire Approved - 102mm Case Depth (82mm Backset) - Polished Stainless Steel
£11.40 £9.50

Per Each
20860.3 - Architectural Quality Tubular Mortice Deadbolt With 5mm Follower - CE Marked - Fire Rated - Certifire Approved - 125mm Case Depth (108mm Backset) - Polished Stainless Steel
£12.60 £10.50

Per Each
  • Tubular style mortice deadbolt.
  • Supplied with a polished stainless steel (shiny finish) forend and frame mounted receiver plate including black plastic back box.
  • 5mm follower designed for used with UK style bathroom turn & release sets.
  • Twisting the follower a quarter is enough to throw and withdraw the deadbolt.
  • 38mm bolt through holes allows turn and release sets to be bolted together for extra strength when fitted to the door.
  • Architectural quality.
  • Designed for use on bathroom doors, WC's and toilet doors
  • Can also be used as a heavy duty security bolt for front and back doors when used in conjunction with the SDB5010EB key and escutcheon pack.


Operation

  • Deadbolt is locked and un-locked by using a bathroom thumbturn and emergency release set.

Features .

  • Solid brass deadbolt with anti-saw rollers.
  • Bolt through facility for bolt together fixing furniture with 38mm fixing centres.
  • 5mm x 5mm spindle follower (to suit standard UK size turn & release spindles).



Security Level

  • Medium security architectural range.
  • Suitable for use on internal doors in residential, commercial or public buildings.

Finish

  • Polished stainless stee - (shiny finish).



Alternative Finishes Available

  • Satin stainless steel.
  • PVD brass.
  • Florentine bronze.

Dimensions

Diagram and dimensions of a easi-t mortice deadbolt
Item CodeCase Depth (A)Backset To Follower (B)
20860.4 64mm 44mm
20860.1 76mm 57mm
20860.2 102mm 82mm
20860.3 125mm 108mm

Standards This Product Conforms To

  • Lock case tested and passed to BS EN 12209. The British / European standard requirements and test methods covering locks and latches. Classification number - 3H810F-BG00.
  • Tested and passed to BS EN 1634 the British / European standard for determining the fire resistance of door and shutter assemblies including hardware. Assessed for use on 30 minute and 1 hour timber fire doors FD30 / FD60.- Intumescent lock case liners required (sold separately).
  • Certifire approved.
  • CE Marked.
  • Declaration of performance (DoP) - please see the additional information tab to download the certificate.

Options Available To Order

  • This dead bolt is also available to order with radius (rounded shape) forend and receiver plates. Please contact us for lead times and prices.
  • Intumescent sheets and lock case liners are available. Please see our intumescent fire rated products category for details.



Rebate Kit For Double Rebated Doors

  • No rebate kit available to suit this dead bolt.


Unit Of Sale

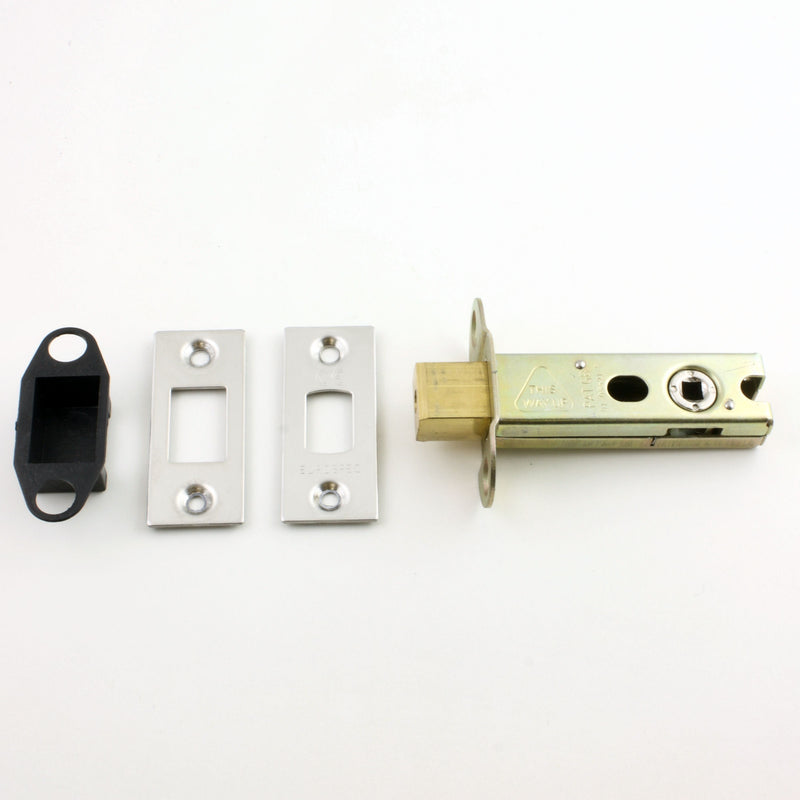

  • Each - (1 x dead bolt supplied with forend, receiver plate and plastic back box).
More Information
Item 20860
Item Code 20860
Finish Polished Stainless Steel - (Shiny Finish)
Dimensions 64mm, 76mm, 102mm or 125mm Case Depth
Sold Per Each
Availability Stock Item
Download PDF Data Sheet
