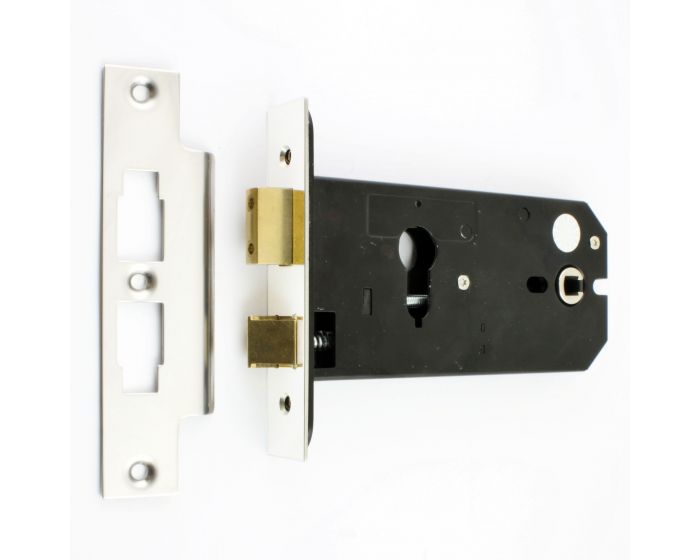

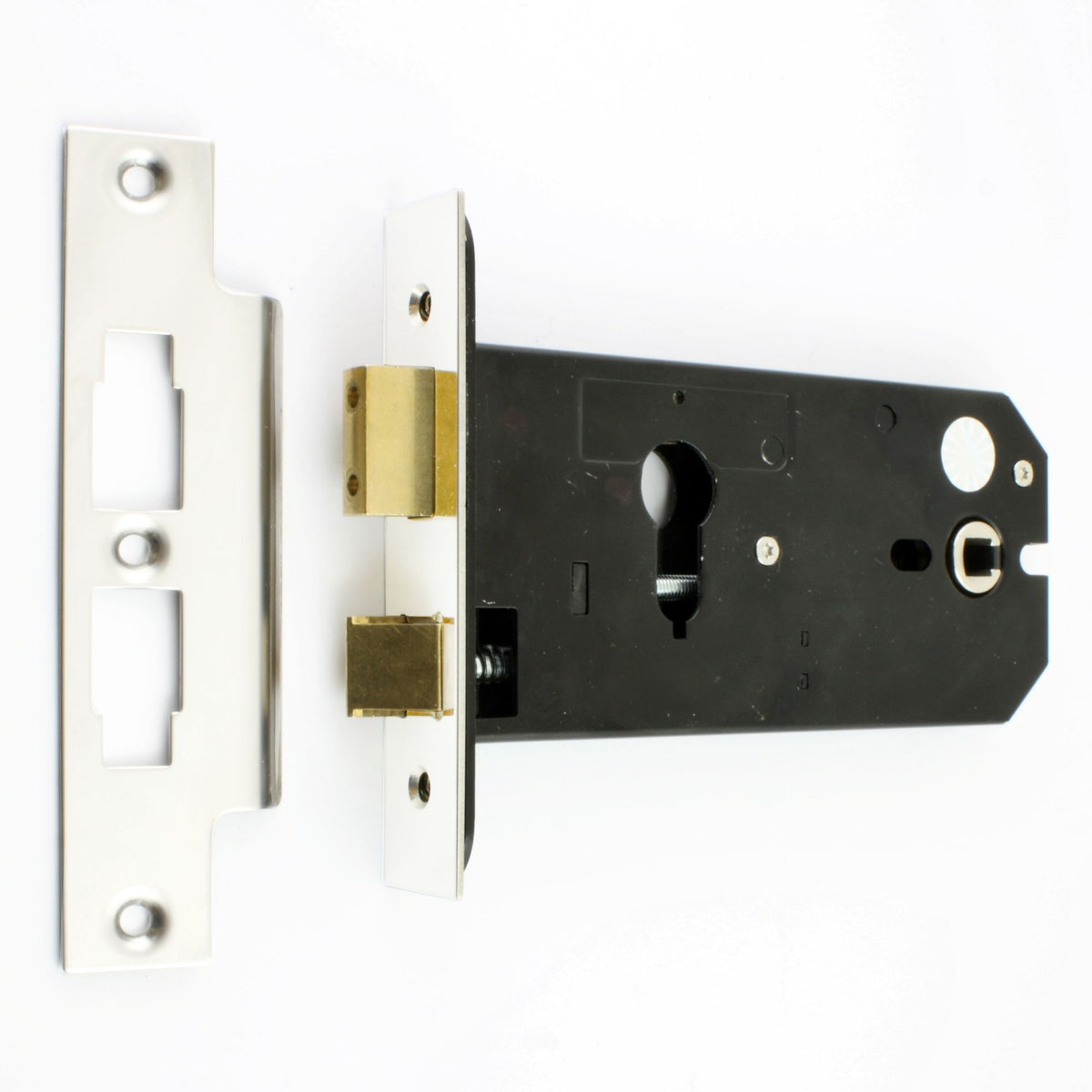

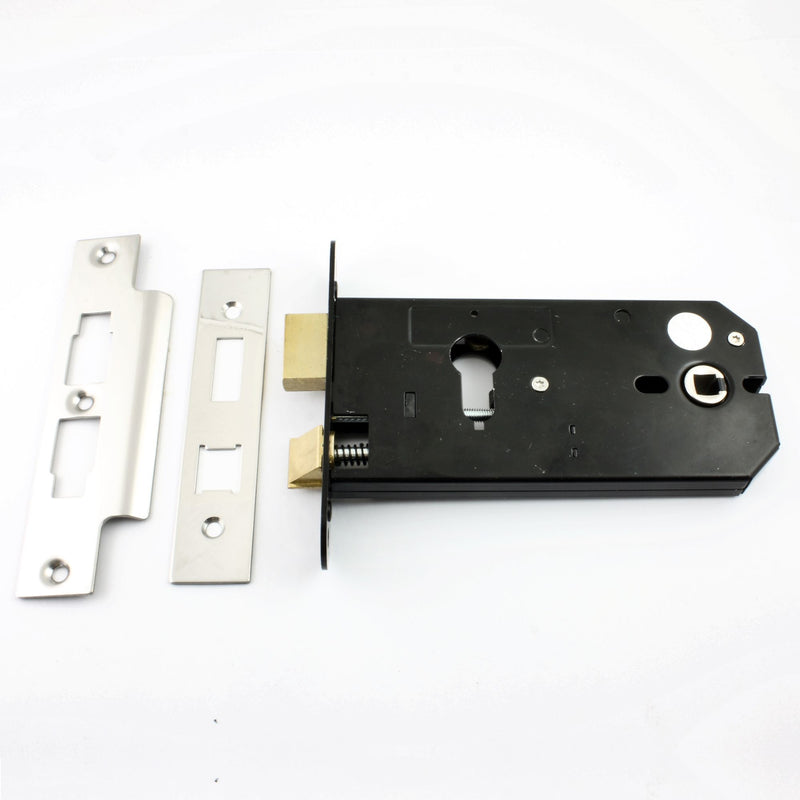

Horizontal Euro Profile Mortice Sash Lock - 152mm Case Depth - Polished Stainless Steel

Catalogue Number:
40746
Full Description
Product Name Price Qty
40746.1 - Horizontal Euro Profile Mortice Sash Lock - Polished Stainless Steel - 152mm Case Depth (127mm Backset) - Each
£38.69 £32.24

Per Each
  • Horizontal Euro profile mortice sash lock case.
  • Supplied with shiny finish polished stainless steel forend and strike plates.
  • Large style lock case 152mm (6 inches) deep.
  • Traditional horizontal style is ideal for mortice knobs as it places the knobs far away from the door frame.
  • For use on doors that require door handles and need to be locked via a Euro profile cylinder.
  • Must be used in conjunction with some form of door handle and Euro cylinder.
  • Horizontal locks were a traditional lock often found in period properties.
  • Cylinder hole is located to the side of door knobs rather than underneath.
  • Bolt through lock (38mm bolt holes) to suit bolt together handles and mortice knobs.


Operation

  • Latch is withdrawn via a mortice door knob or lever handle from either side of the door (handles sold separately).
  • Two way action allows un-sprung door knobs to be turned either way to withdraw the latch mechanism and open the door.
  • Deadbolt is locked and un-locked via a Euro profile cylinder (sold separately).

Features

  • Light to medium weight springing makes this lock ideal for use with door knobs.
  • Two way action allows door knobs to be turned in both directions.
  • Solid brass guided latch.
  • Solid brass deadbolt with anti-saw rollers.
  • Bolt through facility for bolt together fixing lever handles and accessories at 38mm centres.
  • 8mm x 8mm spindle follower (to suit standard UK size spindles).
  • Latch can be reversed on site.
  • Reversible frame mounted strike plate.



Security Level

  • Medium security architectural range.
  • Suitable for use on internal doors in residential or light commercial buildings.

Finish

  • Polished stainless steel.



Alternative Finishes Available

  • PVD brass.
  • Satin stainless steel.

Dimensions

Diagram and dimensions of horizontal euro profile sash lock case

Available in one case size only.

  40746.1
Dimension On Diagram
Overall Case Depth
152mm
A
Backset (Distance To Centre Of Spindle Hole)
127mm
B
Backset (Distance To Centre Of Key Hole)
50mm
C
Case Height
70mm
D
Forend - Height x Width
120mm x 25mm
E
Strike Plate - Height x Width
140mm x 25mm
F

Options Available To Order

  • Intumescent sheets and lock case liners are available. Please see our intumescent fire rated products category for details.



Rebate Kit For Double Rebated Doors

  • 40831.1 - 13mm satin stainless steel rebate kit for use with the Zoo Hardware horizontal mortice locks.
  • Please note the above rebate kit is a satin (brushed) stainless steel finish.


Unit Of Sale

  • Each - (1 x lock case supplied with forend and strike plate).
More Information
Item 40746
Item Code 40746
Finish Polished Stainless Steel
Dimensions 152mm Case Depth
Sold Per Each
Availability Stock item - please allow 1-3 days for delivery
Stock item - please allow 1-3 days for delivery
