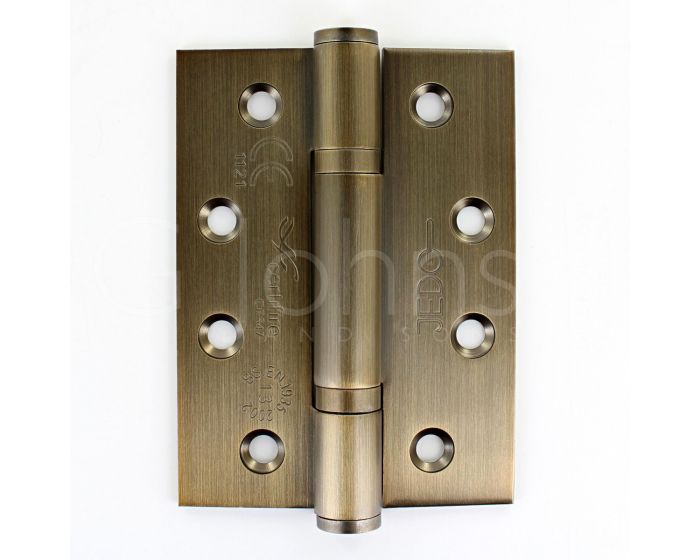

Polymer Bearing Grade 13 Hinges - CE / UKCA Marked - Fired Rated - Certifire Approved - 120kg Weight Limit - 102mm x 76mm - Antique Brass (Lacquered)

Catalogue Number:
48341
Full Description Related Products
Product Name Price Qty
48341.1 - Polymer Bearing Grade 13 Hinges - CE / UKCA Marked - Fired Rated - Certifire Approved - 120kg Weight Limit - 102mm x 76mm - Antique Brass (Lacquered) - Pair
£14.90 £12.42

Per Pair
Out of stock
Enquire Now
  • Grade 13 polymer bearing antique brass hinges.
  • Fire rated, CE Marked / UKCA Marked and Certifire approved
  • Tested and passed to British standard EN.1935 2002 overall grade 13.
  • Tested to grade 7 door mass suitable for doors up to 120kg in weight.
  • The bearing avoid metal to metal movement by using polymer bushes in the knuckle, impregnated with a specially formulated lubricant, This construction eliminates the wear and regular maintenance required by other types of hinge.


Dimensions

Grade 13 Polymer Bearing Hinges - Dimensions Diagram
  48341.1
Dimension On Diagram
Height (H)
102mm
A
Width (W)
76mm
B
Leaf Width
30mm
C
Thickness
3mm
N/A



Base Material

  • Stainless steel

Finish

  • Antique brass

Standards This Product Conforms To

  • Tested and passed to BS EN 1935* the British / European standard requirements and testing methods covering single axis hinges. Classification number - 4-7-7-1-1-4-0-14.
  • *To meet this standard 2mm thick intumescent liners should be fitted behind each leaf of the hinge.
  • Tested and passed to BS EN 1634 the British / European standard for determining the fire resistance of door and shutter assemblies including hardware. These hinges have been assessed for use on 30 minute and 1 hour timber fire doors FD30 / FD60.
  • CE Marked / UKCA Marked
  • Certifire approved

Classification Details

  • Durability grade 7 - tested to 200,000 opening & closing cycles
  • Test door mass grade 7 - suitable for use on doors up to 120kg in weight
  • Corrosion resistance grade 4 - high resistance to corrosion in accordance to EN 1670
  • Overall hinge grade 13

Usage

  • Suitable for use 44mm and 54mm thick wooden doors
  • To pass fire regulations three hinges must be fitted per door (pair and a half).

Unit Of Sale

  • Sold and priced in pairs (2 hinges) supplied with fixing screws.
More Information
Item 48341
Item Code 48341
Finish Antique Brass (Lacquered)
Dimensions 102mm x 76mm
Fire Rated FD30 / FD60 - Fire Rated
Sold Per Pair - (2 Hinges)
Availability Stock item - please allow 1-3 days for delivery

Stock item - please allow 1-3 days for delivery

Download PDF Data Sheet
